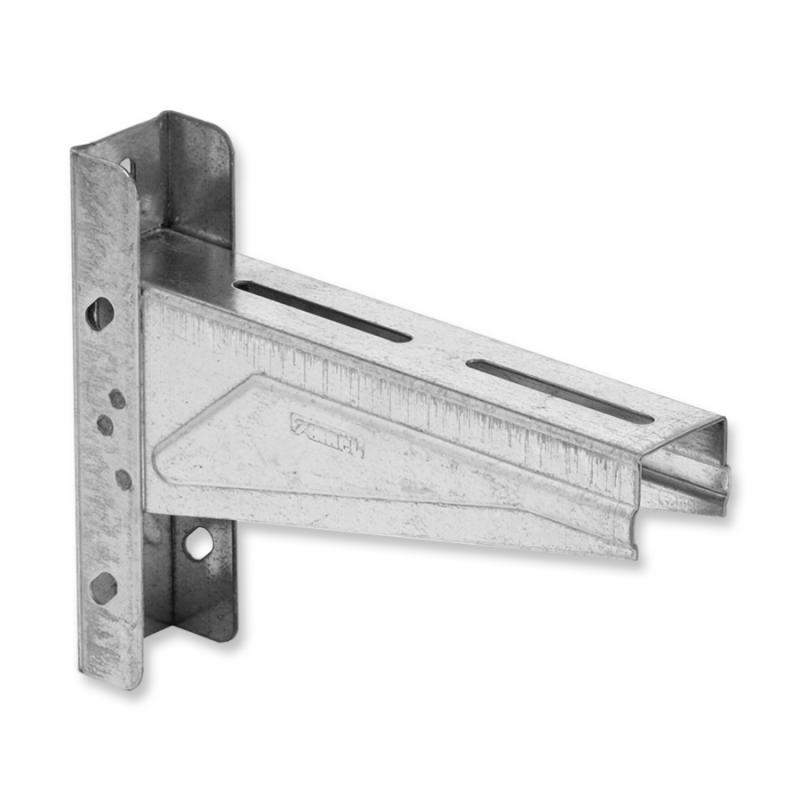

Wall or upright bracket

For highway and railway applications use:
- Aisi 304 - 316L stainless steel (treatment indicated as 40 - 41)

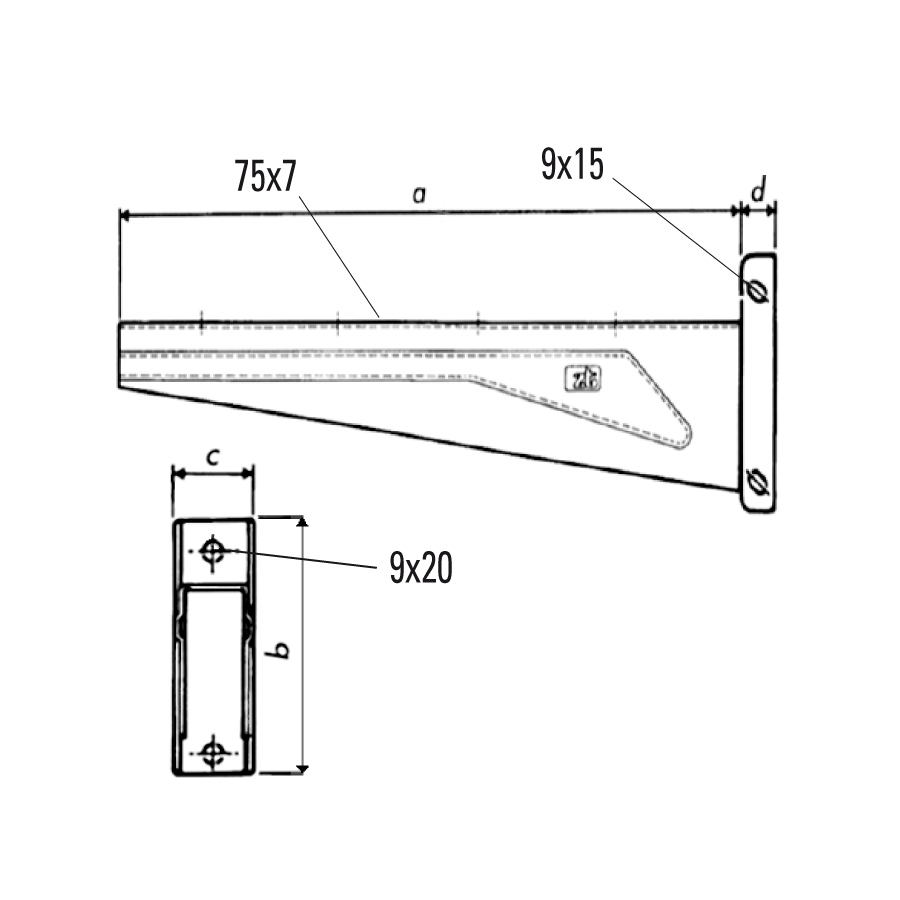

Dimension					Thickness	Weight	Technical Info							Code

W (B)					[mm]	[Kg]	a	w (b)	c	d	*SWL (Nm)	**SWL (N)	Bracket base slot spacing

150	01	03	40	41	1,50	0,66	160	190	49	32	120	690	150	T0 330 0015
200	01	03	40	41	1,50	0,76	210	190	49	32	120	1040	150	T0 330 0020
300	01	03	40	41	1,50	0,95	310	190	49	32	120	1560	150	T0 330 0030
400	01	03	40	41	1,50	1,14	410	190	49	32	120	2080	150	T0 330 0040
500	01	03	40	41	2,00	1,68	510	190	49	32	120	2610	150	T0 330 0050
600	01	03	40	41	2,00	1,93	610	190	49	32	120	3130	150	T0 330 0060

SWL Safe Working Load
** Safe Working Load of the supporting bracket:
(F according to the paragraph 10.8.1 of the standard EN 61537:2007, verified with the test configuration shown in figure 6b)

* Bending moment of the pendant bracket at the supporting bracket:

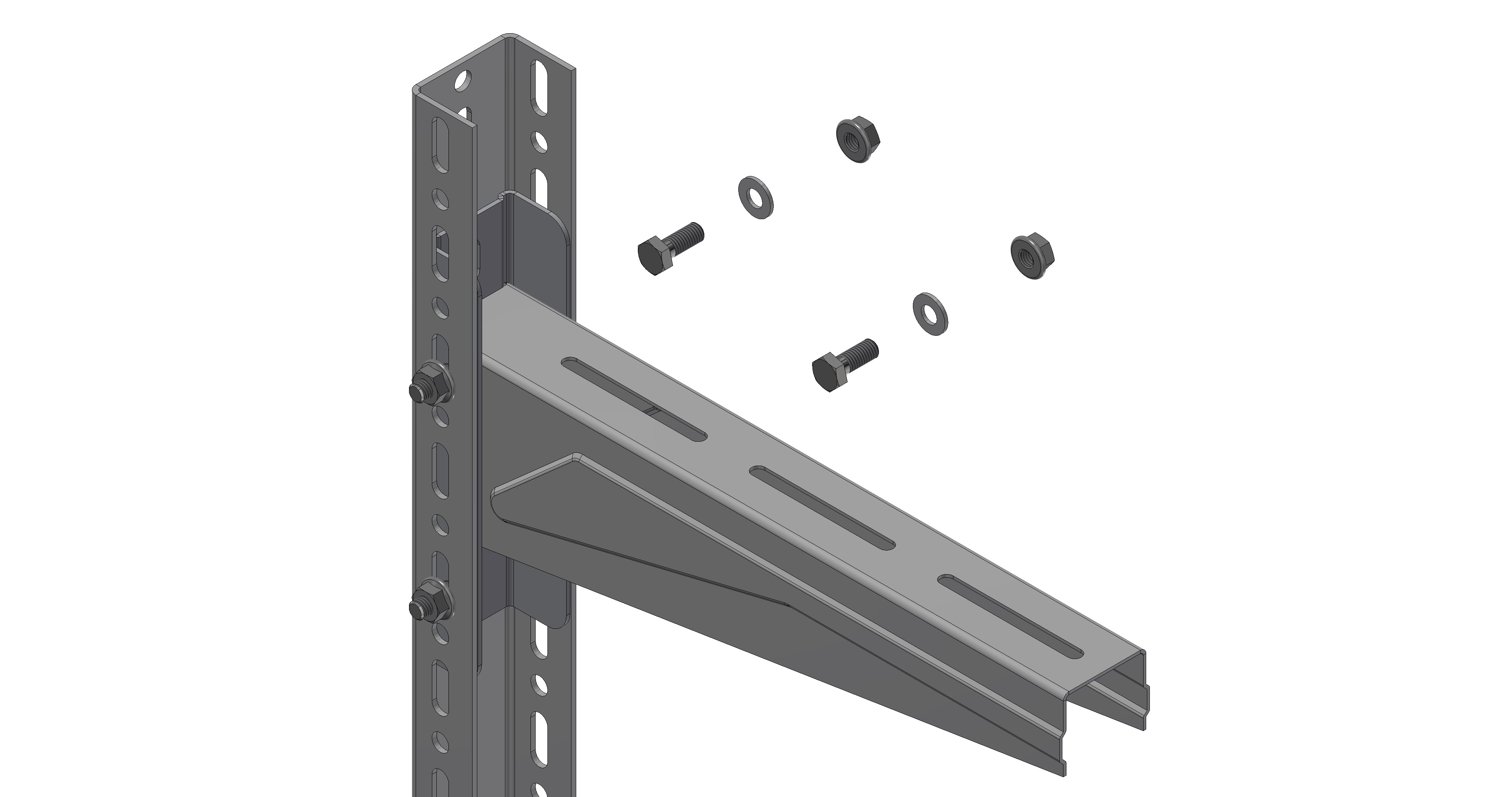

(When it is mounted on the high load capacity section item no. T0 042 2000 and in such a way that the distance between the ladder supporting surface and the anchoring surface is not less than 200 mm)

List of Coatings

	01	Galvanization (Sendzimir method) - UNI EN 10346
	03	Hot dip galvanizing - UNI EN ISO 1461
	40	Stainless steel AISI 304 - UNI EN 10088
	41	Stainless steel AISI 316L - UNI EN 10088
