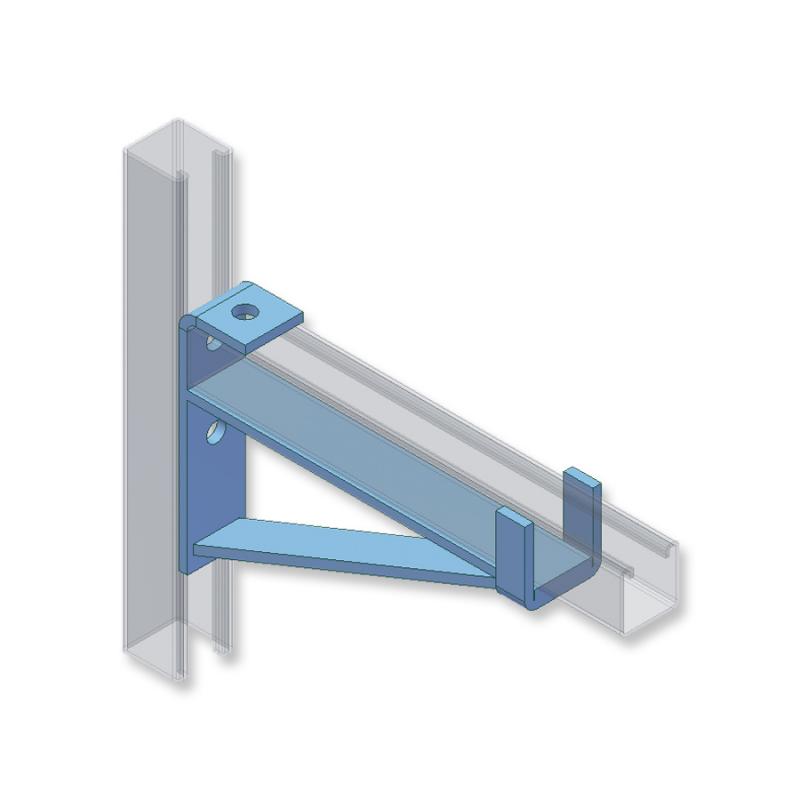

Section Bracket

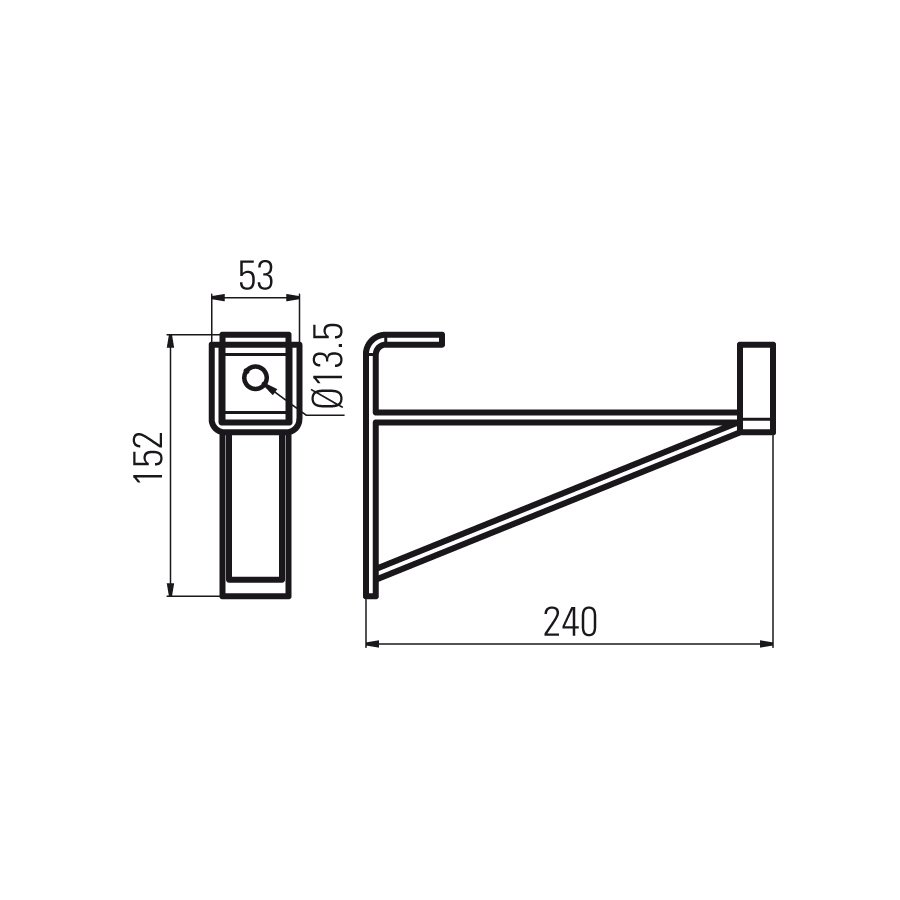

Dimension brush Thickness Weight Holes Code
L [mm] [Kg] Ø
152 x 240 6,00 1,06 13,5 F0 786 0000
List of Coatings
brush
03 Hot dip galvanizing - UNI EN ISO 1461

Capacity load for bracket F0 786

L P [N]
310 485
410 365
510 295
610 245

Safety coefficient for brackets: 2,5

Section Bracket
