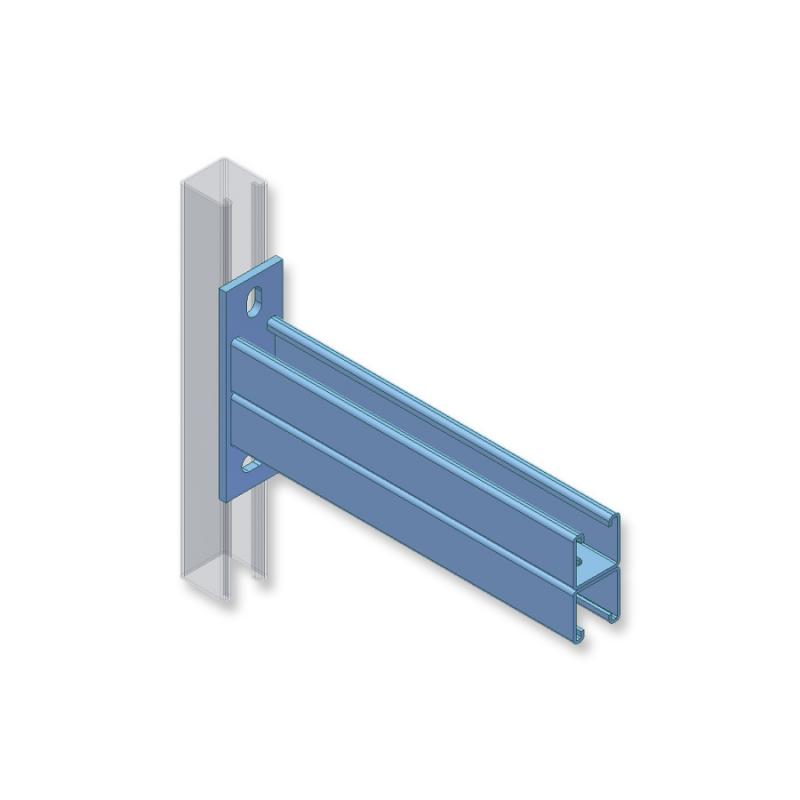

Double section bracket

For highway and railway applications use:
- Aisi 304 - 316L stainless steel (treatment indicated as 40 - 41)

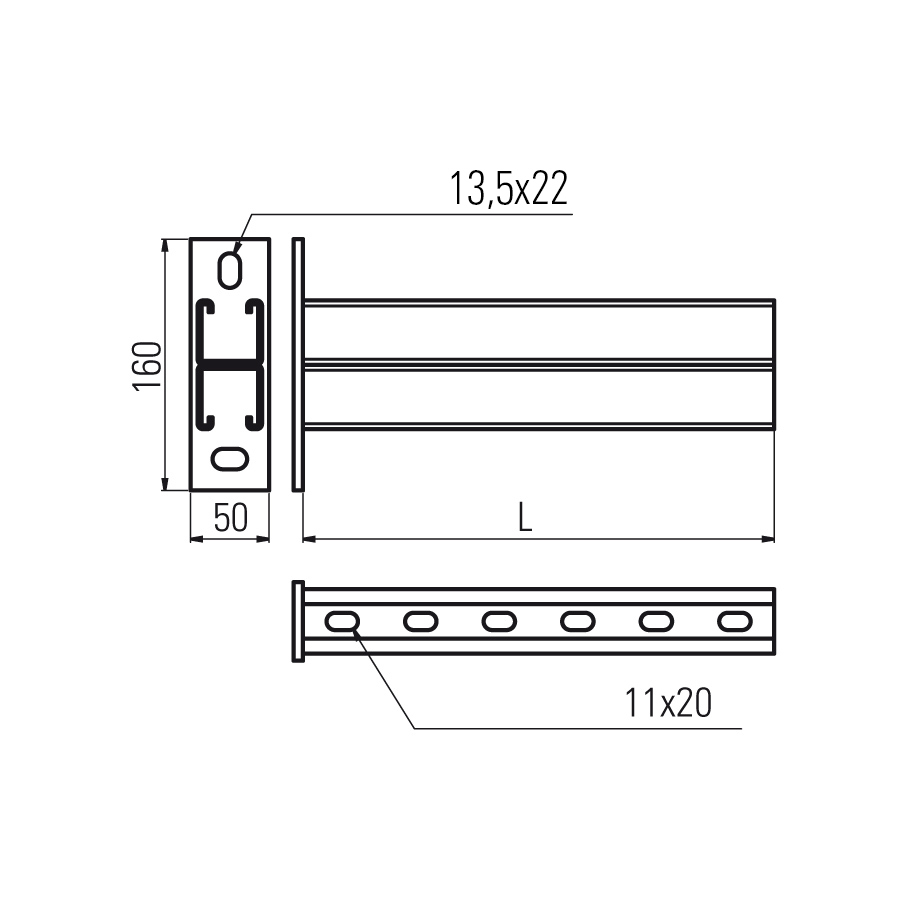

Dimension brush Plate th Weight Stainless Steel Th Capacity Th.2,5 Th. Capacity Th.2,5 Code
W cable tray L (*) [mm] [Kg] [mm] [Kg] [mm] [Kg]
300 350 8,0 2,02 2,00 85 2,50 101 F0 776 0030
400 450 8,0 2,53 2,00 64 2,50 76 F0 776 0040
500 550 8,0 3,05 2,00 51 2,50 61 F0 776 0050
600 650 8,0 3,58 2,00 43 2,50 51 F0 776 0060
700 750 8,0 4,10 2,00 36 2,50 43 F0 776 0070
800 850 8,0 4,62 2,00 32 2,50 38 F0 776 0080

L (*): approximate dimensions

Bolts recommended for assembly on section bars:
- M10 o M12 (F0 806 + T0 623 + T0 650)
- M10 o M12 (F0 816 + T0 624)

List of Coatings
brush
03 Hot dip galvanizing - UNI EN ISO 1461
25 Electrogalvanization - DIN 50962
40 Stainless steel AISI 304 - UNI EN 10088
41 Stainless steel AISI 316L - UNI EN 10088

Safety coefficient for brackets: 2,5

Double section bracket
