Zamet - ZT - T0 366 - Ceiling Bracket

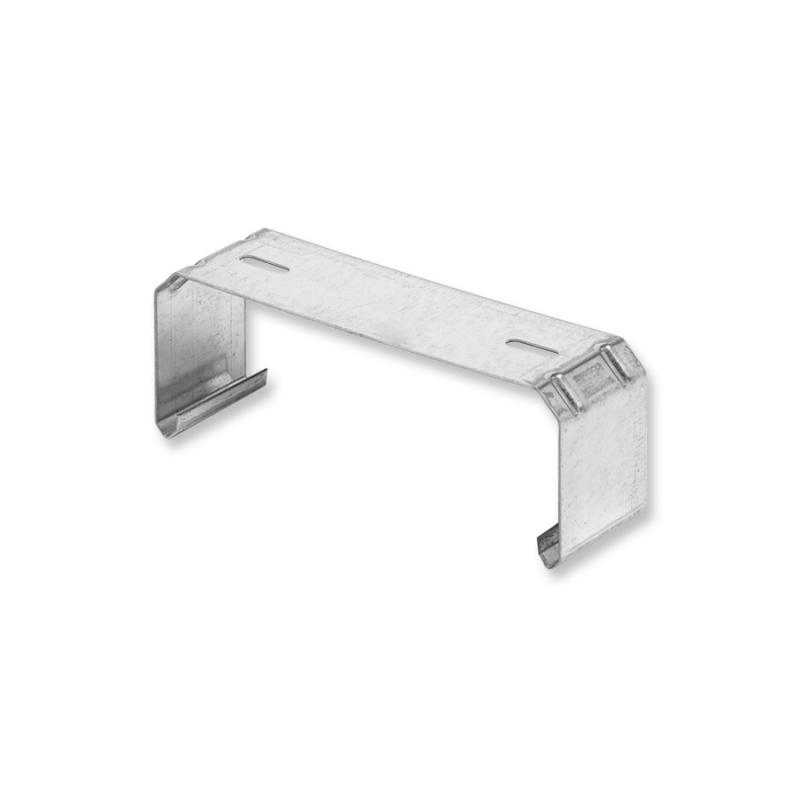

Ceiling Bracket

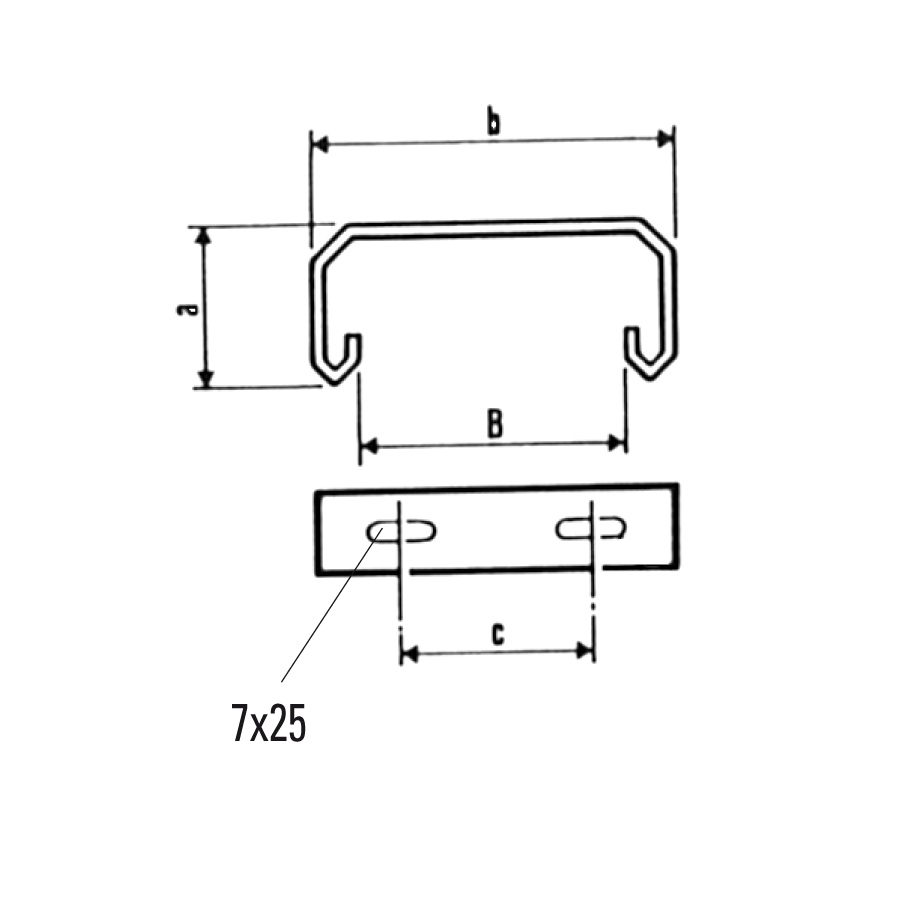

Dimension			Thickness	Weight	Technical Info				Code

W (B)			[mm]	[Kg]	a	w (b)	c	** SWL (N)

75	01	40	1,50	0,18	80	88		200	T0 366 0008
100	01	40	1,50	0,20	80	113	40	300	T0 366 0010
150	01	40	1,50	0,24	80	163	90	440	T0 366 0015
200	01	40	1,50	0,27	80	213	140	610	T0 366 0020
300	01	40	1,50	0,34	80	313	240	720	T0 366 0030

SWL Safe Working Load
**Tensile strength of the pendant bracket:
(F according to the paragraph 10.8.2.2 of the standard EN 61537:2007, verified with the test configuration shown in figure 7b carried out on the item equipped with a slotted “C” section item no. T0 041 2000 0.8 m long)

List of Coatings
