SWL Safe Working Load
** Bending moment of the pendant bracket at the supporting bracket:
4) - (M2 according to the paragraph 10.8.2.3 of the standard EN 61537:2007, verified with test configuration shown in figure 7c carried out on the item equipped with a slotted “C” section item no. T0 041 2000 and in such way that the distance between the ladder supporting surface and the anchoring surface is not less than 200 mm)
5) - (M2 according to the paragraph 10.8.2.3 of the standard EN 61537:2007, verified with the test configuration shown in figure 7c carried out on the item mounted on a stirrup bracket item no. T0 360 0000 01 (possibly connected to slotted “C” section item T0 041 2000) and in such a way that the distance between the ladder supporting surface and the anchoring surface is not less than 500 mm)
| 01 | Galvanization (Sendzimir method) - UNI EN 10346 | |
| 40 | Stainless steel AISI 304 - UNI EN 10088 |
| Certified System |
EN 61537-1 ed.2007
EN 50085-1:2005 ed EN 50085-2-1:2006
IMQ
 |

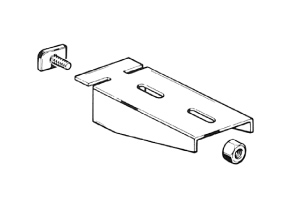

n. 1 M8 | T0 625 0000 |
Included
For mounting the trunking:
M6x10/M6x12 - T0 620 0610 / T0 620 0612
M6 - T0 621 0600
