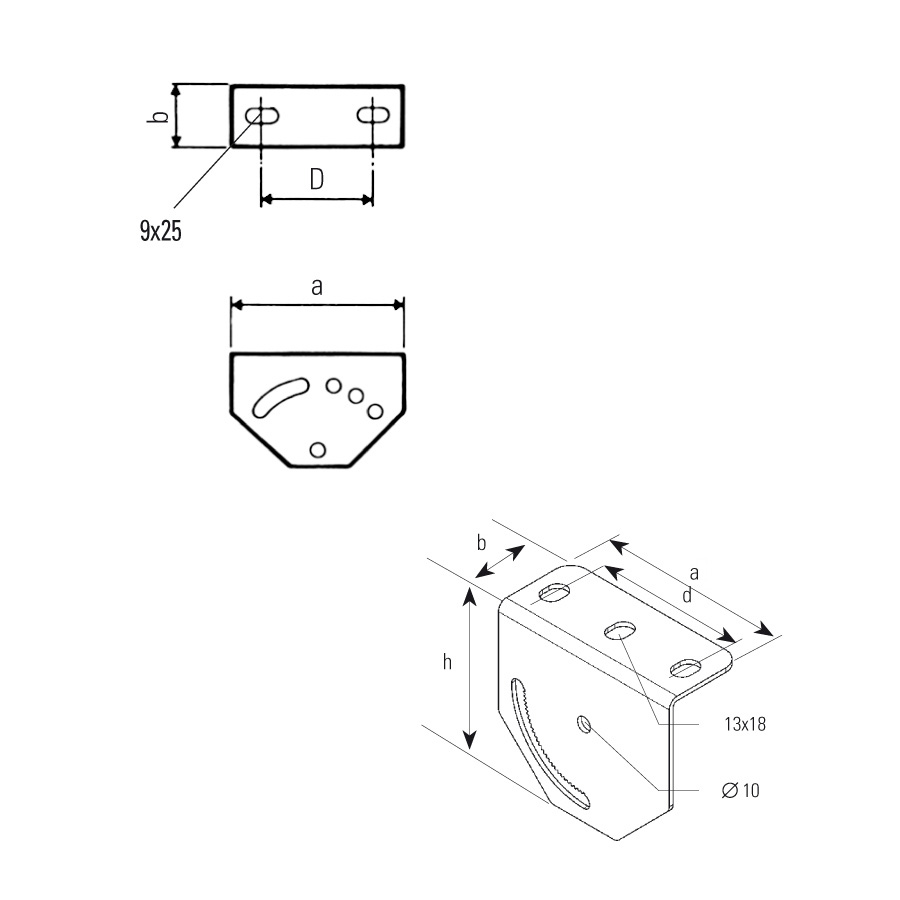

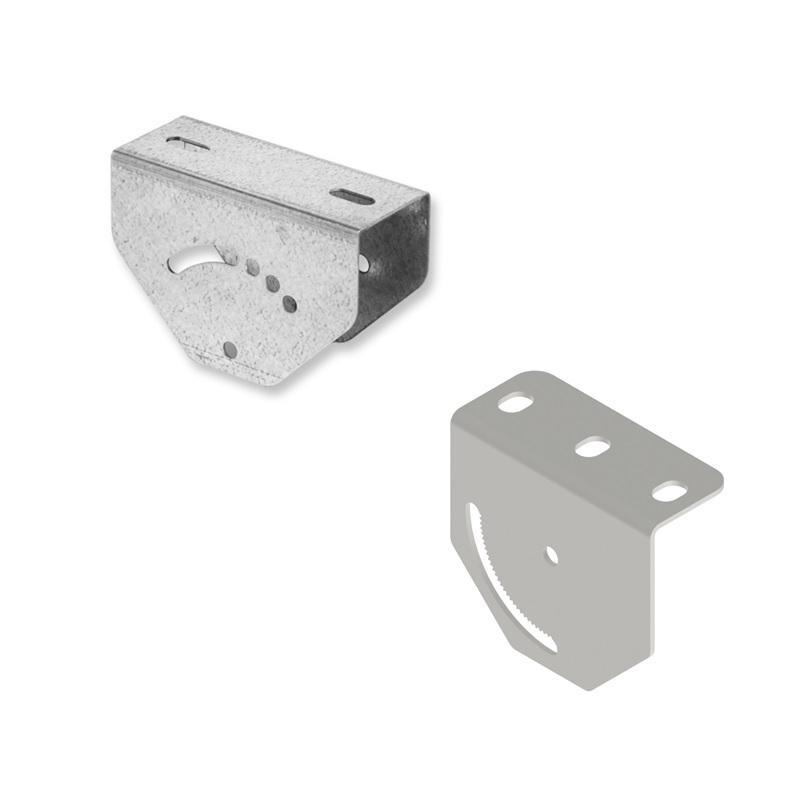

T0 304 0000 - Variable angle ceiling support
T0 304 0202 - Variable angle “L” ceiling support
For highway and railway applications use: Aisi 304 - 316L stainless steel (treatment indicated as 40 - 41)
 |
Code | ||||||
|---|---|---|---|---|---|---|---|
| T0 304 0000 | |||||||
| T0 304 0202 | |||||||
SWL Safe Working Load:
* Bending moment of the pendant bracket at the ceiling plate
(M1 according to the paragraph 10.8.2.1 of the standard EN 61537:2007, verified with the test configuration shown in figure 7a carried out on the item equipped with a high load capacity section item no. T0 042 2000 0.8 m long)
**Tensile strength of the pendant bracket:
(F according to the paragraph 10.8.2.2 of the standard EN 61537:2007, verified with the test configuration shown in figure 7b carried out on the item equipped with a high load capacity section item no. T0 042 2000 0.8 m long)
| 01 | Galvanization (Sendzimir method) - UNI EN 10346 | |
| 03 | Hot dip galvanizing - UNI EN ISO 1461 | |
| 40 | Stainless steel AISI 304 - UNI EN 10088 | |
| 41 | Stainless steel AISI 316L - UNI EN 10088 |
| Certified System |
EN 61537-1 ed.2007
EN 50085-1:2005 ed EN 50085-2-1:2006
IMQ
T0 304 0000

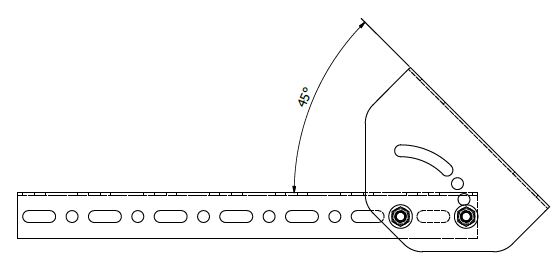

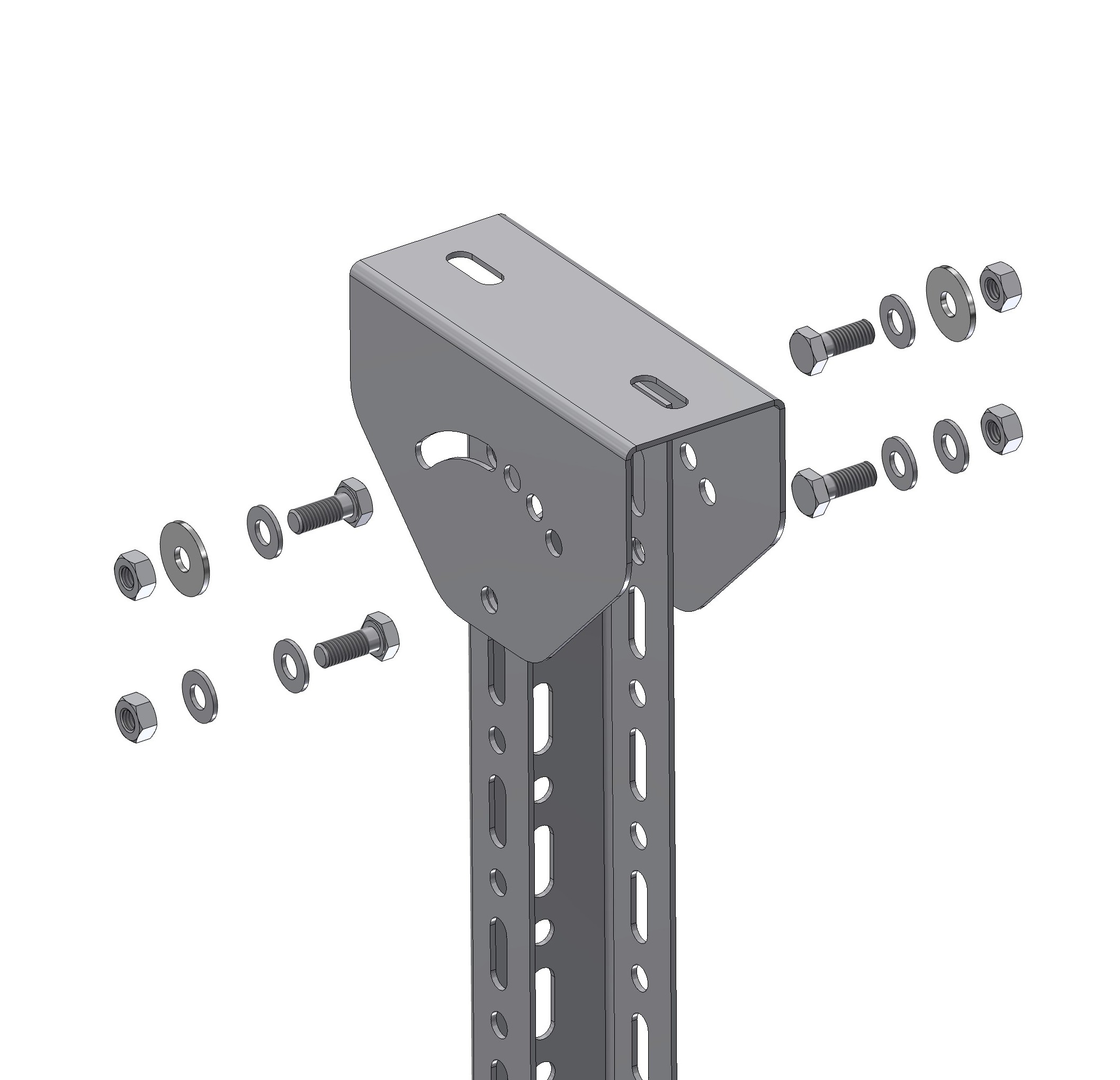

n.2 M8x70 T0 623 0870 + n.2 M8 T0 624 0800 + n.2 M8 T0 653 0800 + n.2 M8 T0 650 0800
or
n.4 M8x20 T0 623 0820 + n.4 M8 T0 624 0800 + n.2 M8 T0 653 0800 + n.6 M8 T0 650 0800
Not included
T0 304 0202

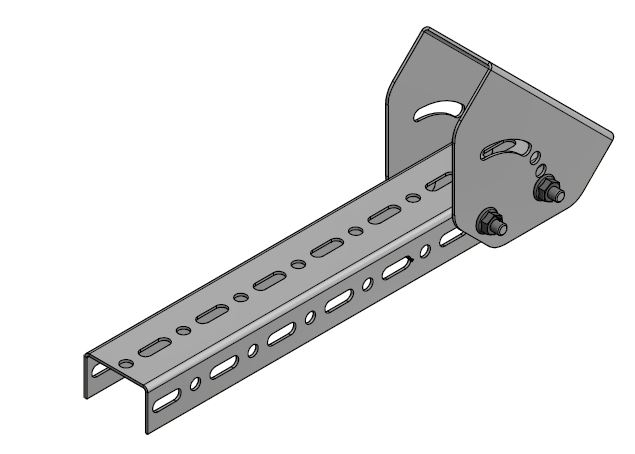

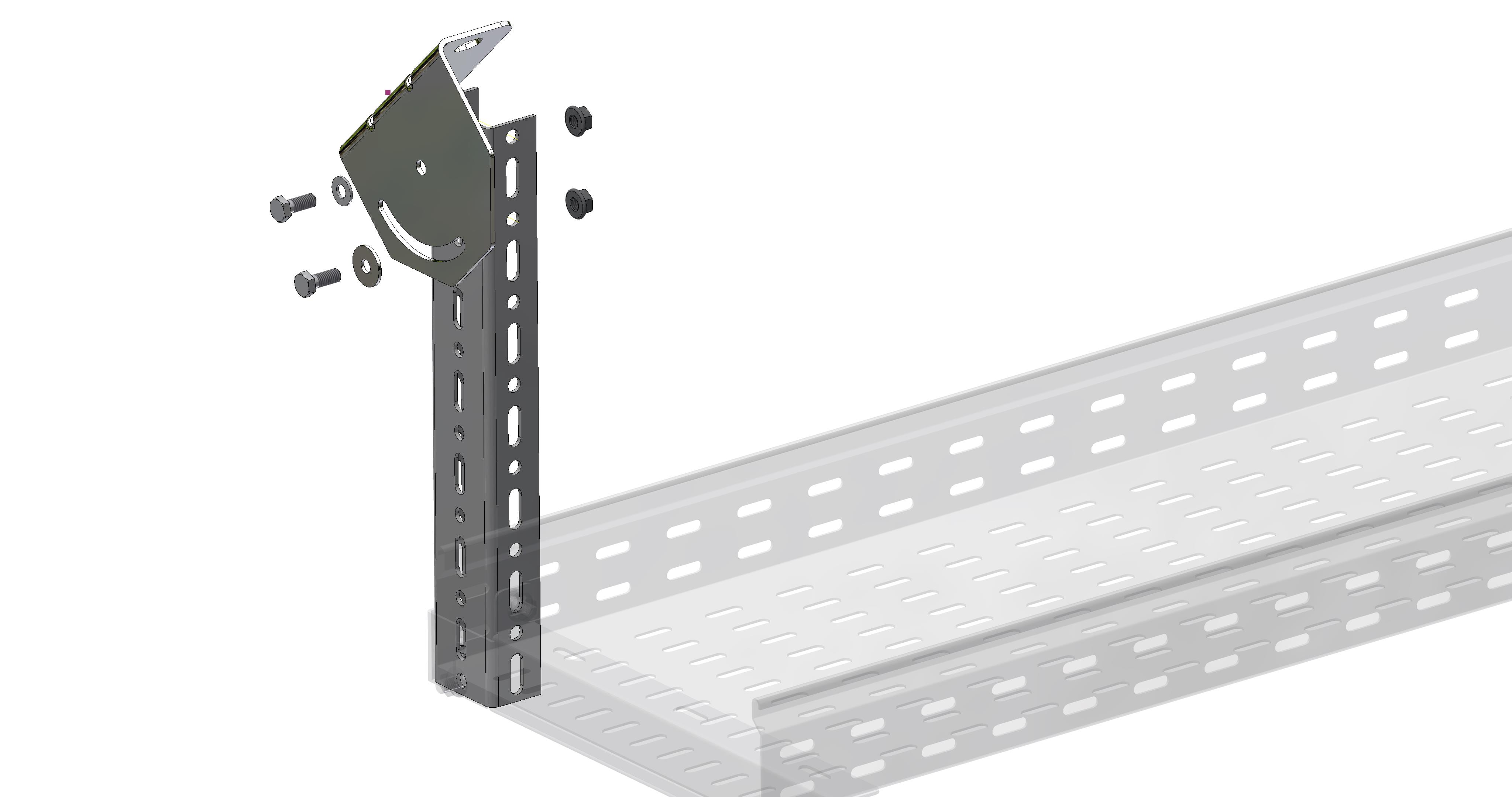

n.2 M8x20 T0 623 0820 + n.2 M8 T0 624 0800 + n.1 M8 T0 650 0800 + n.1 M8 T0 653 0800
Not included
T0 304 0000
n.4 M8x20 T0 623 0820 + n.4 M8 T0 621 0800 - with profile option T0 042
Not included
