For highway and railway applications use:
- Aisi 304 - 316L stainless steel (treatment indicated as 40 - 41)
SWL Safe Working Load
* Bending moment of the pendant bracket at the supporting bracket:
(When it is mounted on the threaded rod (diameter 20 mm) item no. R0 315 2000 in such a way that the distance between the ladder supporting surface and the anchoring surface is not less than 500 mm)
| 01 | Galvanization (Sendzimir method) - UNI EN 10346 | |
| 03 | Hot dip galvanizing - UNI EN ISO 1461 | |
| 40 | Stainless steel AISI 304 - UNI EN 10088 | |
| 41 | Stainless steel AISI 316L - UNI EN 10088 |
| Certified System |
EN 61537-1 ed.2007
EN 50085-1:2005 ed EN 50085-2-1:2006
IMQ
 |
Threaded bar Ø 20 - R0 315 2000 n.3 Hexagonal Nut Ø 20 - T0 624 2000 |
Not included
Structure bracket T0 310 0010 / T0 310 0015
Structure bracket T0 310 0020 / T0 310 0030

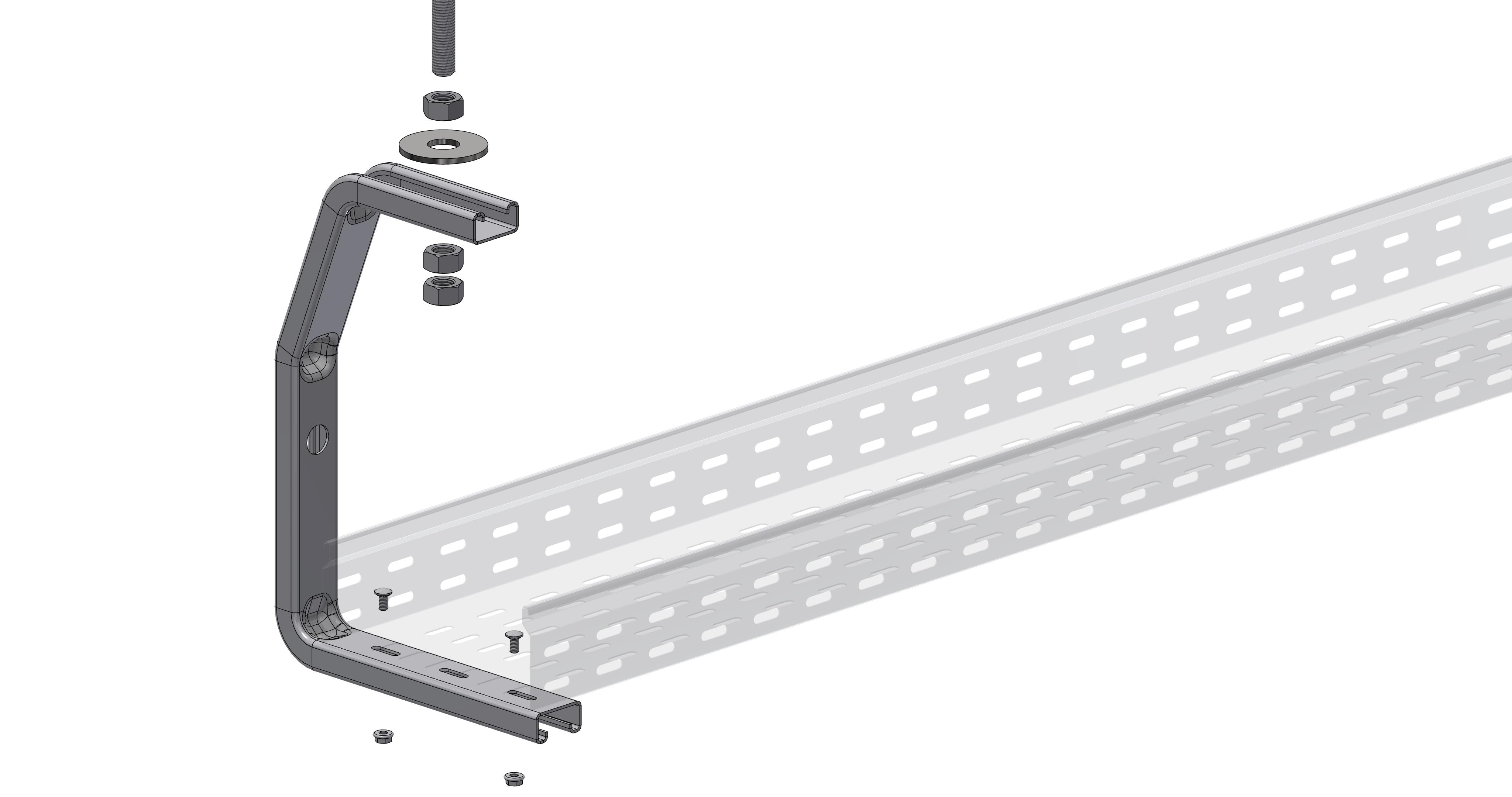

Version with clamp

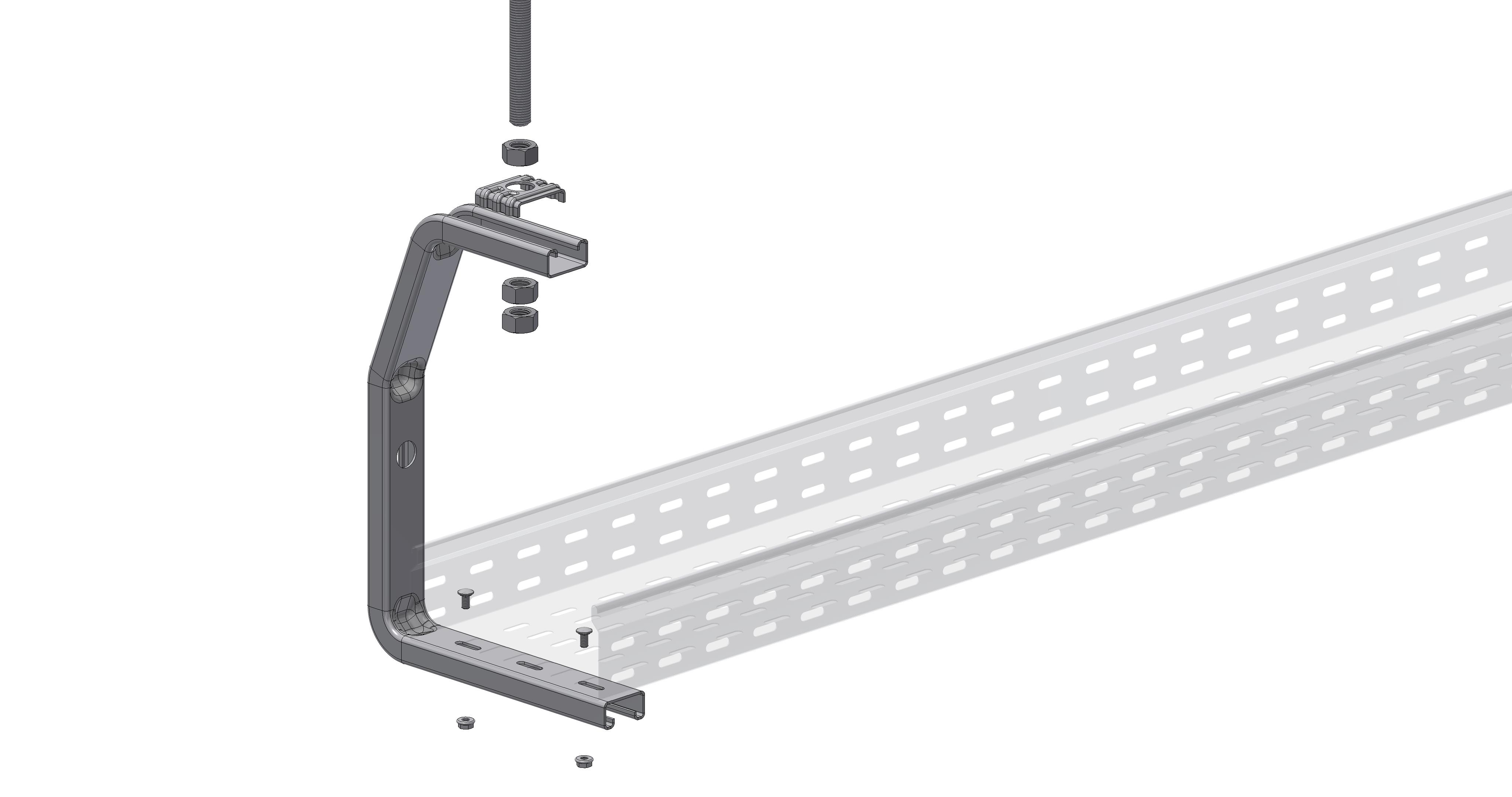

Version without clamp
| |
M6x10/M6x12 M6 |
T0 620 0610 01 / T0 620 0612 40 or 41 T0 621 0600 |
} |
For mounting the trunking |
Not included
