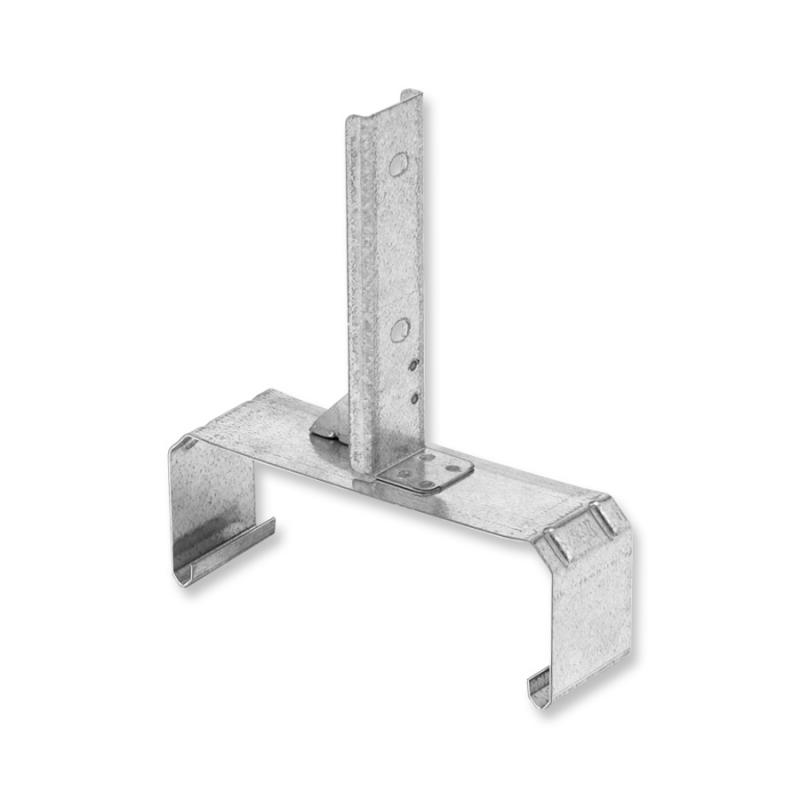

T ceiling bracket

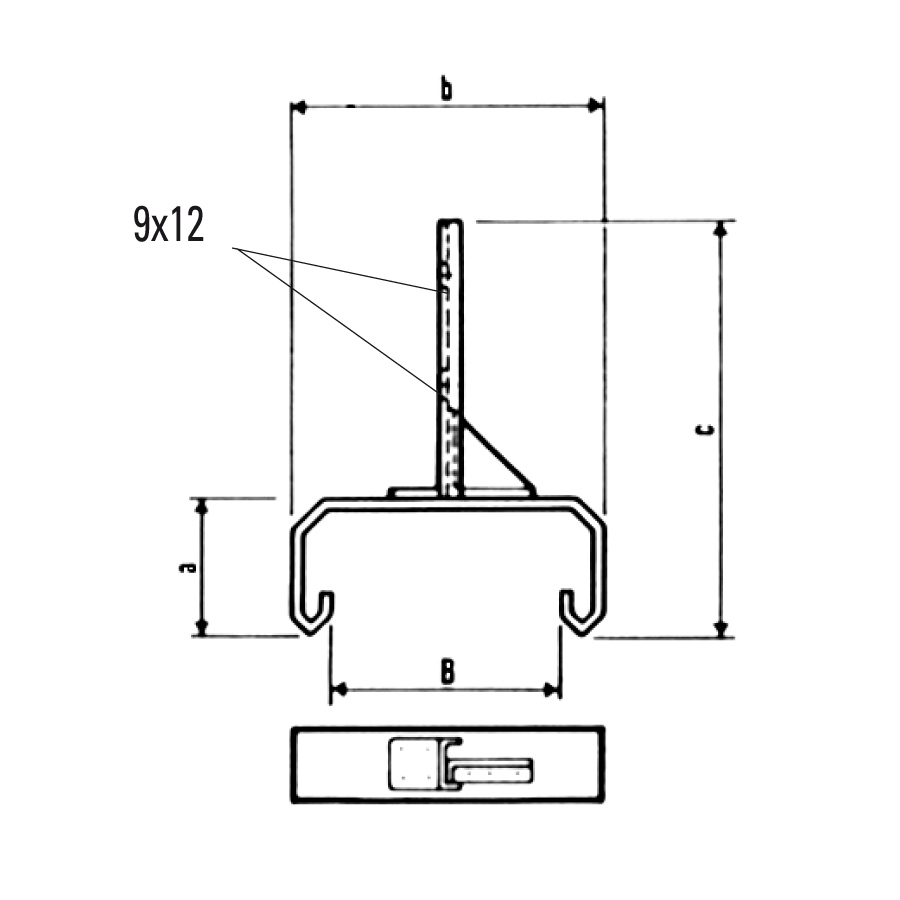

Dimension brush Thickness Weight Technical Info Code
W (B) [mm] [Kg] a w (b) c ** SWL (N)
75 1,50 0,38 80 88 250 200 T0 365 0008
100 1,50 0,39 80 113 250 310 T0 365 0010
150 1,50 0,43 80 163 250 450 T0 365 0015
200 1,50 0,46 80 213 250 620 T0 365 0020
300 1,50 0,53 80 313 250 735 T0 365 0030

SWL Safe Working Load
** SWL of the pendant bracket with bracket supported at the centre (N)

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
40 Stainless steel AISI 304 - UNI EN 10088
Certified System

EN 61537-1 ed.2007
EN 50085-1:2005 ed EN 50085-2-1:2006
IMQ

Assembly with T0 365 e T0 366
