Balance console for M10 threaded bar

For highway and railway applications use:
- Aisi 304 - 316L stainless steel (treatment indicated as 40 - 41)

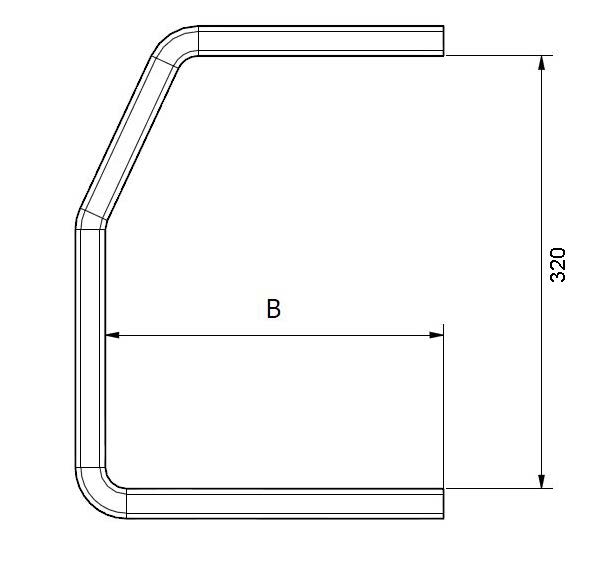

Dimension brush Thickness Weight Technical Info Code
W (B) [mm] [Kg] *SWL(Nm)
200 2,00 1.31 740 T0 321 0020
300 2,00 1,62 740 T0 321 0030

Compliant with EN 61537-1 ed.2007
Not UL certified

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
40 Stainless steel AISI 304 - UNI EN 10088
41 Stainless steel AISI 316L - UNI EN 10088

Assembly with:
M10 R0 315 1000 + n°4 T0 624 1000 + n°2 T0 650 1000
M20 R0 315 2000 + n°3
T0 624 2000

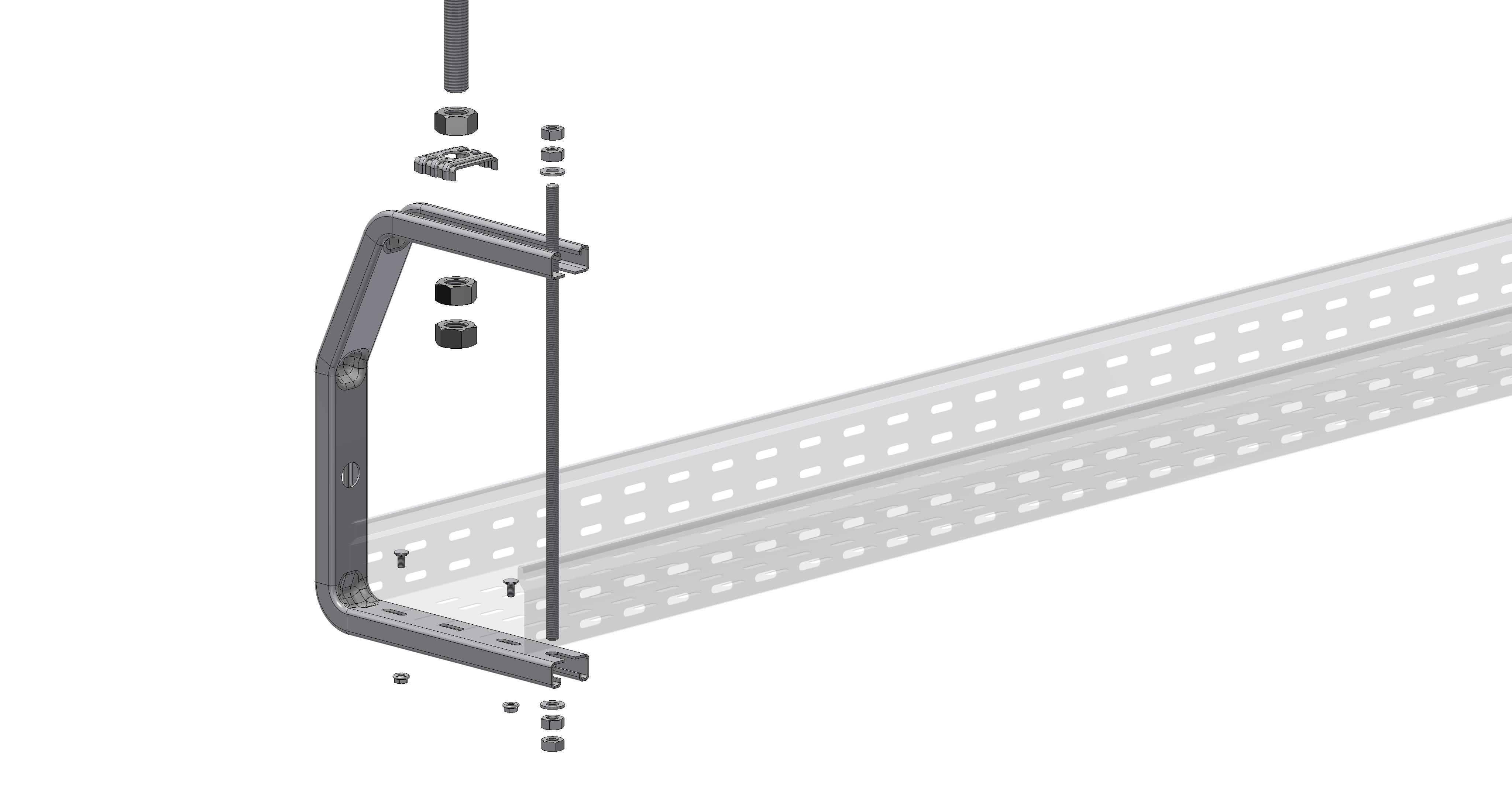

Version with jaw

Version without jaw

Balance console for M10 threaded bar
