“T” Junction descending with Cover

Cover with Winged locks

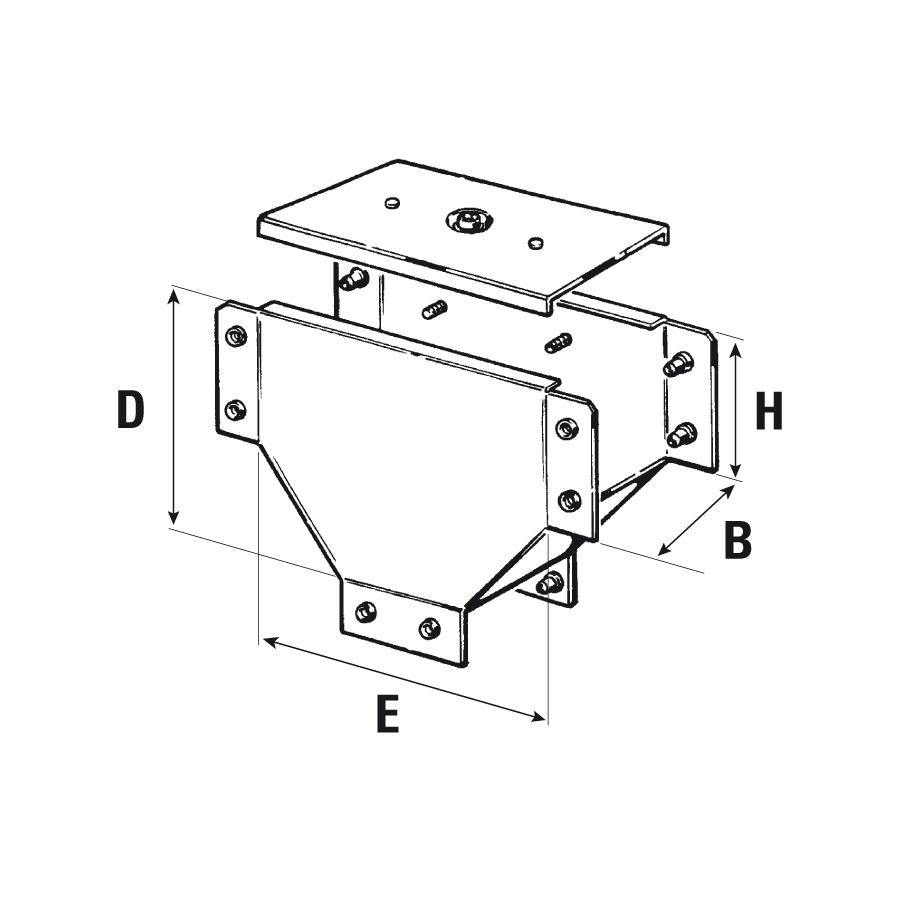

Dimension brush Thickness Technical Info Code
H W (B) [mm] d E No.of Inserts Ø6
50 50 1,20 86 121 6 M0 270 0505
75 75 1,20 129 182 6 M0 270 0707
100 100 1,20 173 243 12 M0 270 1010
100 100 2,00 173 243 12 M0 270 1010
100 150 1,50 203 304 12 M0 270 1015
100 150 2,00 203 304 12 M0 270 1015
100 200 1,50 203 304 12 M0 270 1020
100 200 2,00 203 304 12 M0 270 1020
100 300 1,50 203 304 16 M0 270 1030
100 300 2,00 203 304 16 M0 270 1030
100 400 2,00 203 304 16 M0 270 1040
100 500 2,00 203 304 16 M0 270 1050
100 600 2,00 203 304 16 M0 270 1060
150 300 2,00 253 354 16 M0 270 1530
150 400 2,00 253 354 16 M0 270 1540
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
20 Sendzimir galvanized 20/10 trampling
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

Skewed Elbows

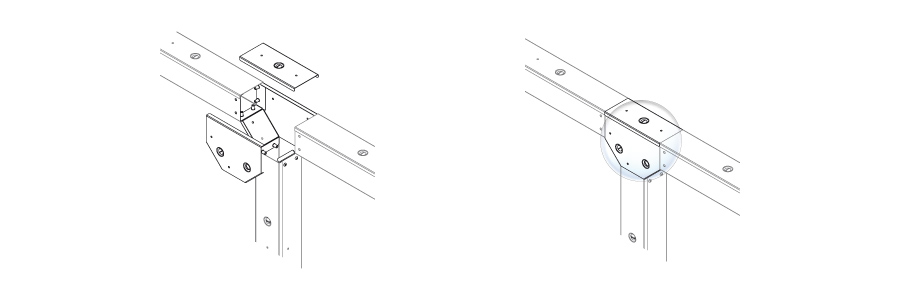

This particular junction allows descent or rise maintaining, unlike standard elbows and connectors, the possibility to open and check the system by the operator.
It is useful and absolutely necessary for skewing along the system.

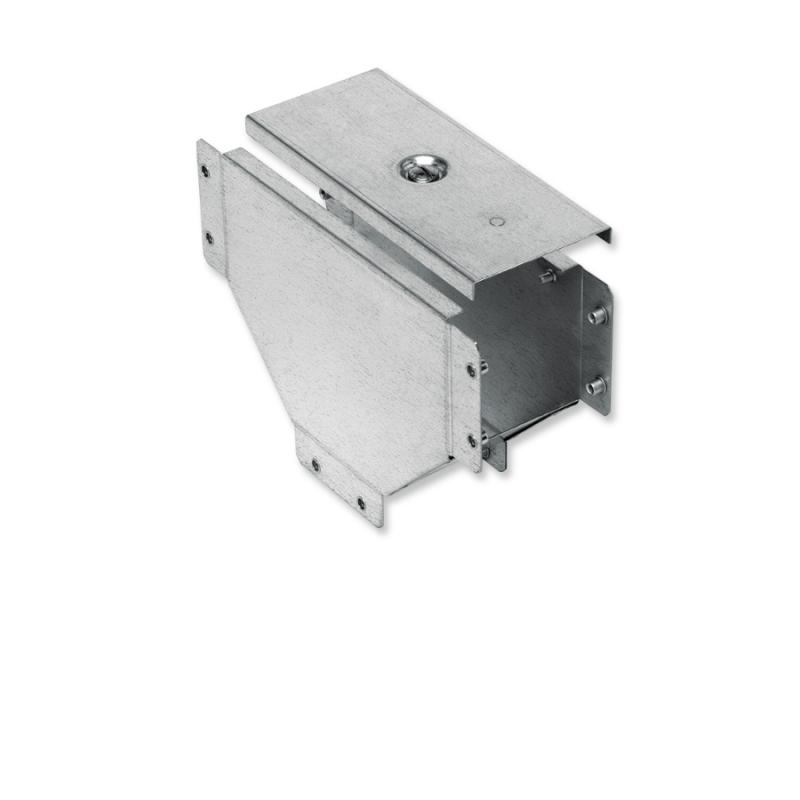

“T” Junction descending with Cover
