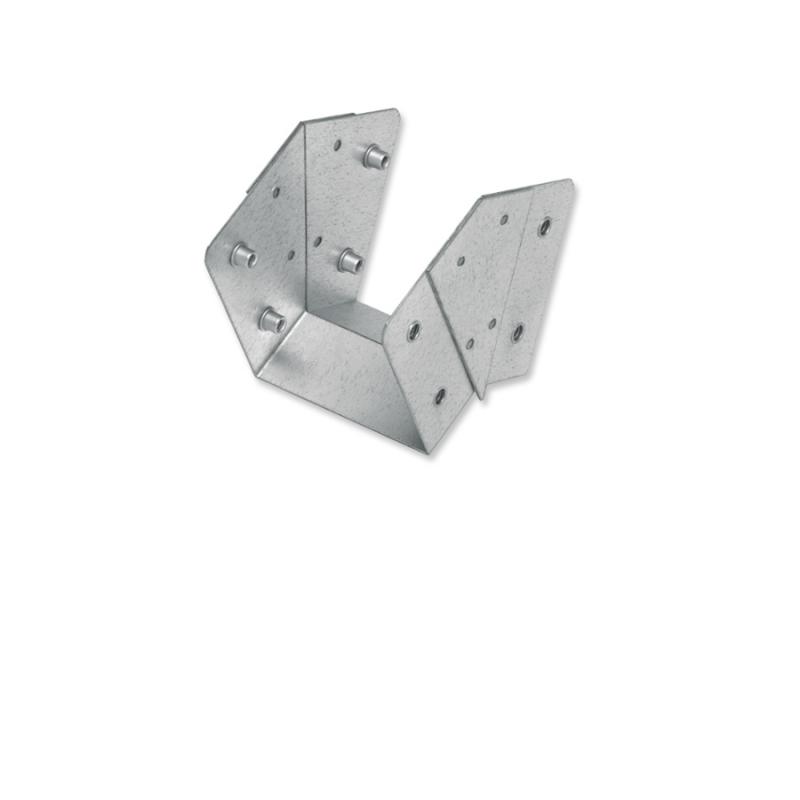

45° Outside Joint

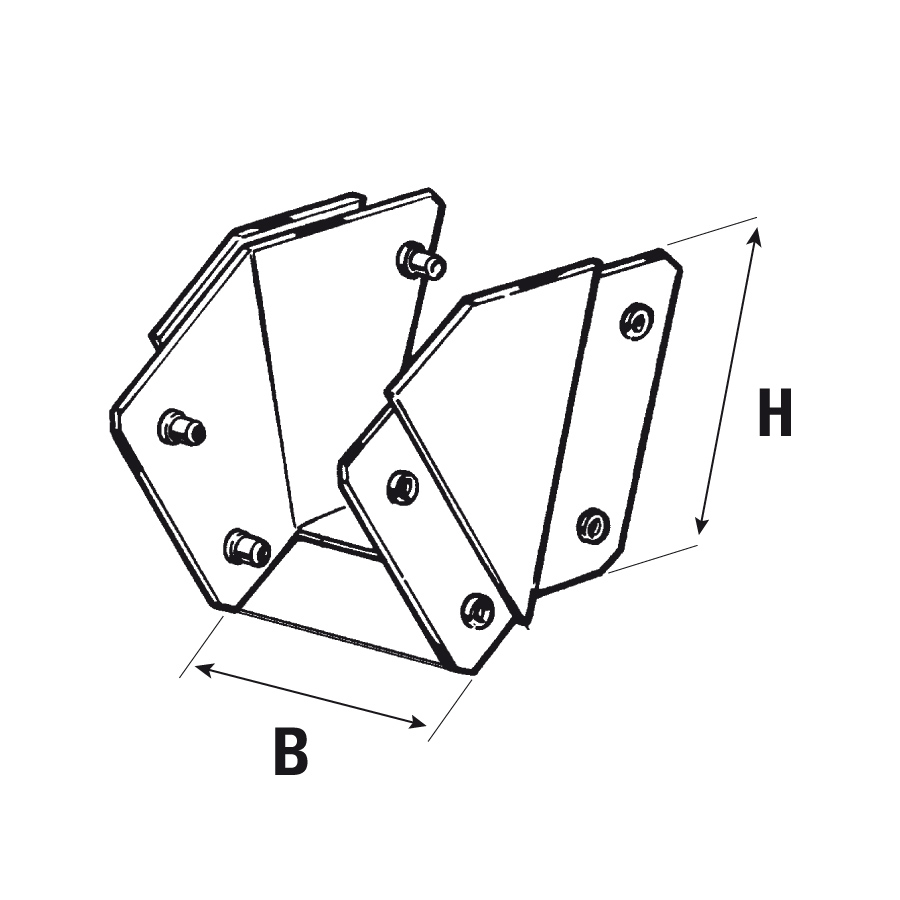

Dimension brush Thickness Technical Info Code
H W (B) [mm] No.of Inserts Ø6
50 50 1,20 6 M0 190 0505
75 75 1,20 6 M0 190 0707
100 100 1,20 10 M0 190 1010
100 150 2,00 10 M0 190 1015
100 200 2,00 10 M0 190 1020
100 300 2,00 10 M0 190 1030
100 400 2,00 10 M0 190 1040
100 500 2,00 10 M0 190 1050
100 600 2,00 10 M0 190 1060
150 300 2,00 10 M0 190 1530
150 400 2,00 10 M0 190 1540
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
20 Sendzimir galvanized 20/10 trampling
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

45° Outside Joint
