Step over protection board
Dimension brush Thickness Weight Technical Info Code
H W (B) [mm] [Kg] L W1 (B1)
75 75 3+1,5 5,01 1000 535 M0 680 0707
100 100 3+1,5 6,11 1000 645 M0 680 1010
100 150 3+1,5 6,55 1000 695 M0 680 1015
100 200 3+1,5 6,98 1000 745 M0 680 1020
100 300 3+1,5 7,86 1000 845 M0 680 1030
100 400 3+1,5 8,73 1000 945 M0 680 1040
100 500 3+1,5 9,61 1000 1045 M0 680 1050
100 600 3+1,5 10,48 1000 1145 M0 680 1060

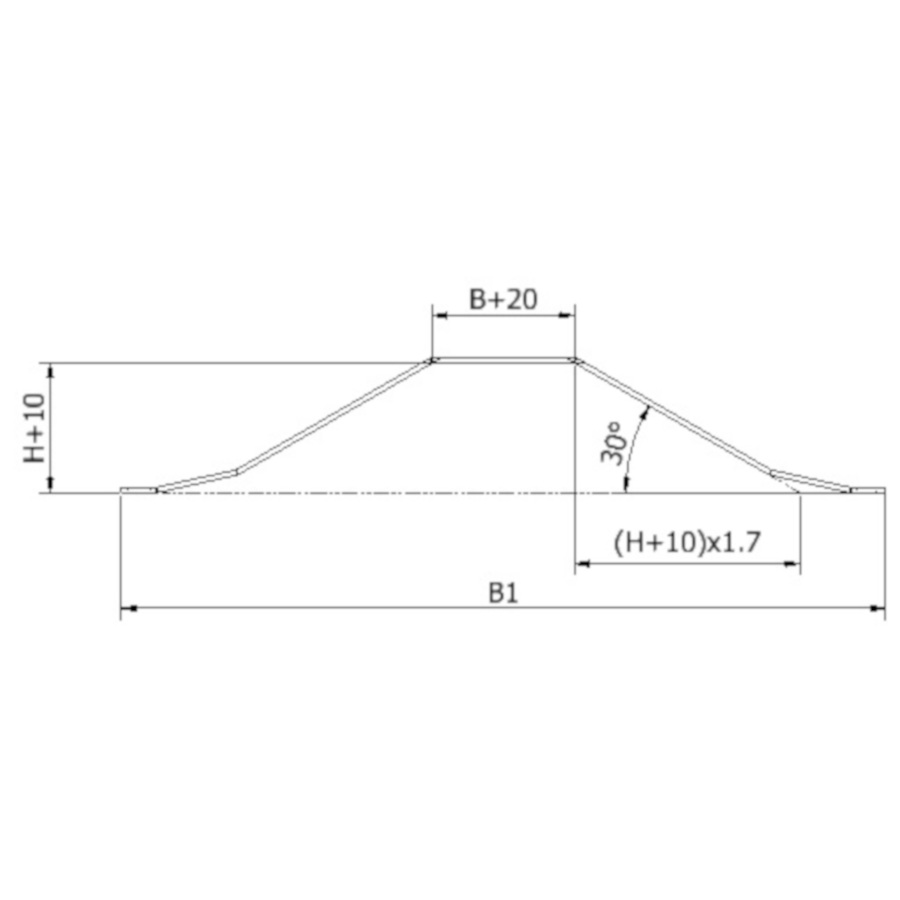

B - Trunking base
B1- Board base
Assembly: n°4 M0 625 0880 01


NOT WALKABLE PER UL STANDARD

List of Coatings
brush
45 "Peraluman" Aluminium - EN 573-3 - EN 485-2/3
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

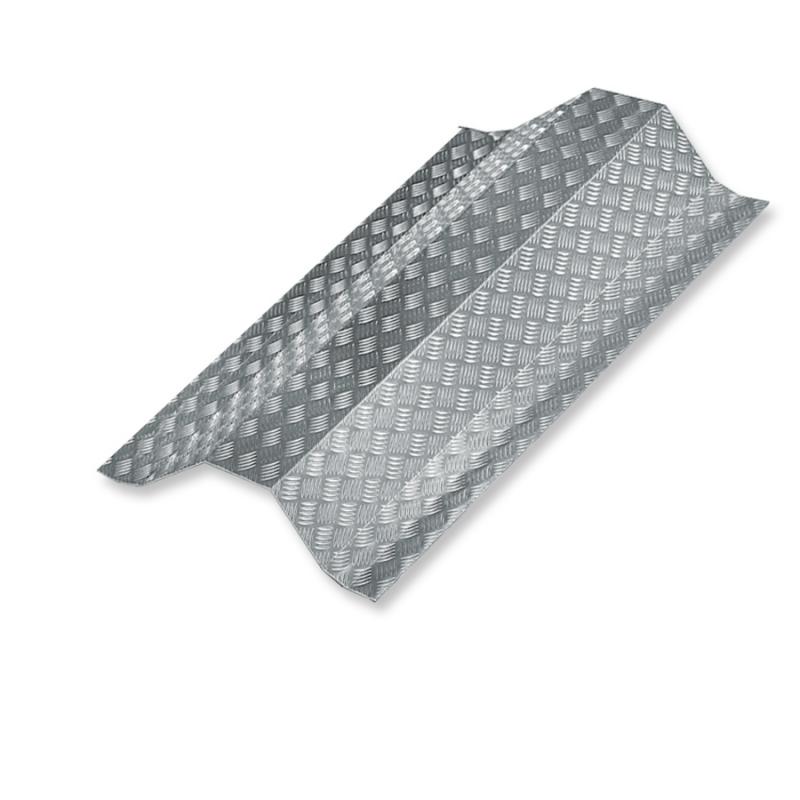

Trunking step over board

If it is necessary to further protect the trunking run, Zamet suggests two kinds of step over protection boards. They are very useful, easy to install, strong and made in aluminium peraluman.

Trampling slip Cod.M0 690

Step over protection board Cod.M0 680

Step over protection board
