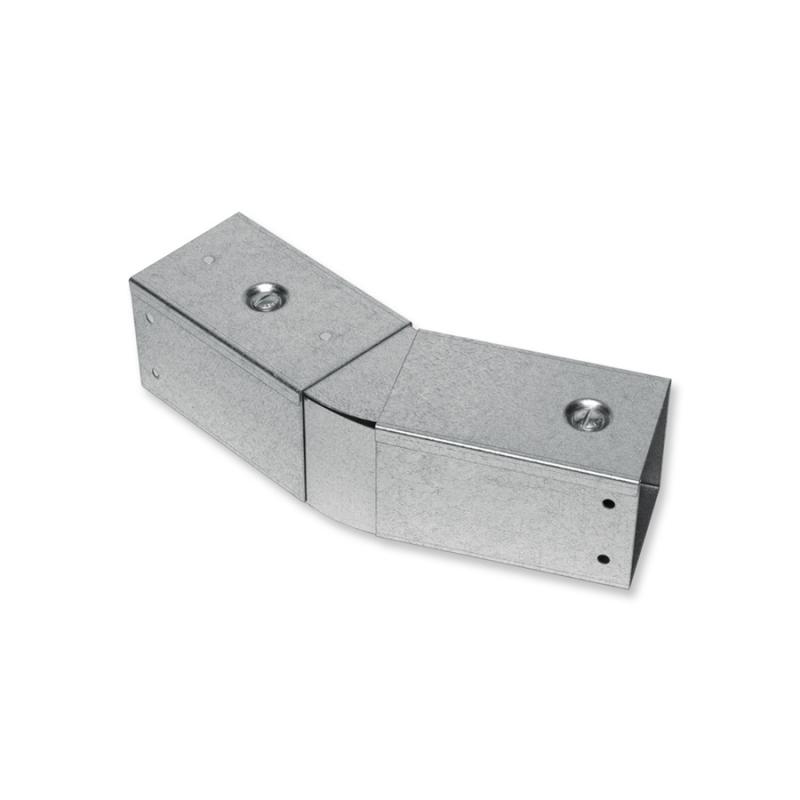

Articulated horizontal elbow with Cover

Cover with Winged locks

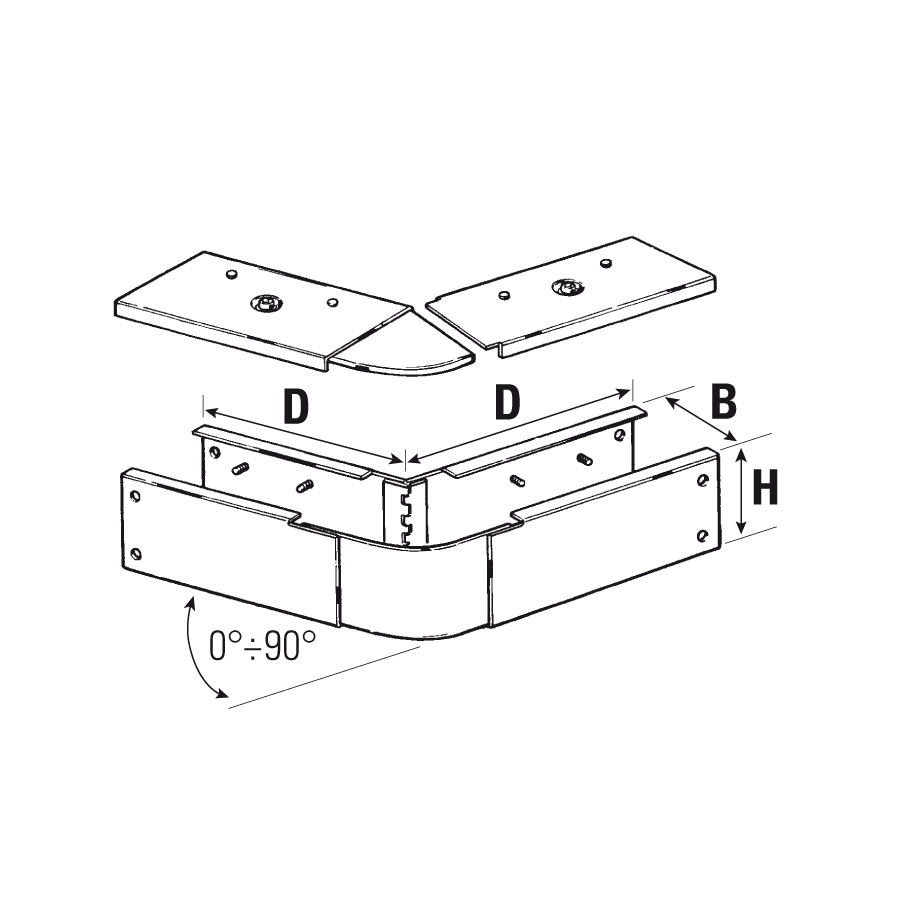

Dimension brush Thickness Technical Info Code
H W (B) [mm] d No.of Holes Ø8
50 50 1,20 150 4 M0 330 0505
75 75 1,20 175 4 M0 330 0707
100 100 1,20 175 8 M0 330 1010
100 100 2,00 175 8 M0 330 1010
100 150 1,50 255 8 M0 330 1015
100 150 2,00 255 8 M0 330 1015
100 200 1,50 370 8 M0 330 1020
100 200 2,00 370 8 M0 330 1020
100 300 1,50 490 10 M0 330 1030
100 300 2,00 490 10 M0 330 1030
100 400 2,00 590 10 M0 330 1040
100 500 2,00 690 10 M0 330 1050
100 600 2,00 790 10 M0 330 1060
150 300 2,00 490 10 M0 330 1530
150 400 2,00 590 10 M0 330 1540
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
20 Sendzimir galvanized 20/10 trampling
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

Articulated Elbow

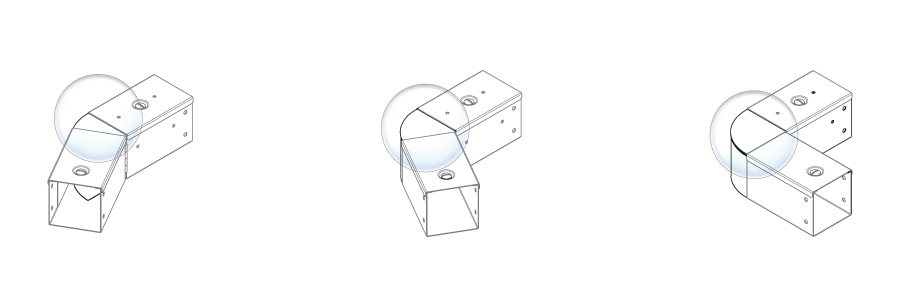

This is certainly is one of the most flexible components, and ise easily adapted to the whole system. Designed especially to create elbows with varying angles for a perfect run, also where slight shifts could be a problem.

Articulated horizontal elbow with Cover
