Zamet - ZM - M0 130 - Flat 90° Elbow with angle Cover

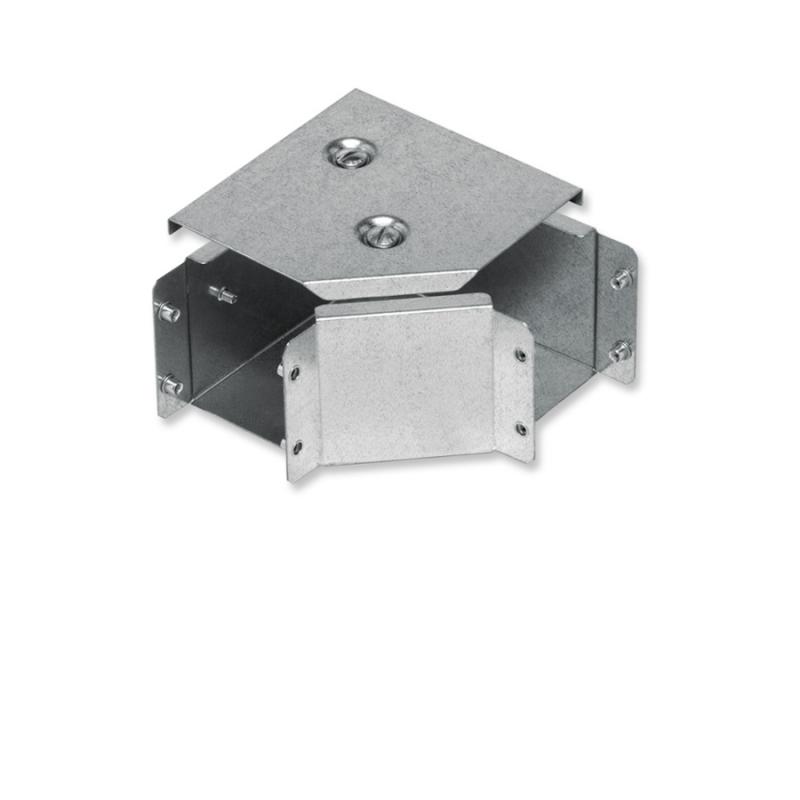

Flat 90° Elbow with angle Cover

Cover with Winged locks

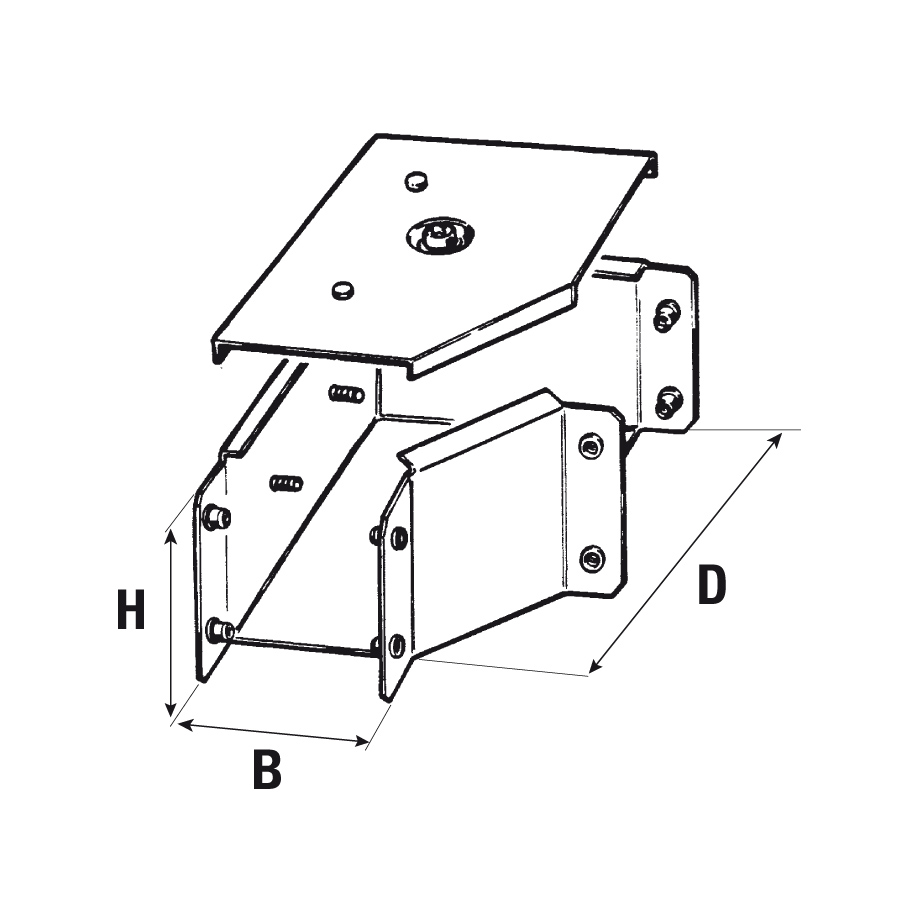

Dimension				Thickness	Technical Info		Code

H	W (B)			[mm]	d	No.of Inserts Ø6

50	50	01		1,20	86	4	M0 130 0505
75	75	01		1,20	129	4	M0 130 0707
100	100	01		1,20	173	8	M0 130 1010
100	100		20	2,00	173	8	M0 130 1010
100	150	01		1,50	253	8	M0 130 1015
100	150		20	2,00	253	8	M0 130 1015
100	200	01		1,50	304	8	M0 130 1020
100	200		20	2,00	304	8	M0 130 1020
100	300	01		1,50	406	10	M0 130 1030
100	300		20	2,00	406	10	M0 130 1030
100	400		20	2,00	508	10	M0 130 1040
100	500		20	2,00	610	10	M0 130 1050
100	600		20	2,00	712	10	M0 130 1060
150	300		20	2,00	406	10	M0 130 1530
150	400		20	2,00	506	10	M0 130 1540

List of Coatings

	01	Galvanization (Sendzimir method) - UNI EN 10346
	20	Sendzimir galvanized 20/10 trampling

Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark
