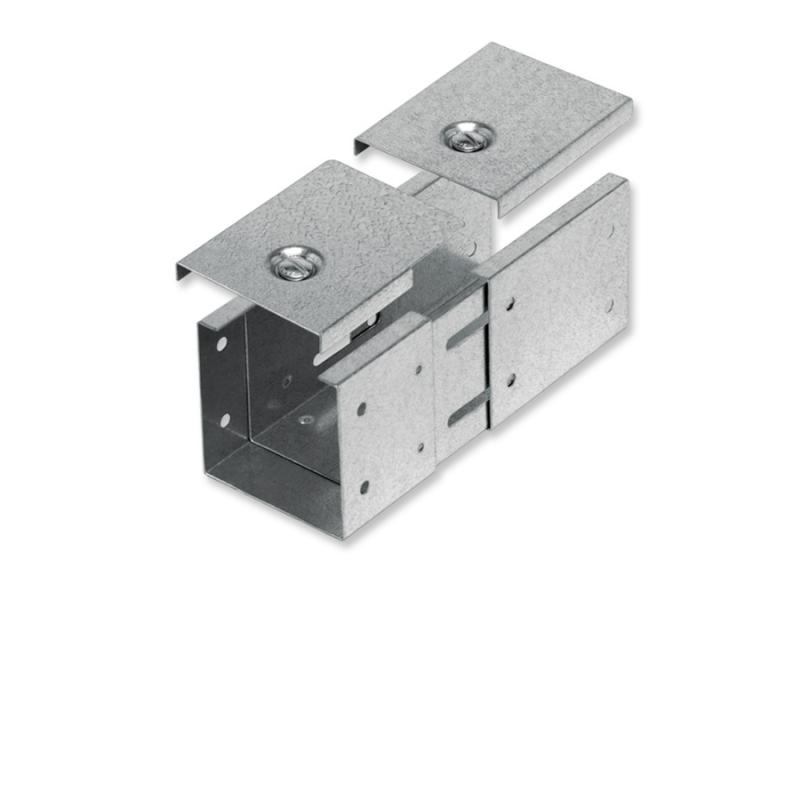

Mean Telescopic element with Cover

Cover with Winged locks

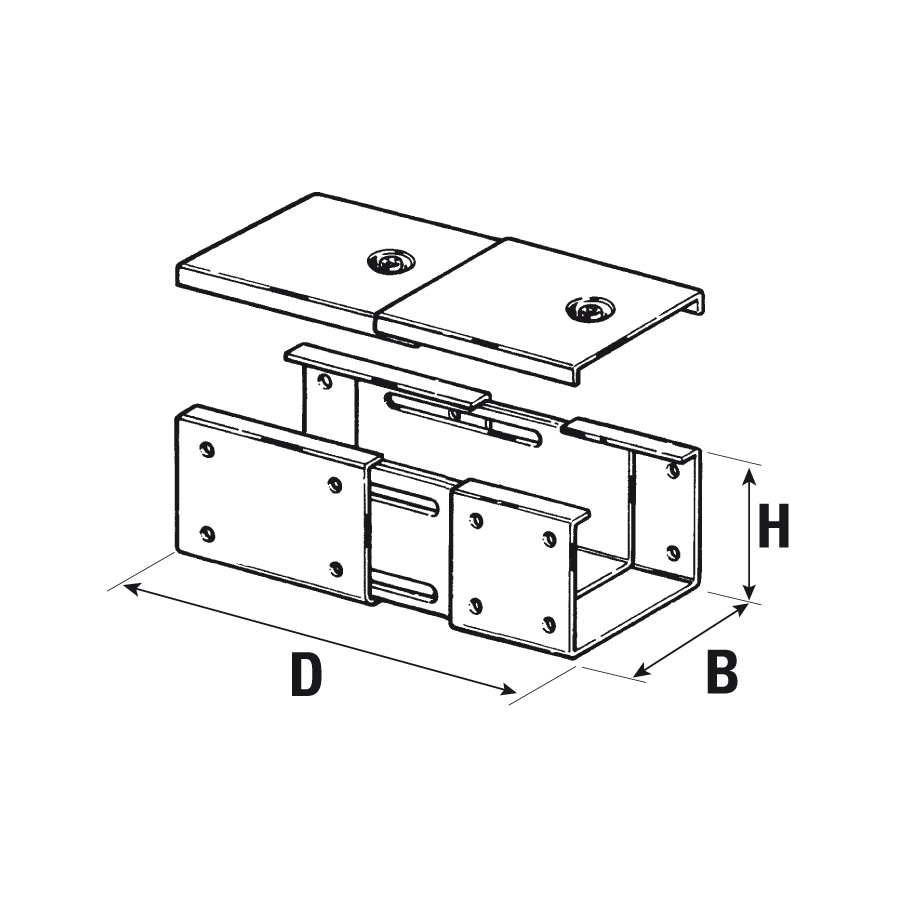

Dimension brush Thickness Technical Info Code
H W (B) [mm] No.of Holes Ø8 D min-max
50 50 1,20 4 200-250 M0 360 0505
75 75 1,20 4 200-250 M0 360 0707
100 100 1,20 8 200-250 M0 360 1010
100 100 2,00 8 200-250 M0 360 1010
100 150 1,50 8 200-250 M0 360 1015
100 150 2,00 8 200-250 M0 360 1015
100 200 1,50 8 200-250 M0 360 1020
100 200 2,00 8 200-250 M0 360 1020
100 300 1,50 10 200-250 M0 360 1030
100 300 2,00 10 200-250 M0 360 1030
100 400 2,00 10 200-250 M0 360 1040
100 500 2,00 10 200-250 M0 360 1050
100 600 2,00 10 200-250 M0 360 1060
150 300 2,00 10 200-250 M0 360 1530
150 400 2,00 10 200-250 M0 360 1540
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
20 Sendzimir galvanized 20/10 trampling
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

Telescopic Element

This is a length compensator. It avoids cutting and allows adjustments along the system to make up for discrepancies in design.Various dimensions are available in order to guarantee a wide choice for targeted solutions.

Mean Telescopic element with Cover
