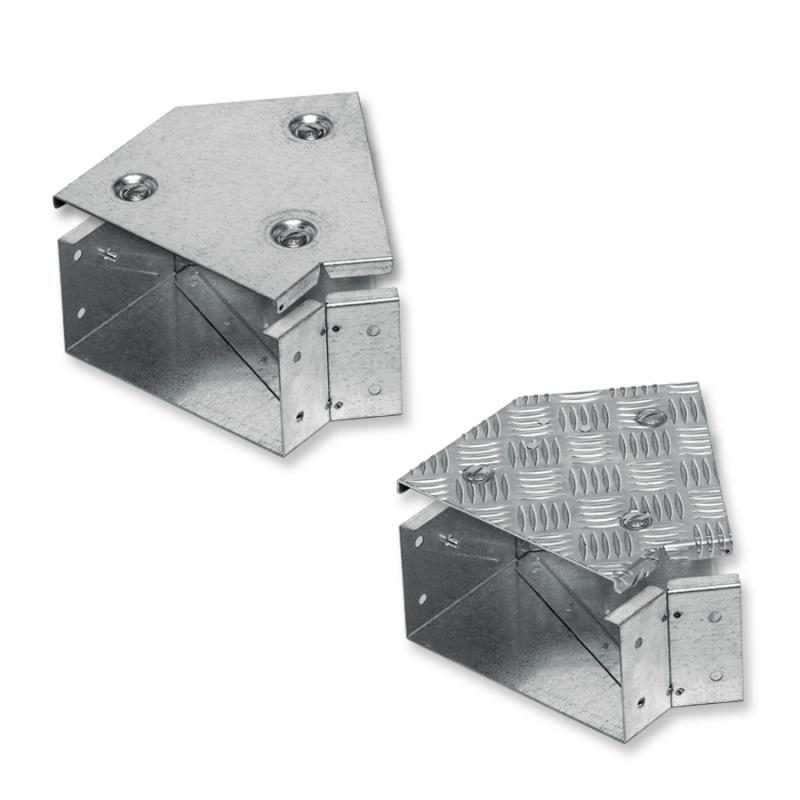

Flat 45° Elbow with Cover

Cover with Winged locks

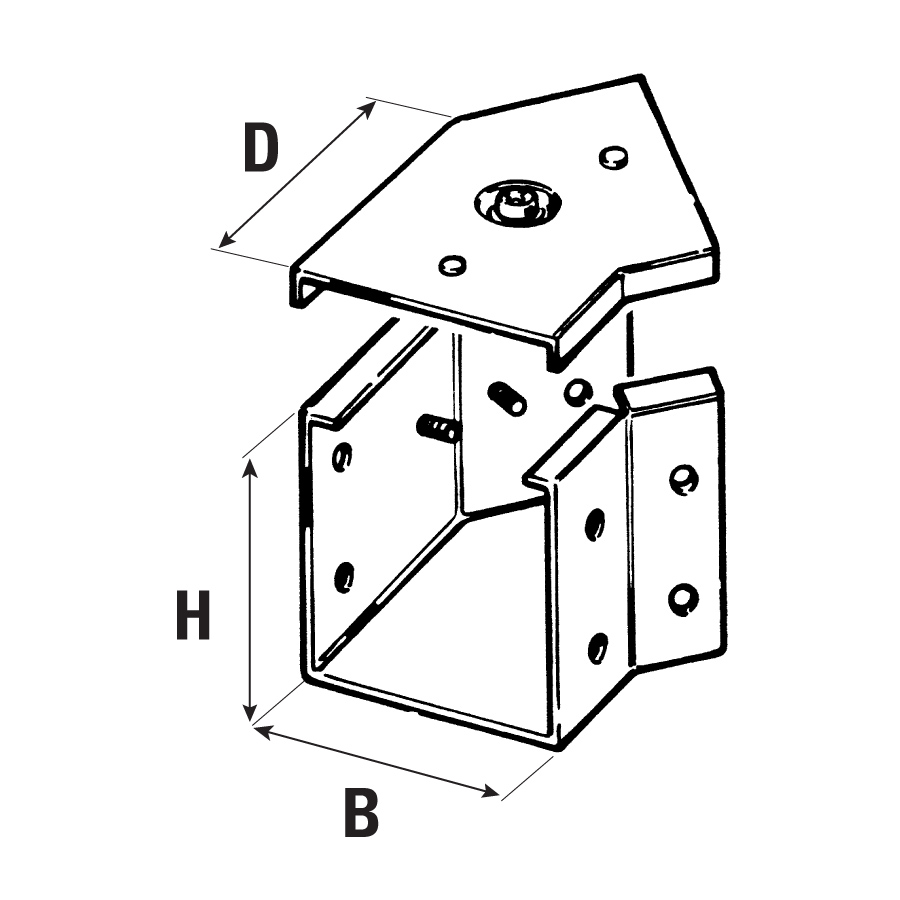

Dimension brush Thickness Technical Info Code
W (B) H [mm] d No.of Holes Ø8
50 50 1,20 72 4 M0 150 0505
75 75 1,20 82 4 M0 150 0707
100 100 1,20 93 8 M0 150 1010
100 100 2,00 93 8 M0 150 1010
100 100 2,00 94 8 M0 150 1010
150 100 1,50 114 8 M0 150 1015
150 100 2,00 114 8 M0 150 1015
150 100 2,00 115 8 M0 150 1015
200 100 1,50 136 8 M0 150 1020
200 100 2,00 136 8 M0 150 1020
300 100 1,50 177 10 M0 150 1030
300 100 2,00 177 10 M0 150 1030
300 100 2,00 178 10 M0 150 1030
400 100 2,00 221 10 M0 150 1040
400 100 2,00 220 10 M0 150 1040
500 100 2,00 263 10 M0 150 1050
500 100 2,00 262 10 M0 150 1050
600 100 2,00 306 10 M0 150 1060
600 100 2,00 304 10 M0 150 1060
300 150 2,00 177 10 M0 150 1530
400 150 2,00 221 10 M0 150 1540

50 Sendzimir basis +”peraluman” aluminium cover
(thickness 3,00 + 1,50mm)

Not walkable per UL standard

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
20 Sendzimir galvanized 20/10 trampling
50 Sendzimir basis+peraluman aluminium Cover
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

Flat 45° Elbow with Cover
