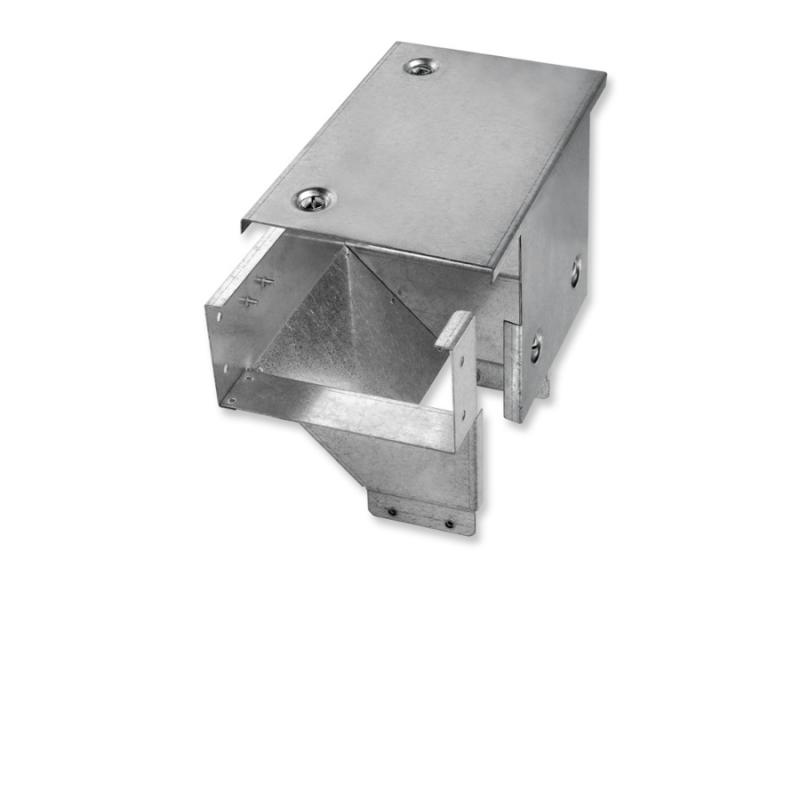

Descending skewed “T” junction with Cover

Cover with Winged locks

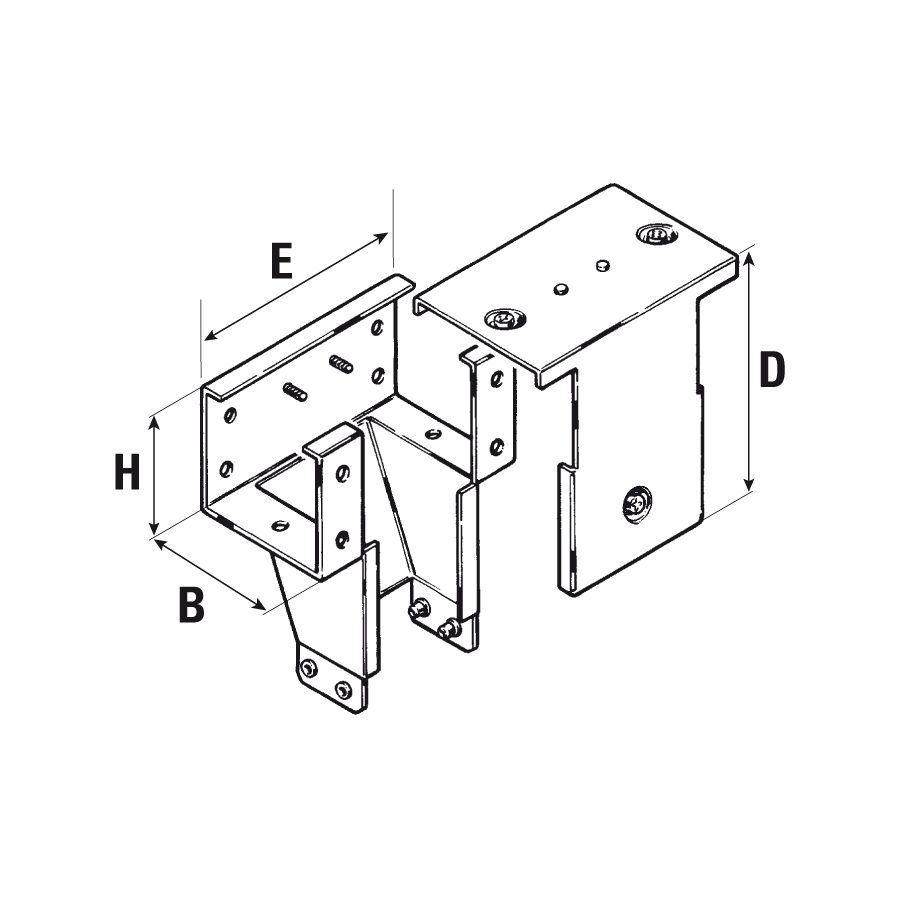

Dimension brush Thickness Technical Info Code
W (B) H [mm] d E No.of Inserts
50 50 1,20 86 160 2 M0 290 0505
75 75 1,20 129 182 2 M0 290 0707
100 100 1,20 173 210 4 M0 290 1010
100 100 2,00 173 210 4 M0 290 1010
150 100 1,50 205 260 4 M0 290 1015
150 100 2,00 205 260 4 M0 290 1015
200 100 1,50 205 310 4 M0 290 1020
200 100 2,00 205 310 4 M0 290 1020
300 100 1,50 205 410 5 M0 290 1030
300 100 2,00 205 410 5 M0 290 1030
400 100 2,00 205 510 5 M0 290 1040
500 100 2,00 205 610 5 M0 290 1050
600 100 2,00 205 710 5 M0 290 1060
300 150 2,00 256 410 5 M0 290 1530
400 150 2,00 256 510 5 M0 290 1540
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
20 Sendzimir galvanized 20/10 trampling
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

Skewed Elbows

This particular junction allows descent or rise maintaining, unlike standard elbows and connectors, the possibility to open and check the system by the operator.
It is useful and absolutely necessary for skewing along the system.

Descending skewed “T” junction with Cover
