Zamet - ZM - M0 180 - 45° Outside Elbow with Cover

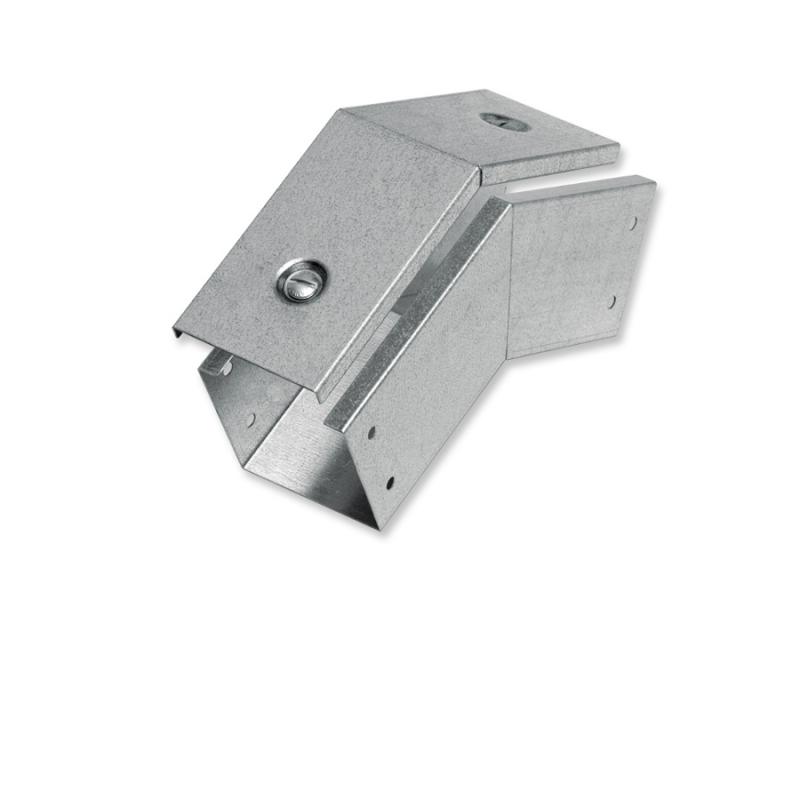

45° Outside Elbow with Cover

Cover with Winged locks

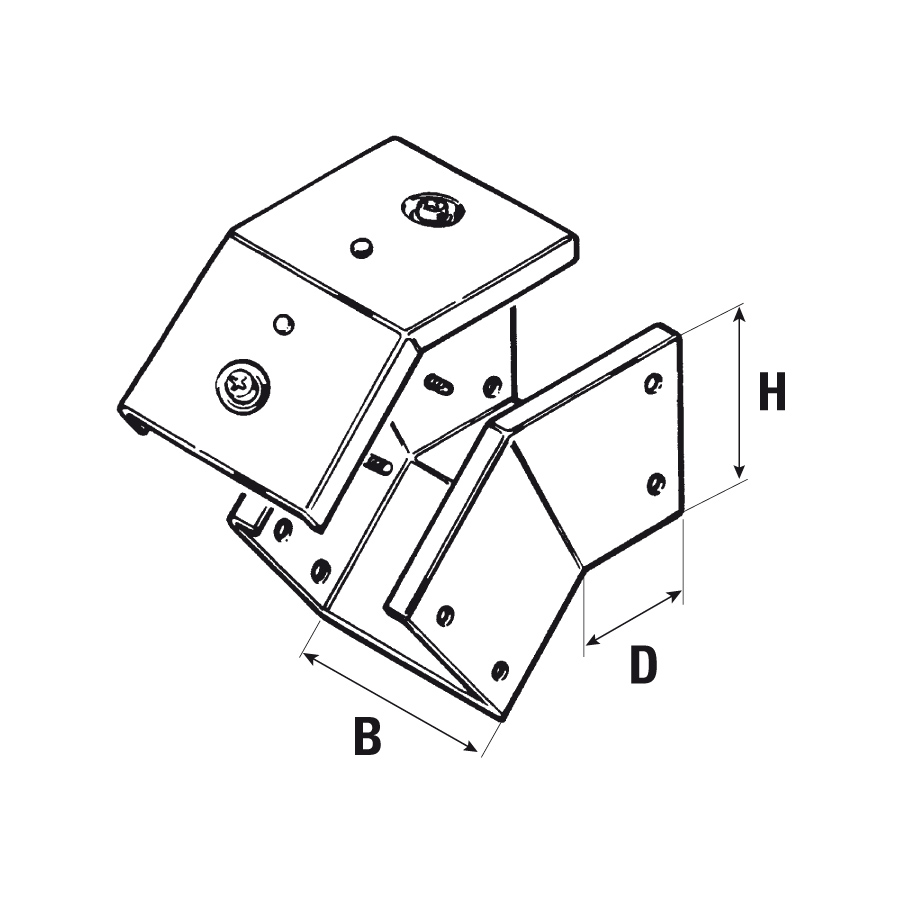

Dimension				Thickness	Technical Info		Code

W (B)	H			[mm]	d	No.of Holes Ø8

50	50	01		1,20	131	4	M0 180 0505
75	75	01		1,20	120	4	M0 180 0707
100	100	01		1,20	109	8	M0 180 1010
100	100		20	2,00	109	8	M0 180 1010
150	100	01		1,50	109	8	M0 180 1015
150	100		20	2,00	109	8	M0 180 1015
200	100	01		1,50	109	8	M0 180 1020
200	100		20	2,00	109	8	M0 180 1020
300	100	01		1,50	109	10	M0 180 1030
300	100		20	2,00	109	10	M0 180 1030
400	100		20	2,00	109	10	M0 180 1040
500	100		20	2,00	109	10	M0 180 1050
600	100		20	2,00	109	10	M0 180 1060
300	150		20	2,00	88	10	M0 180 1530
400	150		20	2,00	88	10	M0 180 1540

List of Coatings

	01	Galvanization (Sendzimir method) - UNI EN 10346
	20	Sendzimir galvanized 20/10 trampling

Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark
