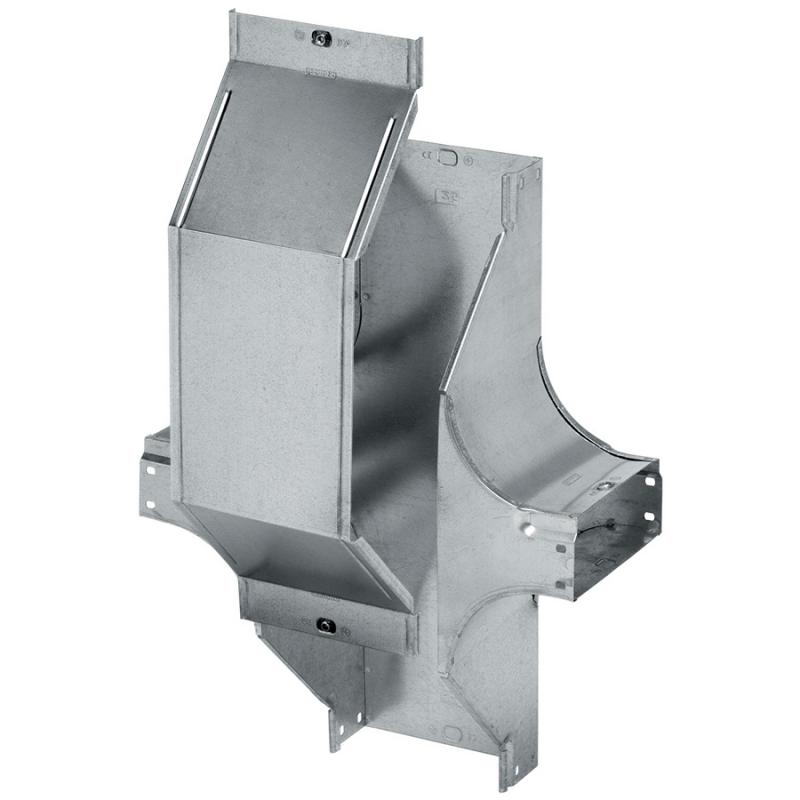

Skewed cross with Cover

Only upon Request
H 50
H 75
H 100

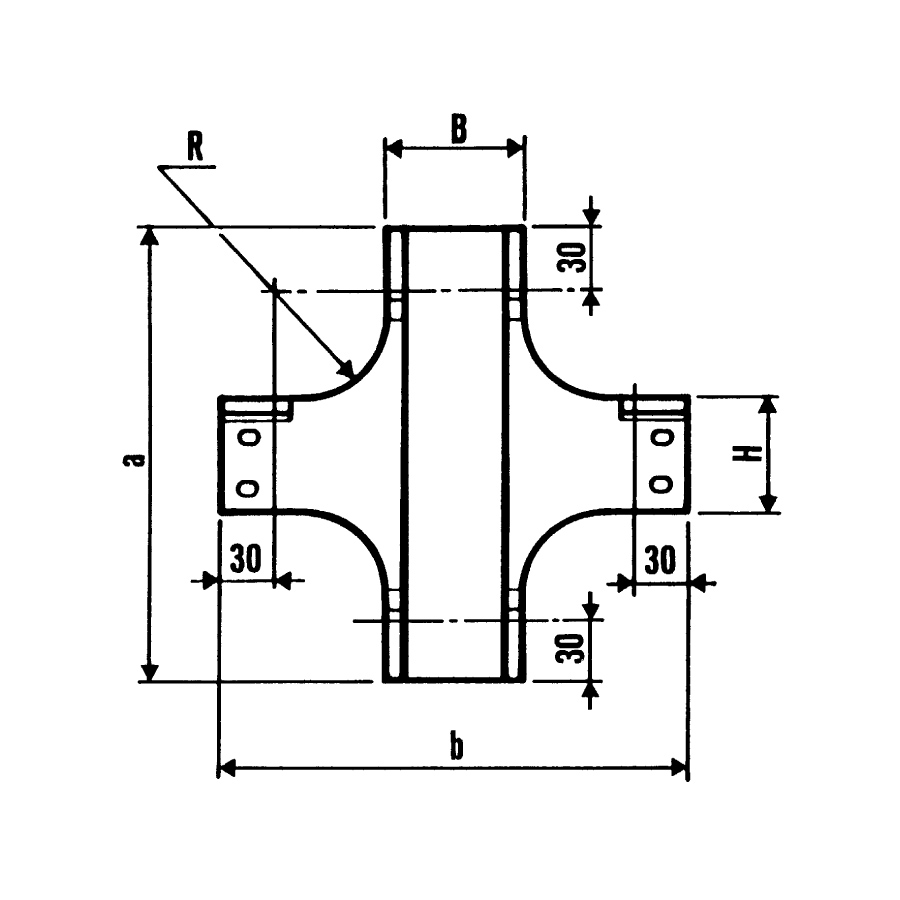

Dimension brush Weight Technical Info Code
W (B) [Kg] a w (b) R
50 1,19 350 310 100 T0 131 0505
100 2,07 450 360 100 T0 131 0510
150 3,19 550 410 100 T0 131 0515
200 4,56 650 460 100 T0 131 0520
300 8,03 850 560 100 T0 131 0530
400 12,48 1050 660 100 T0 131 0540
500 17,92 1250 760 100 T0 131 0550
600 24,35 1450 860 100 T0 131 0560

Thickness
T1 131 - Component - 1,00mm
T1 132 - Cover - 0,80mm

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
11 Grey RAL 7032 - ISO9227-ISO6270-ISO2810
15 Blue RAL 5015 - ISO9227-ISO6270-ISO2810
Certified System

- IMQ
- EN 61537-1 ed.2007
- EN 50085-1:2005 ed EN 50085-2-1:2006
- UL file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

Skewed cross with Cover
