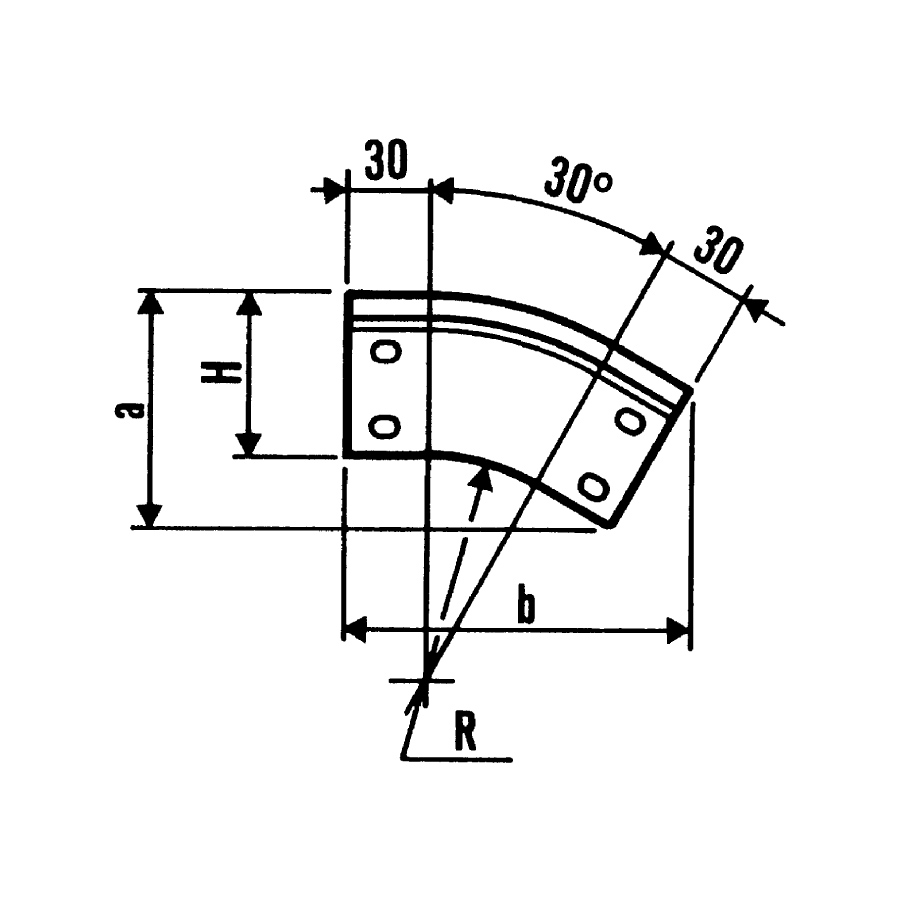

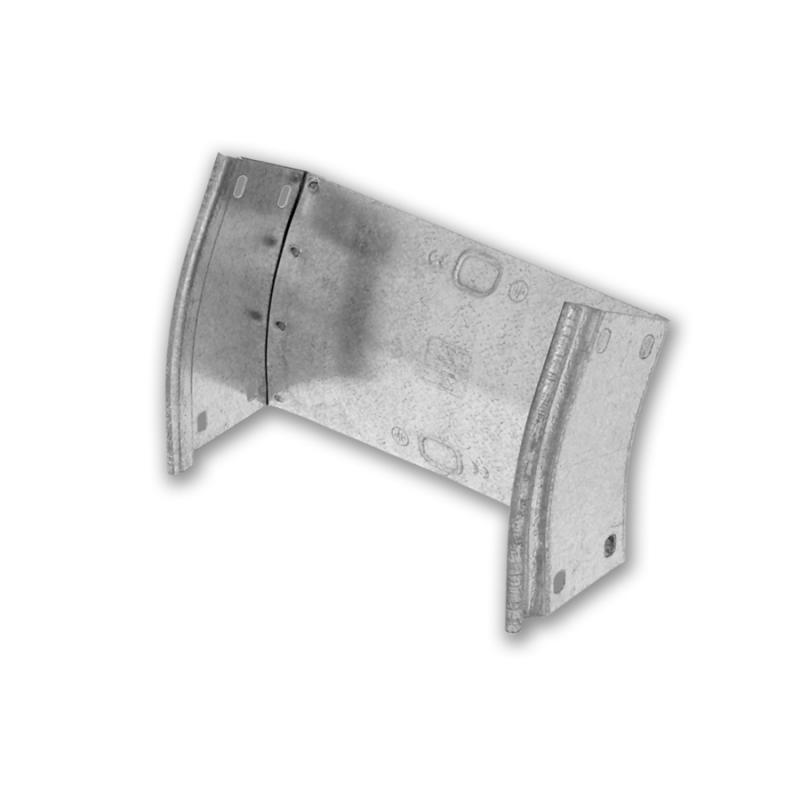

30° Outside Elbow without Cover
H 50
H 75
H 100
Dimension brush Weight Technical Info Code
W (B) [Kg] a w (b) R
50 0,22 80 131 100 T1 101 0505
100 0,26 80 131 100 T1 101 0510
150 0,31 80 131 100 T1 101 0515
200 0,35 80 131 100 T1 101 0520
300 0,44 80 131 100 T1 101 0530
400 0,53 80 131 100 T1 101 0540
500 0,61 80 131 100 T1 101 0550
600 0,70 80 131 100 T1 101 0560

Thickness
Component - 1,00mm

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
11 Grey RAL 7032 - ISO9227-ISO6270-ISO2810
15 Blue RAL 5015 - ISO9227-ISO6270-ISO2810
40 Stainless steel AISI 304 - UNI EN 10088
41 Stainless steel AISI 316L - UNI EN 10088
Certified System

- IMQ
- EN 61537-1 ed.2007
- EN 50085-1:2005 ed EN 50085-2-1:2006
- UL file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark
