Zamet - ZT - T0 013 - Perforated cable tray

Perforated cable tray

- with COVER IP20
*B.75 - Dimension on demand
Distance between slots: 50mm

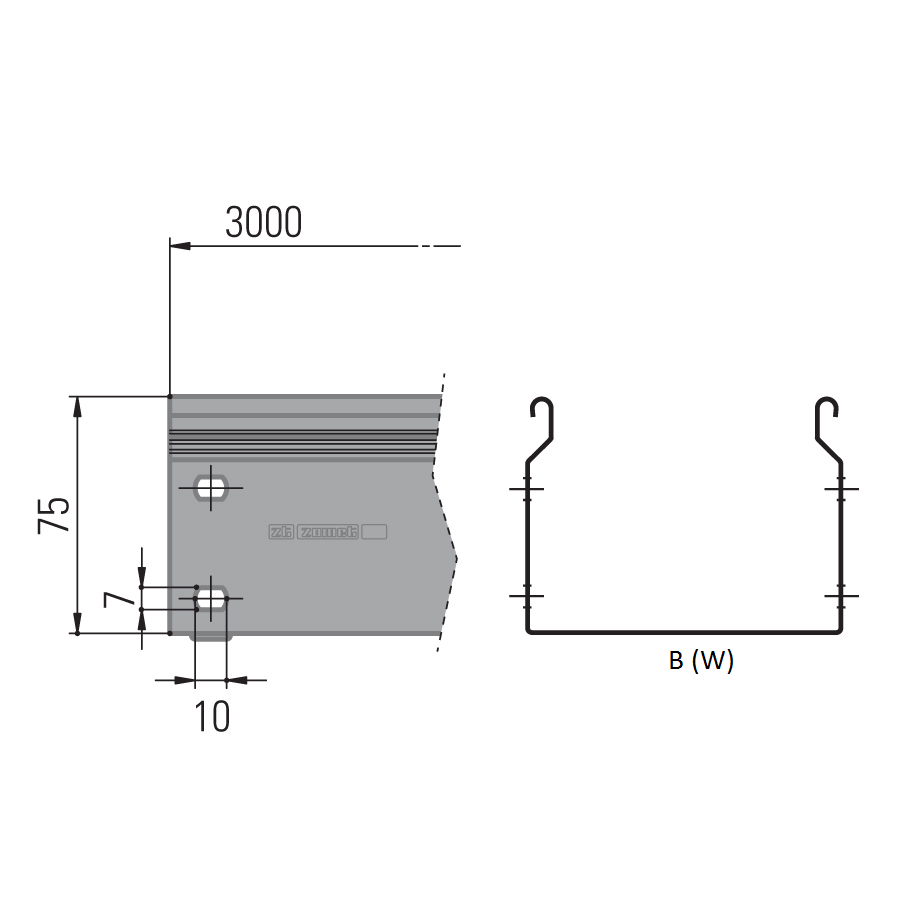

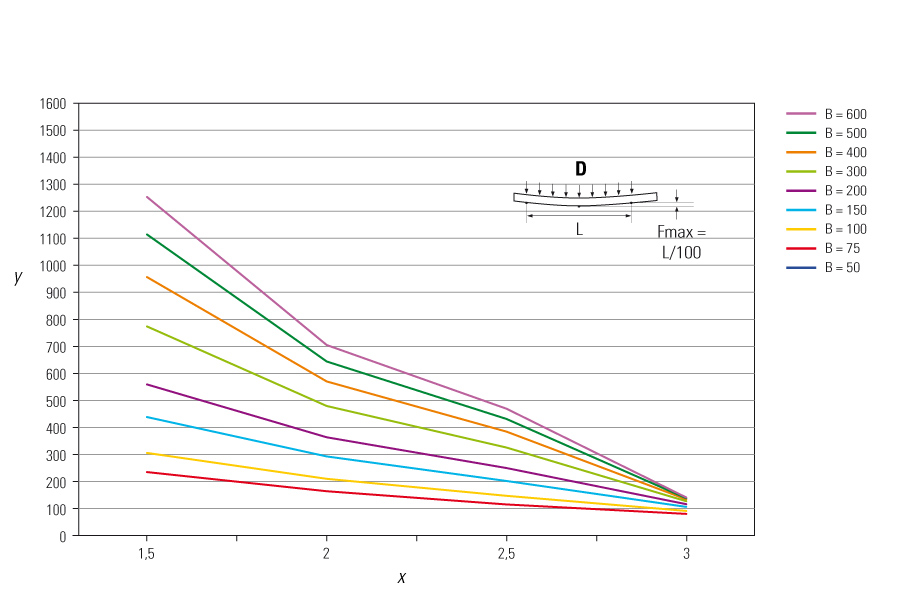

Dimension							Thickness	Conductor section	Weight	Length	SWL (N/m) as function of the span (S) [m] -EN 61537				Usable section of channel [mm²] - EN 50085-2-1						Bottom slots	Code

W (B)							[mm]	[mm2]	[Kg/m]	[mm]	1,5 m	2 m	2,5 m	3 m	1,5 m	2 m	2,5 m	3 m	3,5 m	4 m	N°

75	01	03	11	15	40	41	0,60	145,80	1,11	3000	235	164	115	80	5400	5400	2810	2810	2810	2810	2	T0 013 0707
100	01	03	11	15	40	41	0,60	160,80	1,23	3000	306	210	147	91	7200	7200	3750	3750	3750	3750	2	T0 013 0710
150	01	03	11	15	40	41	0,80	254,40	1,92	3000	439	293	202	106	10800	10800	5625	5625	5625	5500	4	T0 013 0715
200	01	03	11	15	40	41	0,80	294,40	2,19	3000	560	364	250	116	14400	14400	7500	7500	7500	5750	6	T0 013 0720
300	01	03	11	15			1,00	468,00	3,43	3000	775	480	326	127	21600	21600	11250	11250	11142	7500	10	T0 013 0730
300					40	41	0,80	375,00	2,74	3000	775	480	326	127	21600	21600	11250	11250	11142	7500	10	T0 013 0730
400	01	03	11	15	40	41	1,00	568,00	4,11	3000	958	571	385	134	28800	28800	15000	15000	11428	7500	14	T0 013 0740
500	01	03	11	15	40	41	1,20	799,20	5,74	3000	1116	645	432	138	36000	36000	18750	18750	13714	9250	18	T0 013 0750
600	01	03	11	15	40	41	1,20	919,20	6,57	3000	1255	706	470	141	43200	43200	22500	22000	14000	9250	22	T0 013 0760

List of Coatings

	01	Galvanization (Sendzimir method) - UNI EN 10346
	03	Hot dip galvanizing - UNI EN ISO 1461
	11	Grey RAL 7032 - ISO9227-ISO6270-ISO2810
	15	Blue RAL 5015 - ISO9227-ISO6270-ISO2810
	40	Stainless steel AISI 304 - UNI EN 10088
	41	Stainless steel AISI 316L - UNI EN 10088

Certified System

Norm EN 50085-2-1
Cable trunking systems and cable ducting systems for electrical installations
Part 2-1: Cable trunking systems and cable ducting systems intended for
mounting on walls and ceilings.
10.4 Linear deflection test
The test sample is subjected to an evenly distributed load of 1 g/mm2
metre length of the declared usable area for cables.

Norm EN 61537-1 ed.2007
Cable management
Cable tray systems and cable ladder systems

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark
