Zamet - ZT - T0 023 - Flat Cover

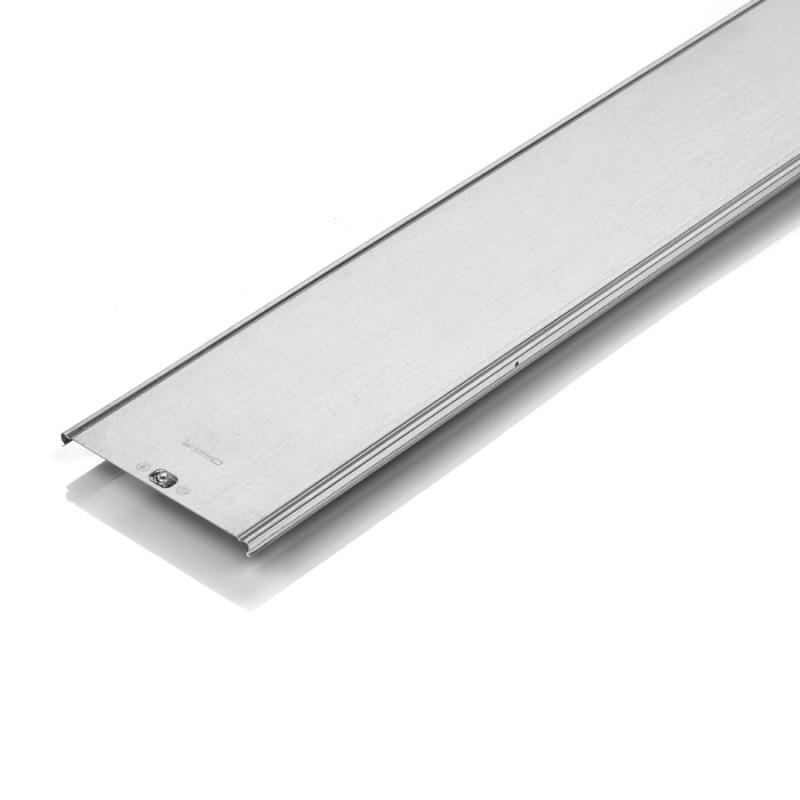

Flat Cover

For highway and roadway applications use:
- Aisi 304 - 316L stainless steel (treatment indicated as 40 - 41)

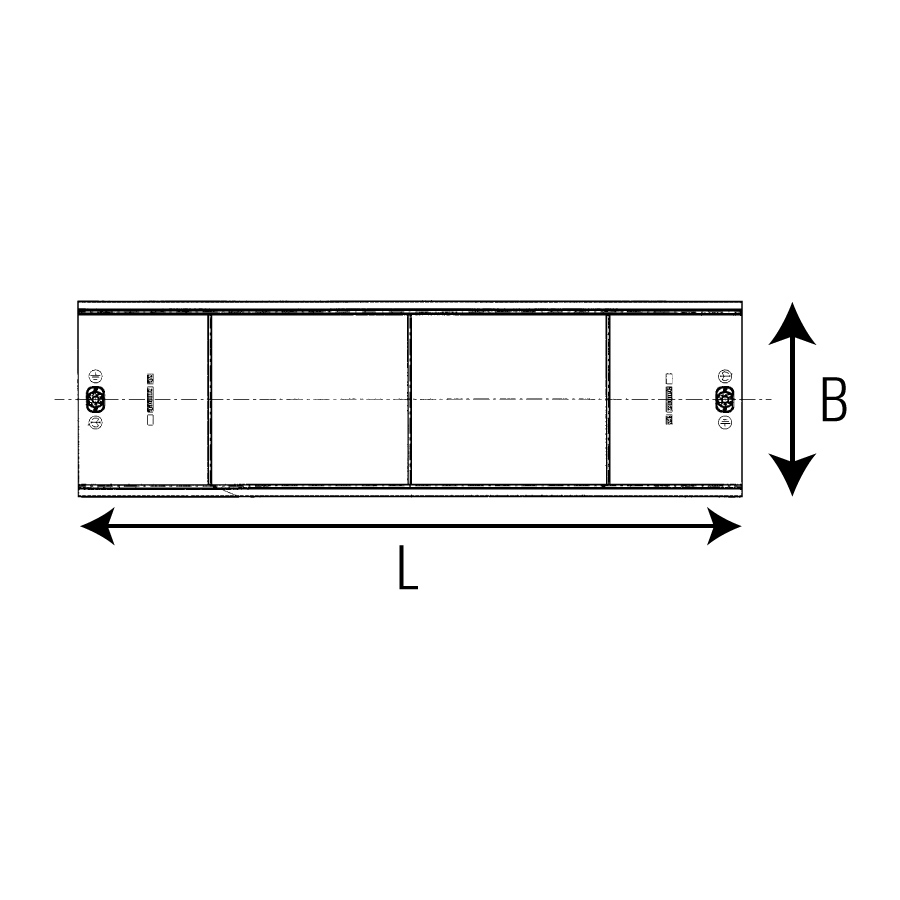

Dimension							Thickness	Weight	L	Code

W (B)							[mm]	[Kg/m]	[mm]

50	01	03	11	15	40	41	0,60	0,36	3000	T0 023 0005
75	01	03	11	15	40	41	0,60	0,48	3000	T0 023 0007
100	01	03	11	15	40	41	0,60	0,60	3000	T0 023 0010
150	01	03	11	15	40	41	0,60	0,83	3000	T0 023 0015
200	01	03	11	15	40	41	0,60	1,07	3000	T0 023 0020
300	01	03	11	15	40	41	0,60	1,54	3000	T0 023 0030
400	01	03	11	15	40	41	0,60	2,01	3000	T0 023 0040
500	01	03	11	15	40	41	0,80	3,31	3000	T0 023 0050
600	01	03	11	15	40	41	0,80	3,94	3000	T0 023 0060

Rib on cover: from B.300 and up

List of Coatings

	01	Galvanization (Sendzimir method) - UNI EN 10346
	03	Hot dip galvanizing - UNI EN ISO 1461
	11	Grey RAL 7032 - ISO9227-ISO6270-ISO2810
	15	Blue RAL 5015 - ISO9227-ISO6270-ISO2810
	40	Stainless steel AISI 304 - UNI EN 10088
	41	Stainless steel AISI 316L - UNI EN 10088

Certified System

- IMQ
- EN 61537-1 ed.2007
- EN 50085-1:2005 ed EN 50085-2-1:2006
- UL file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark
