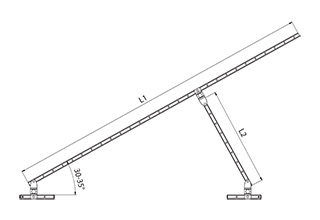

Triangle in assembly kit
brush Weight Section thickness L1 L2 Code
[Kg] [mm] [mm] [mm]
2,915 1,50 1400 450 E0 304 0000
2,414 1,50 1000 350 E0 304 0001
3,550 1,50 1700 800 E0 304 0002
List of Coatings
brush
73 Stainless steel AISI 430 - UNI EN 10088
76 ZnMg ZM310 - UNI EN 10346

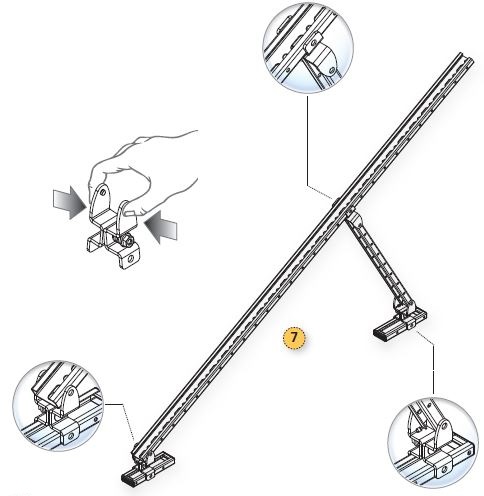

The assembly kit includes the following articles:
- E0 044 1000/1400/1700 x 1
- E0 044 0350/0450/0800 x 1
- E0 271 x 3
- E0 052 x 2 (Joint only)
- M0 479 x 4


Upon request:
- 2,0 mm profile thickness
- Different kind of stainless steel and section length

Triangle in assembly kit


×
