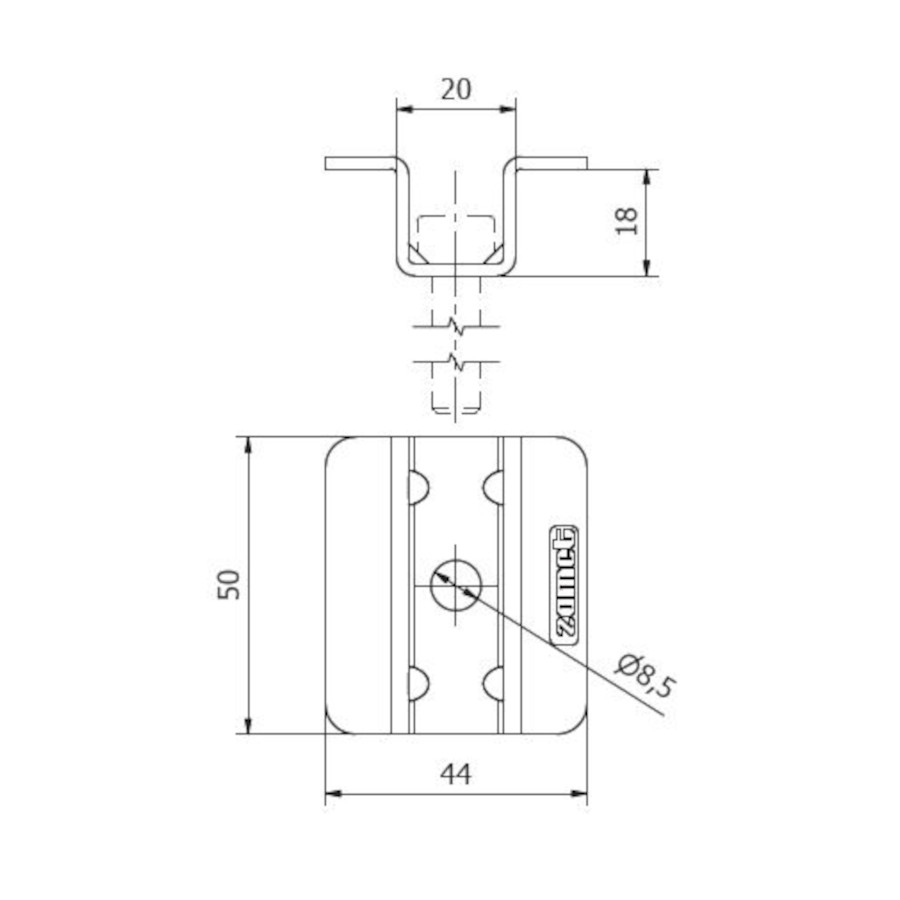

Kit "Ω“ intermediate clamp
brush Thickness Component 1 Component 2 Component 3 Minimum Weight E0 142 H - MFV Code
[mm] Code Code Code Order [Kg] [mm]
2,00 E0 142 0001 73 E0 171 0000 73 E0 628 0825 40 20 0,060 30 EK 142 0001
2,00 E0 142 0001 73 E0 171 0000 73 E0 628 0830 40 20 0,060 35 EK 142 0002

For the intermediate clamp only version the code is E0 142

List of Coatings
brush
73 Stainless steel AISI 430 - UNI EN 10088

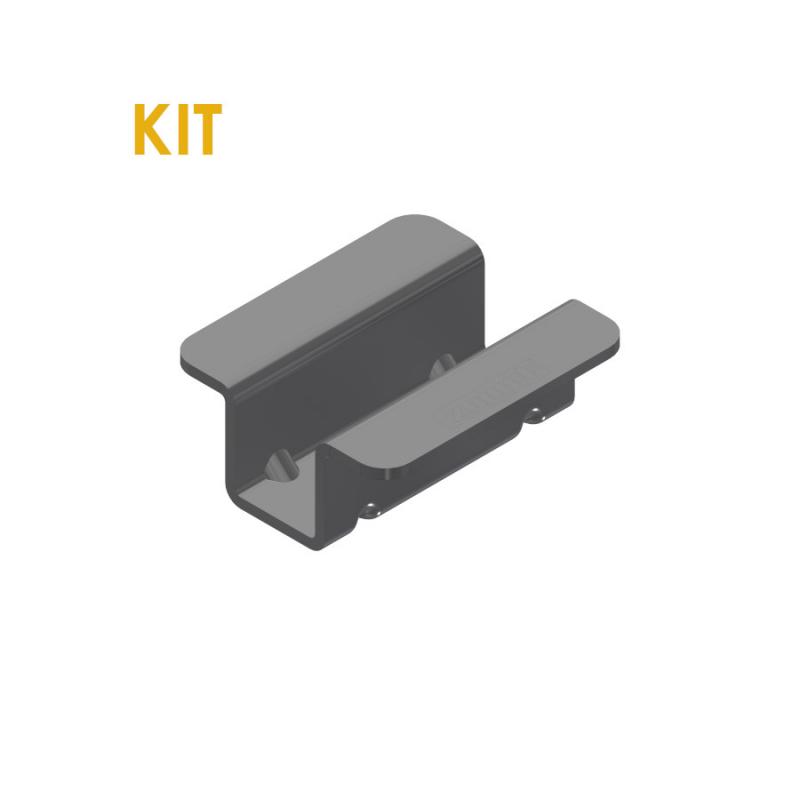

Kit
