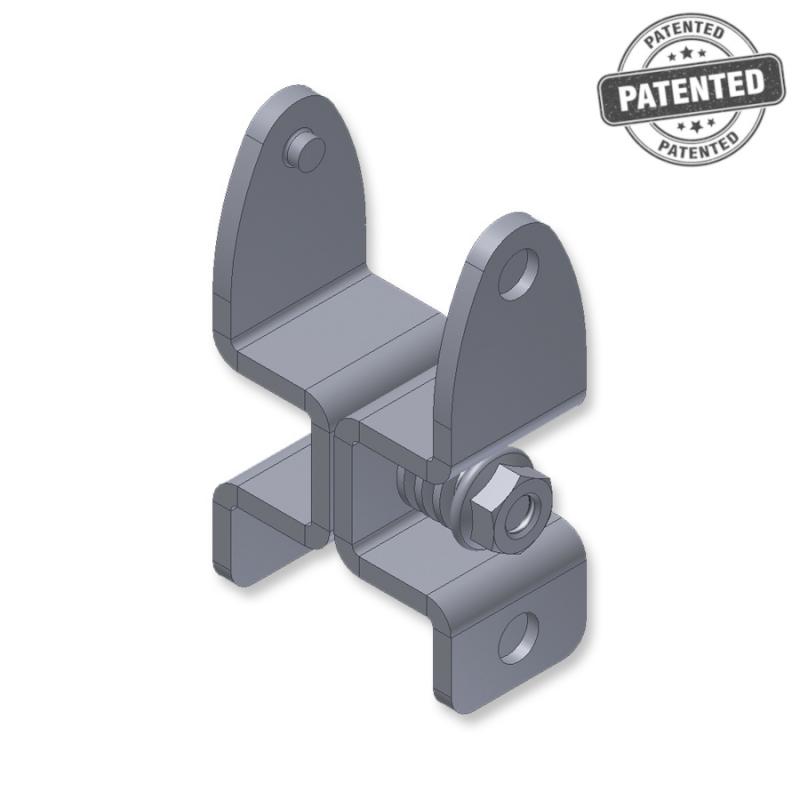

Joint for triangles, rapid assembly - PATENTED

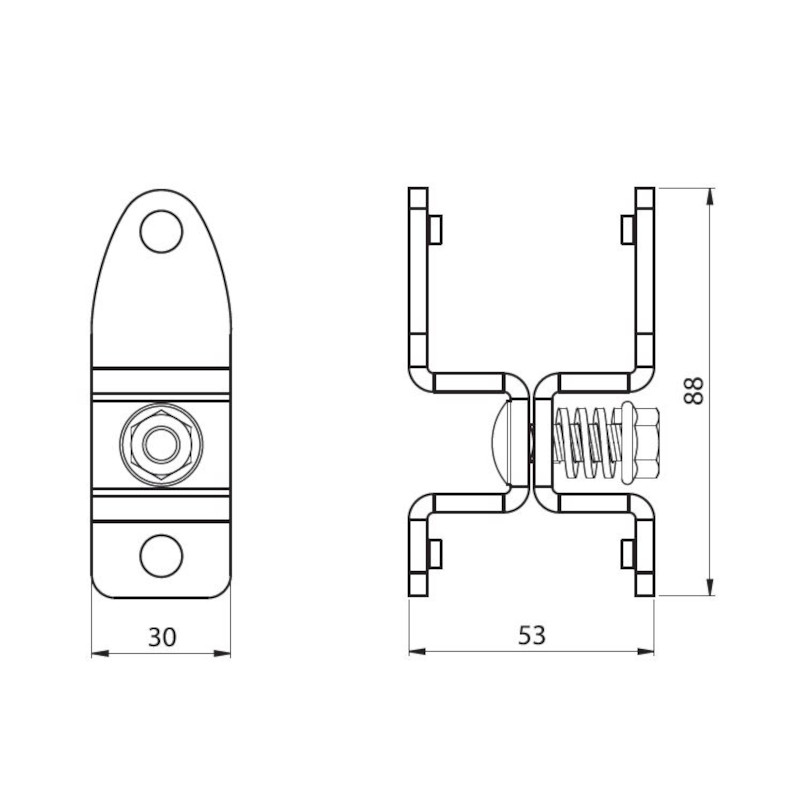

brush Thickness Weight Code
[mm] [Kg]
4,00 0,245 E0 271 0000
List of Coatings
brush
73 Stainless steel AISI 430 - UNI EN 10088

Nuts and bolts included

This joint cheaply and quickly solves the assembly of the support triangles for solar panels.

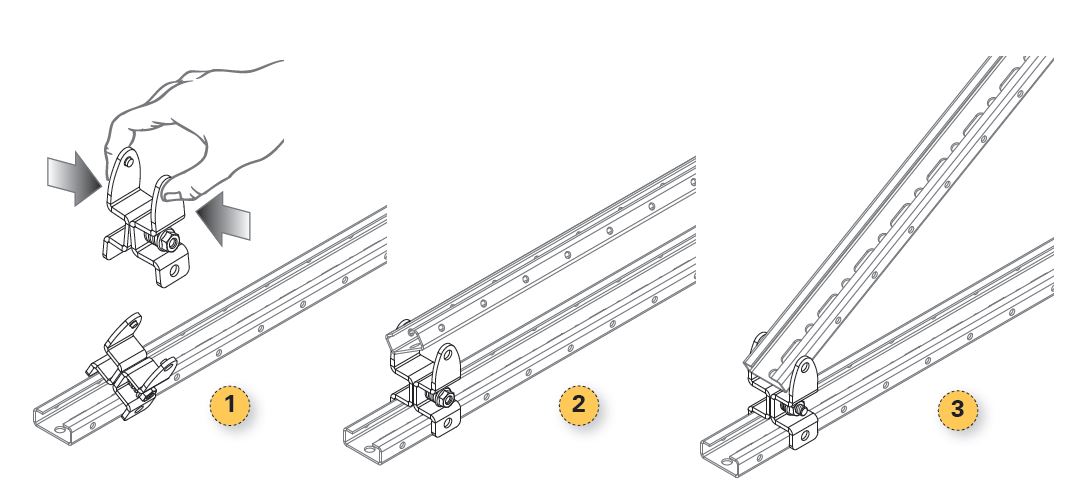

Complete snap-in assembly (1)-(2).
Upon completion of assembly, the system envisions zero locking of a single bolt per joint;
a retaining spring prevents the joint from loosening (3).
