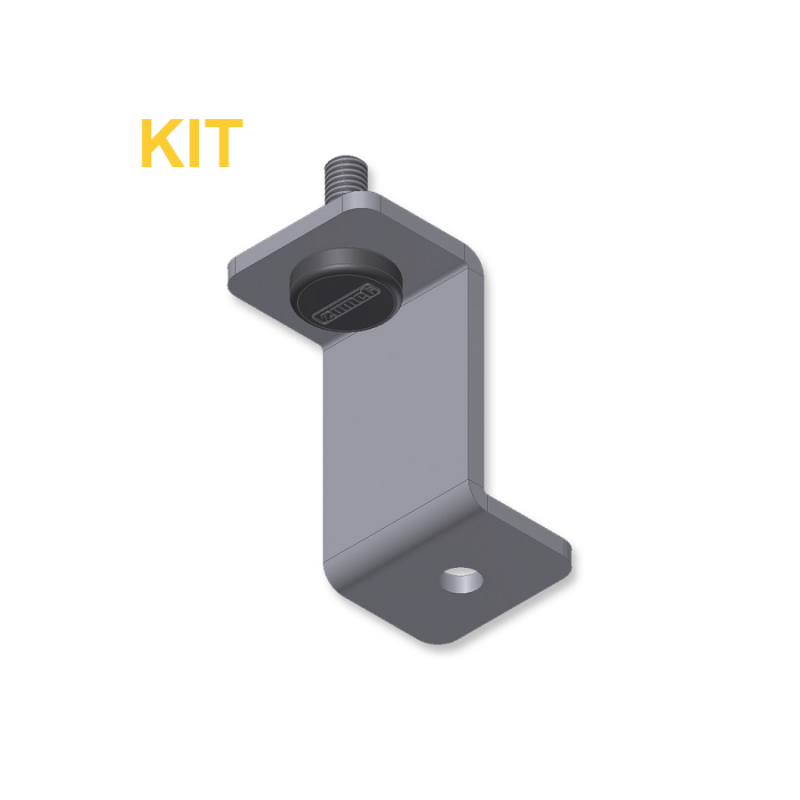

Kit Adjustable “Z” terminal clamp for FTV H33-49

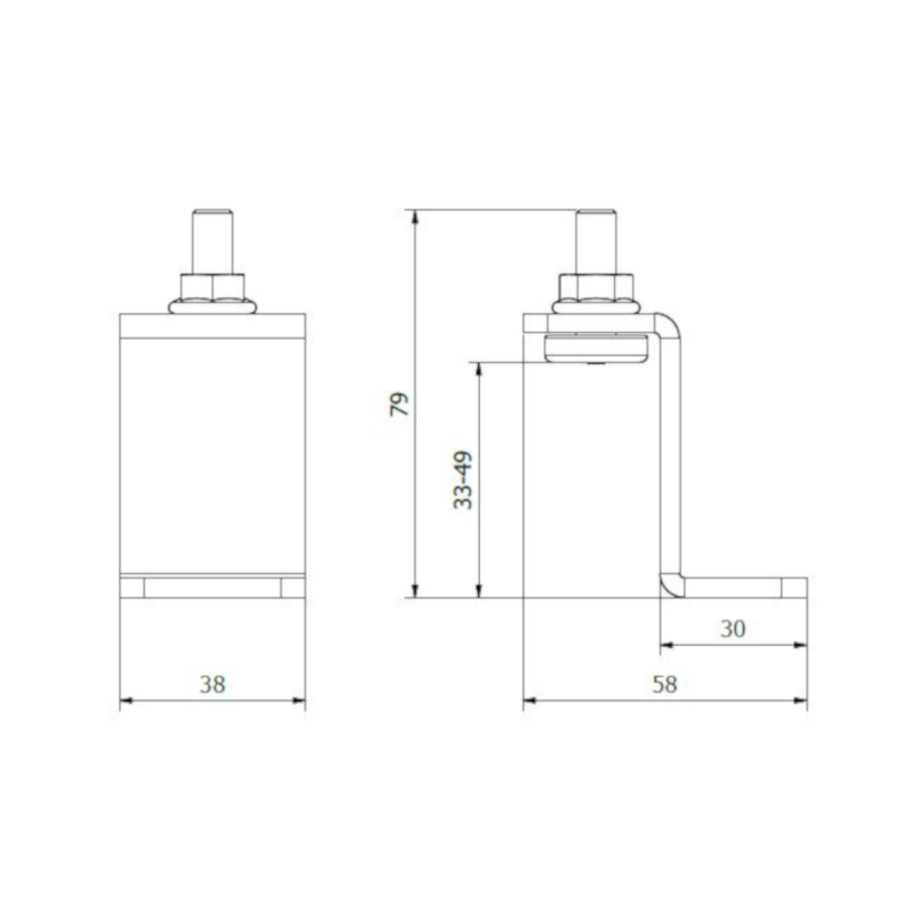

Dimension brush Thickness Weight Component 1 Component 2 Component 3 Minimum Code
h x w (b) [mm] [Kg] Code Code Code Order

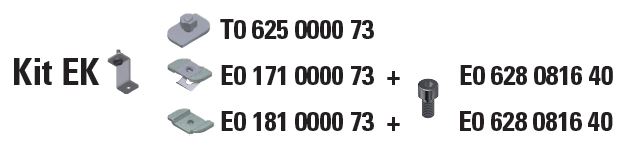

79x58 4,00 0,194 E0 191 0000 73 T0 625 0000 73 - 20 EK 191 0000
79x58 4,00 0,195 E0 191 0000 73 E0 171 0000 73 E0 628 0816 40 20 EK 191 0001
79x58 4,00 0,192 E0 191 0000 73 E0 181 0000 73 E0 628 0816 40 20 EK 191 0002
List of Coatings
brush
73 Stainless steel AISI 430 - UNI EN 10088

Included T0 621 0800 40



Kit Adjustable “Z” terminal clamp for FTV H33-49
