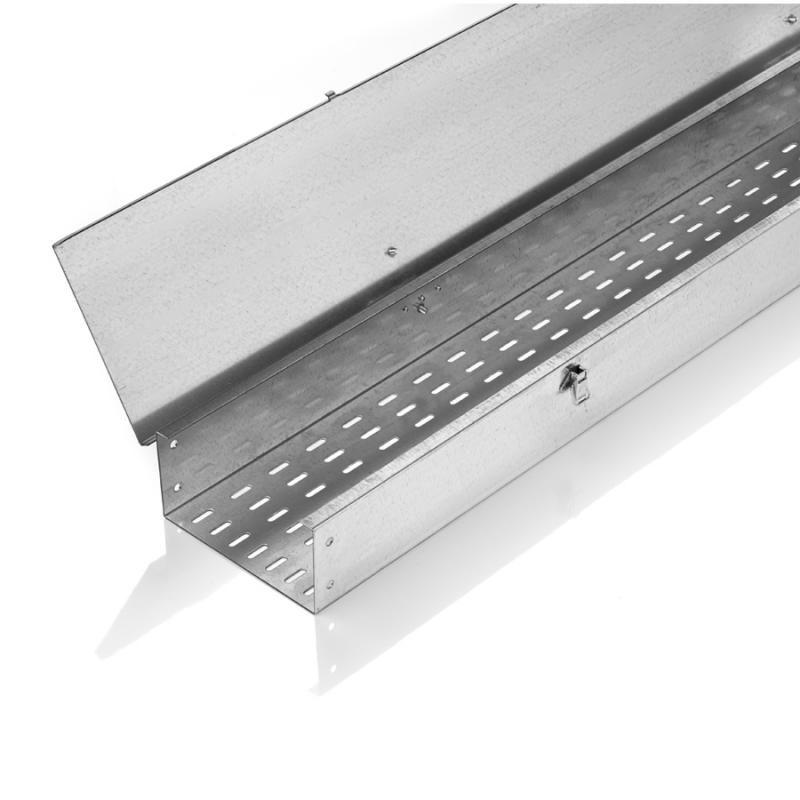

Perforated cable tray M0 082

Cover with Hinges and Clamps
Preset for earthing plait and safety cord

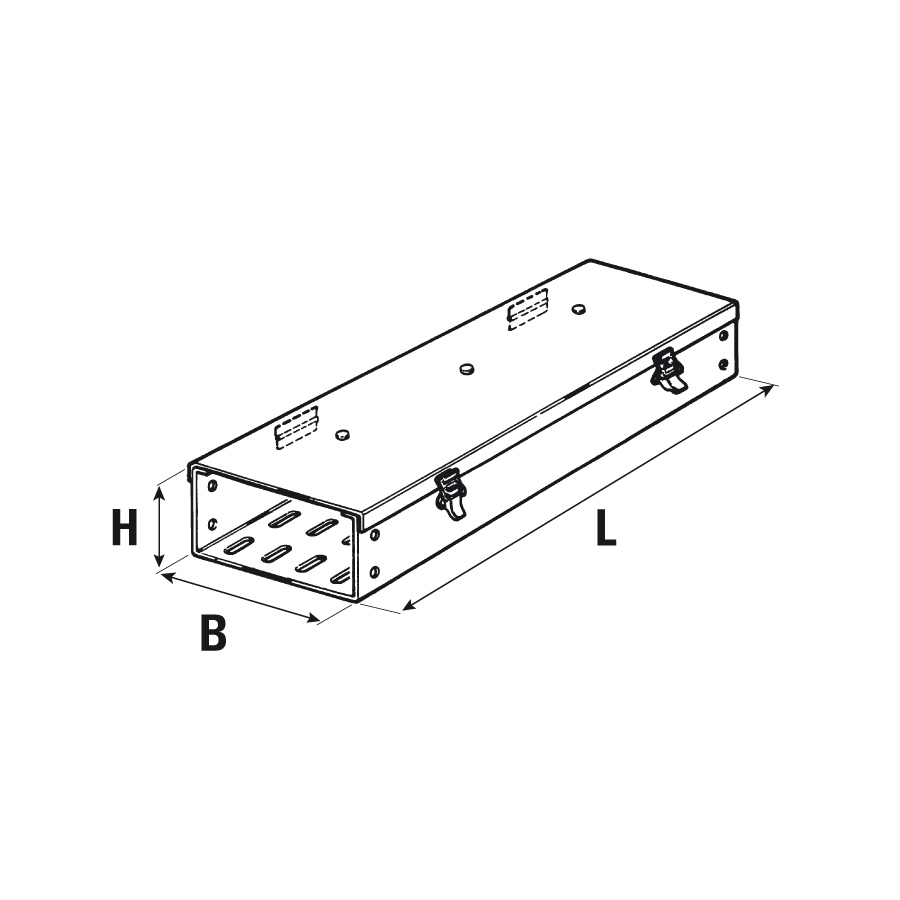

Dimension brush Thickness Weight Technical Info Code
H W (B) [mm] [Kg/m] L No. of hinges No. of clamps
50 50 1,20 2,23 2000 2 2 M0 082 0505
75 75 1,20 3,28 2000 2 2 M0 082 0707
100 100 1,20 4,20 2000 2 2 M0 082 1010
100 100 2,00 7,09 2000 2 2 M0 082 1010
100 150 1,50 6,42 2000 2 2 M0 082 1015
100 150 2,00 8,62 2000 2 2 M0 082 1015
100 200 1,50 7,56 2000 3 3 M0 082 1020
100 200 2,00 10,13 2000 3 3 M0 082 1020
100 300 1,50 9,81 2000 3 3 M0 082 1030
100 300 2,00 13,13 2000 3 3 M0 082 1030
100 400 2,00 16,11 2000 3 3 M0 082 1040
100 500 2,00 19,10 2000 3 3 M0 082 1050
100 600 2,00 22,09 2000 3 3 M0 082 1060
150 300 2,00 14,72 2000 3 3 M0 082 1530
150 400 2,00 17,72 2000 3 3 M0 082 1540
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
20 Sendzimir galvanized 20/10 trampling
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

y= Max load (Kg/m)
x= Distance between supports (m)

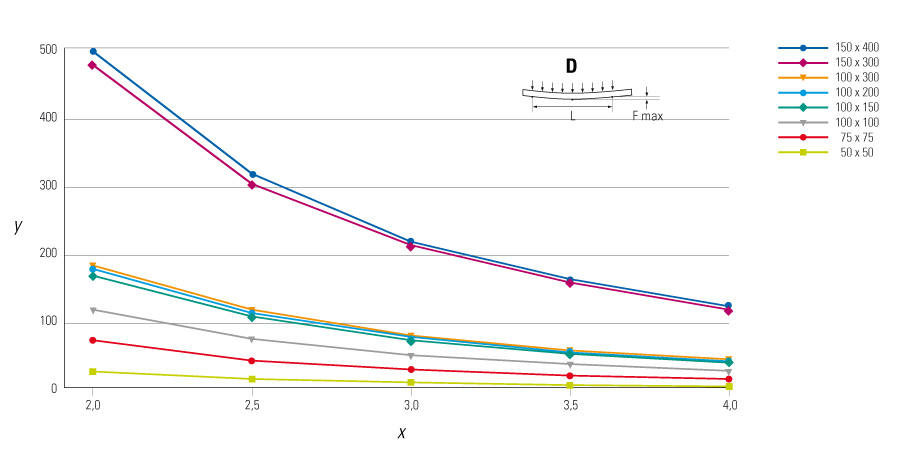

D= Uniform load

y= Max load (Kg/m)
x= Distance between supports (m)

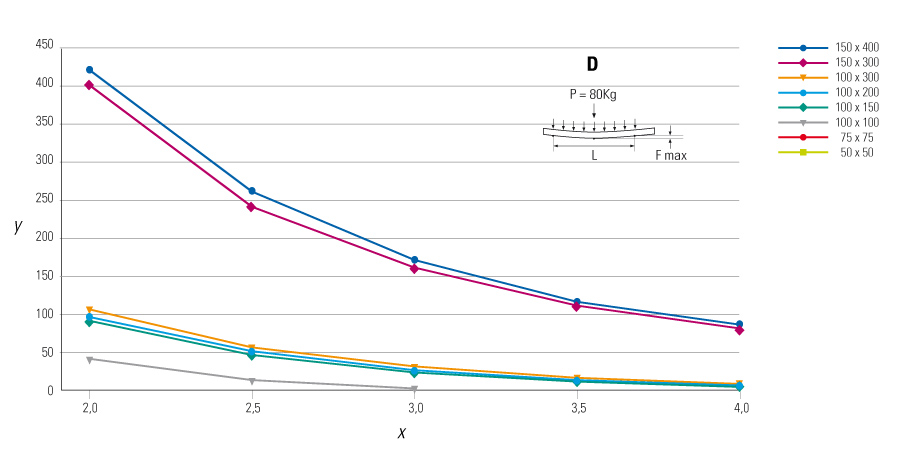

D= Uniform load + concentrated load 80Kg.

Slots dimensions on the botton of trunking: 25x7
Assembly with: T0 620 0612 + T0 624 0600

Hinged Trunking

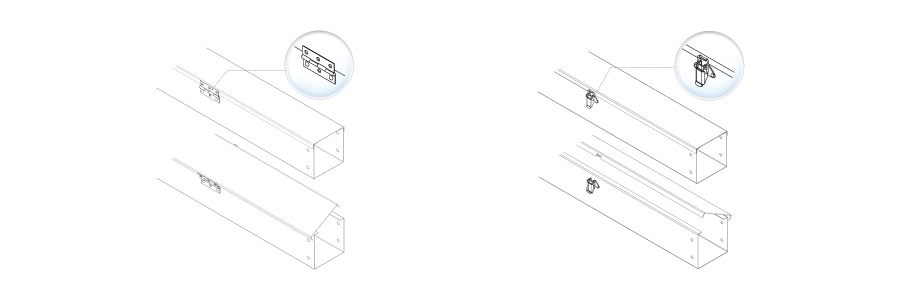

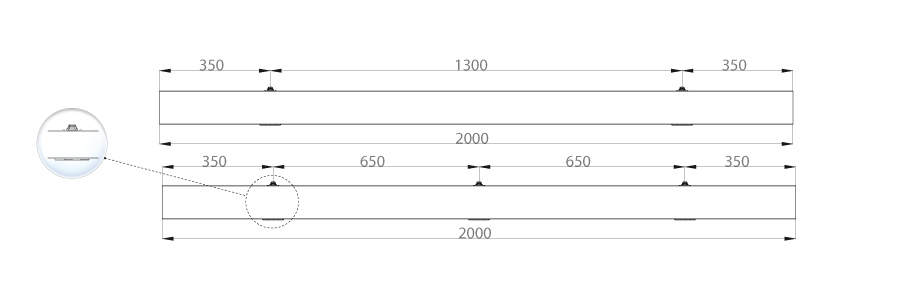

Our “ZM” system is preset for hinged covers. It allows frequent inspections without removing the cover. In alternative to hinges, the system is preset for clamps (code M0 480).
