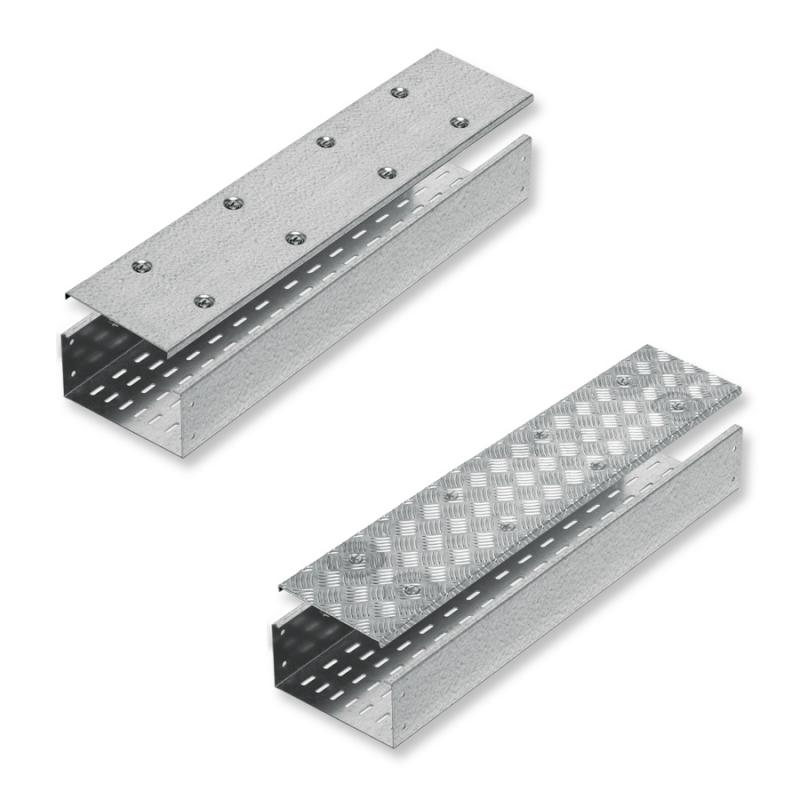

Perforated cable tray M0 072

Cover with Winged locks - Sendzimir galvanized and Peraluman aluminium
Preset for earthing plait and safety cord

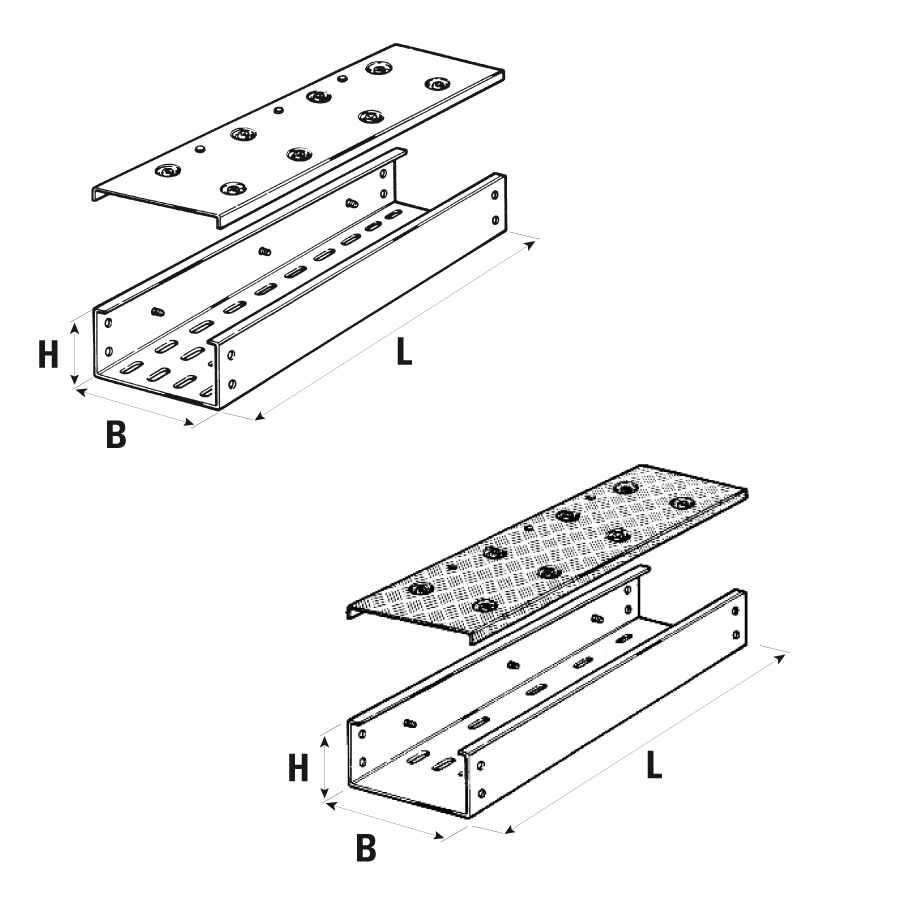

Dimension brush Thickness Weight Technical Info Code
H W (B) [mm] [Kg/m] L N°Wings
50 50 1,20 2,24 2000 4 M0 072 0505
75 75 1,20 3,30 2000 4 M0 072 0707
100 100 1,20 4,23 2000 4 M0 072 1010
100 100 2,00 7,12 2000 4 M0 072 1010
100 100 2,00 6,24 2000 4 M0 072 1010
100 150 1,50 6,50 2000 8 M0 072 1015
100 150 2,00 8,70 2000 8 M0 072 1015
100 150 2,00 7,48 2000 8 M0 072 1015
100 200 1,50 7,63 2000 8 M0 072 1020
100 200 2,00 10,20 2000 8 M0 072 1020
100 200 2,00 8,64 2000 8 M0 072 1020
100 300 1,50 9,87 2000 8 M0 072 1030
100 300 2,00 13,20 2000 8 M0 072 1030
100 300 2,00 10,91 2000 8 M0 072 1030
100 400 2,00 16,18 2000 8 M0 072 1040
100 400 2,00 13,19 2000 8 M0 072 1040
100 500 2,00 19,16 2000 8 M0 072 1050
100 500 2,00 15,47 2000 8 M0 072 1050
100 600 2,00 22,16 2000 8 M0 072 1060
100 600 2,00 17,75 2000 8 M0 072 1060
150 300 2,00 14,78 2000 8 M0 072 1530
150 400 2,00 17,78 2000 8 M0 072 1540

50 Sendzimir basis +”peraluman” aluminium cover (thickness 3,00 + 1,50mm)

Not walkable per UL standard

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
20 Sendzimir galvanized 20/10 trampling
50 Sendzimir basis+peraluman aluminium Cover
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

y= Max load (Kg/m)
x= Distance between supports (m)

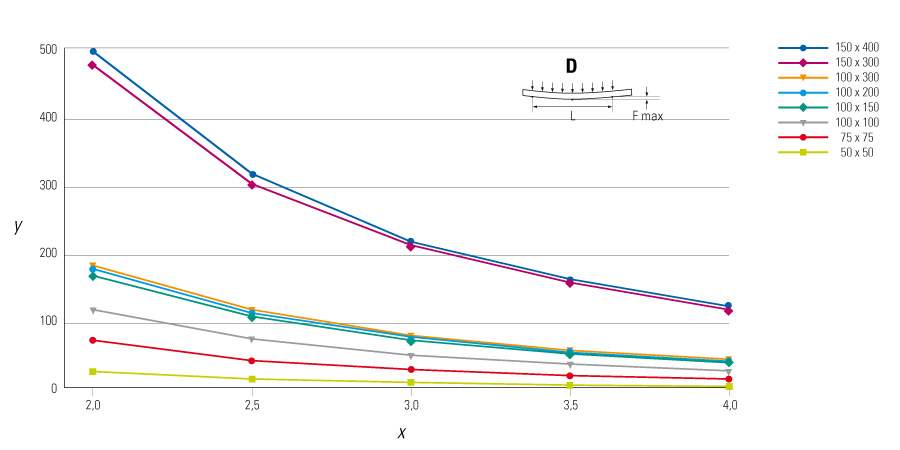

D= Uniform load

y= Max load (Kg/m)
x= Distance between supports (m)

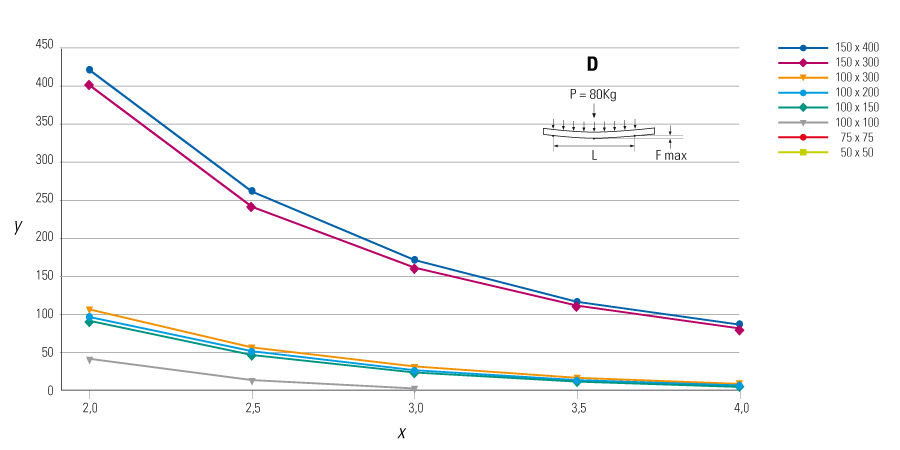

D= Uniform load + concentrated load 80Kg.

Slots dimensions on the botton of trunking: 25x7
Assembly with: T0 620 0612 + T0 624 0600
