Code | ||||
|---|---|---|---|---|---|
| T0 602 0000 | |||||
| 01 | Galvanization (Sendzimir method) - UNI EN 10346 | |
| 37 | Zinc Nickel |
- IMQ
- EN 61537-1 ed.2007
- EN 50085-1:2005 ed EN 50085-2-1:2006
- UL file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark
 |
n. 2 | ø 4x7 | T0 652 0407 |
Not included

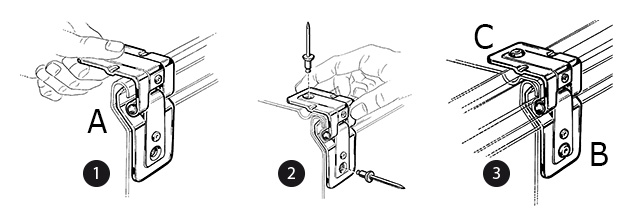

1) Add part “A” under trunking side flap.
2) Block upper mobile part by making hinge rib and cover rib coincide.
3) Use hole “B” in hinge as a template to drill trunking and add a ø 4 rivet.
Use upper hinge hole “C” as a template to drill cover and add a ø 4 rivet.
