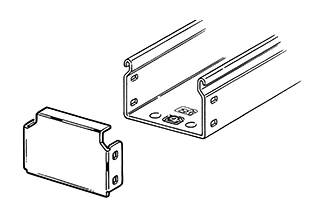

End closure
H 50
H 75
H 100

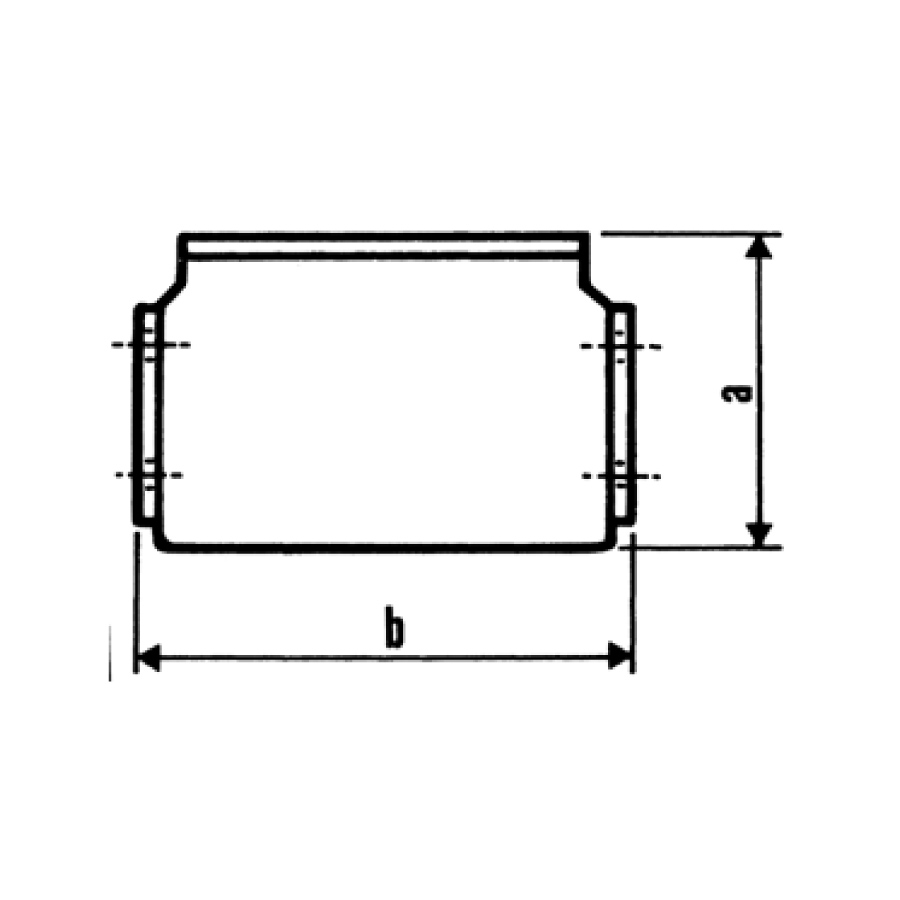

Dimension brush Thickness Weight Technical Info Code
W (B) [mm] [Kg] a w (b)
50 1,00 0,03 51 53 T0 250 0505
100 1,00 0,05 51 103 T0 250 0510
150 1,00 0,08 51 153 T0 250 0515
200 1,00 0,10 51 203 T0 250 0520
300 1,00 0,15 51 303 T0 250 0530
400 1,00 0,19 51 403 T0 250 0540
500 1,00 0,24 51 503 T0 250 0550
600 1,00 0,29 51 603 T0 250 0560
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
11 Grey RAL 7032 - ISO9227-ISO6270-ISO2810
15 Blue RAL 5015 - ISO9227-ISO6270-ISO2810
40 Stainless steel AISI 304 - UNI EN 10088
Certified System

- IMQ
- EN 61537-1 ed.2007
- EN 50085-1:2005 ed EN 50085-2-1:2006
- UL file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

H 50 n. 2 M6x10 / M6x12 T0 620 0610 / T0 620 0512
n. 2 M6 T0 621 0600
for each end closure
H 75-100 n. 4 M6x10 / M6X12 T0 620 0610 / T0 620 0612
n. 4 M6 T0 621 0600
for each end closure

Not included

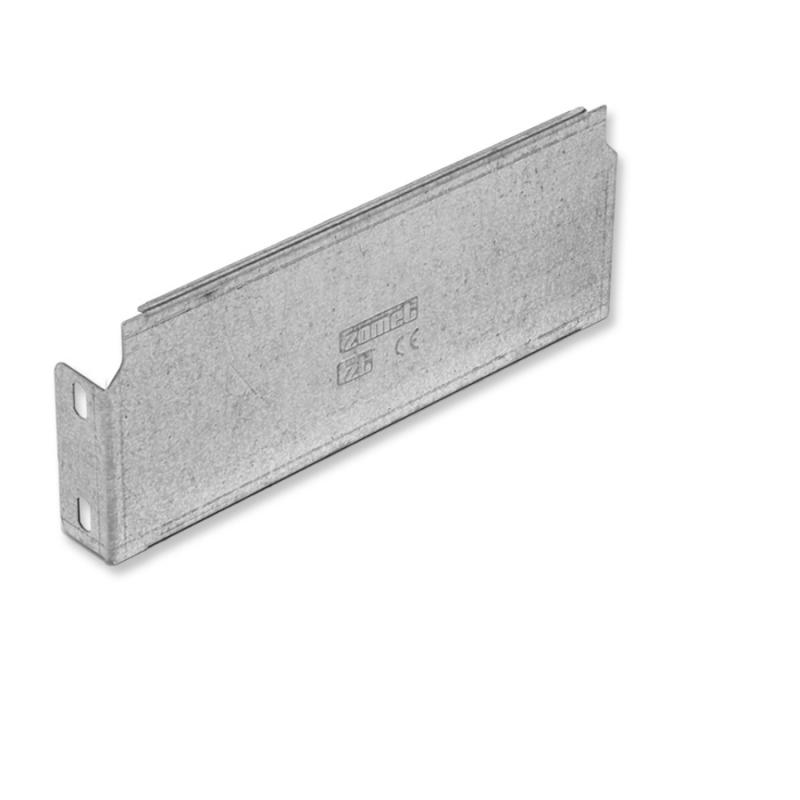

End closure
