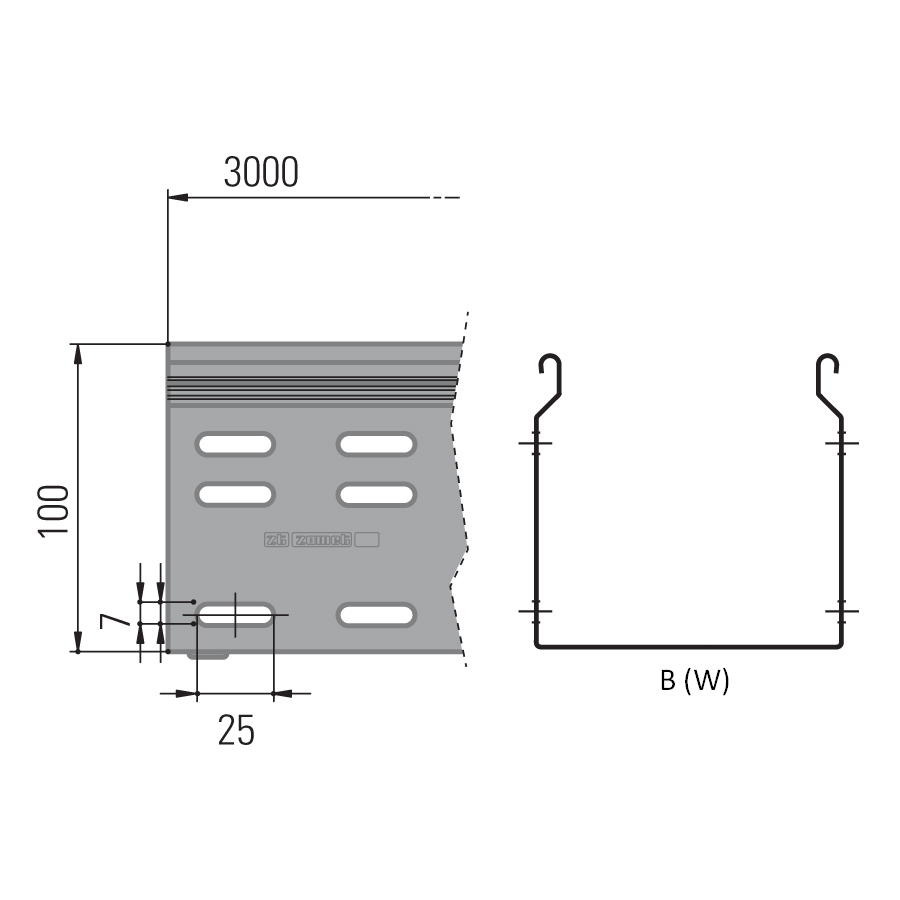

Zamet - ZT - T0 018 - Fully perforated cable tray

Fully perforated cable tray

- IP20 with COVER
*B.75 - Dimension on demand

Dimension							Thickness	Conductor section	Weight	Length	SWL (N/m) as function of the span (S) [m] -EN 61537				Usable section of channel [mm²] - EN 50085-2-1						Minimum distance	Bottom slots	Code

W (B)							[mm]	[mm2]	[Kg/m]	[mm]	1,5 m	2 m	2,5 m	3 m	1,5 m	2 m	2,5 m	3 m	3,5 m	4 m	[mm]	N°

100	01	03	11	15	40	41	0,80	254,40	1,83	3000	313	219	153	107	9600	9600	5000	5000	5000	5000	20,5	2	T0 018 1010
150	01	03	11	15	40	41	0,80	294,40	2,10	3000	461	311	218	128	14400	14400	7500	7500	7500	7500	20,5	4	T0 018 1015
200	01	03	11	15	40	41	0,80	334,40	2,38	3000	603	394	275	142	19200	19200	10000	10000	10000	9250	20,5	6	T0 018 1020
300	01	03	11	15	40	41	1,00	518,00	3,65	3000	871	537	375	160	28800	28800	15000	15000	15000	12250	20,5	10	T0 018 1030
400	01	03	11	15	40	41	1,00	618,00	4,33	3000	1120	656	457	171	38400	38400	20000	20000	18571	12500	20,5	14	T0 018 1040
500	01	03	11	15	40	41	1,20	859,20	6,00	3000	1352	756	526	178	48000	48000	25000	25000	22857	15250	20,5	18	T0 018 1050
600	01	03	11	15	40	41	1,20	979,20	6,82	3000	1569	902	627	196	57600	57600	30000	30000	23142	15500	20,5	22	T0 018 1060

List of Coatings

	01	Galvanization (Sendzimir method) - UNI EN 10346
	03	Hot dip galvanizing - UNI EN ISO 1461
	11	Grey RAL 7032 - ISO9227-ISO6270-ISO2810
	15	Blue RAL 5015 - ISO9227-ISO6270-ISO2810
	40	Stainless steel AISI 304 - UNI EN 10088
	41	Stainless steel AISI 316L - UNI EN 10088

Certified System

Norm EN 50085-2-1
Cable trunking systems and cable ducting systems for electrical installations
Part 2-1: Cable trunking systems and cable ducting systems intended for
mounting on walls and ceilings.
10.4 Linear deflection test
The test sample is subjected to an evenly distributed load of 1 g/mm2
metre length of the declared usable area for cables.

Norm EN 61537-1 ed.2007
Cable management
Cable tray systems and cable ladder systems

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark

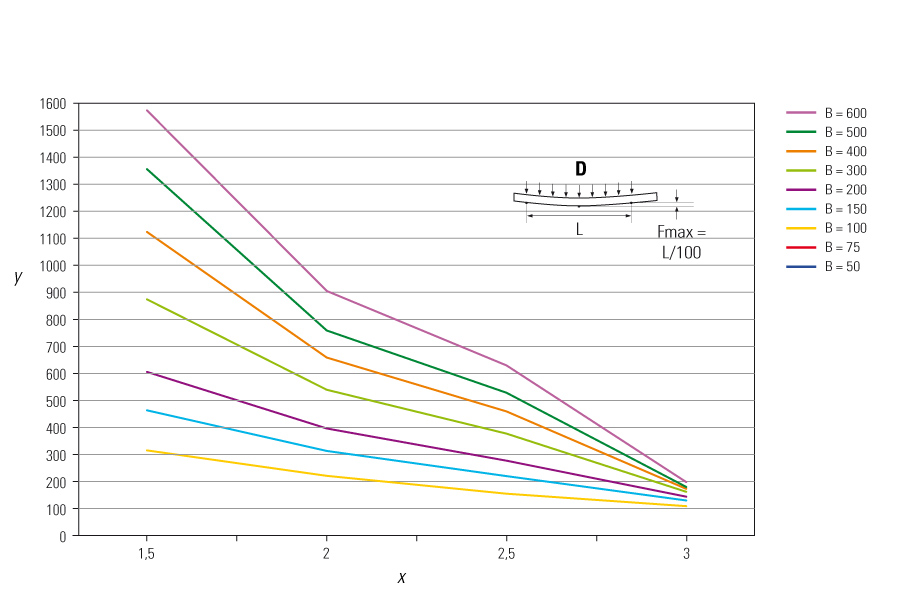

Load Diagram

EN 61537-1

y= Max load (N/m)
x= Distance between supports (m)
D= Uniform load
