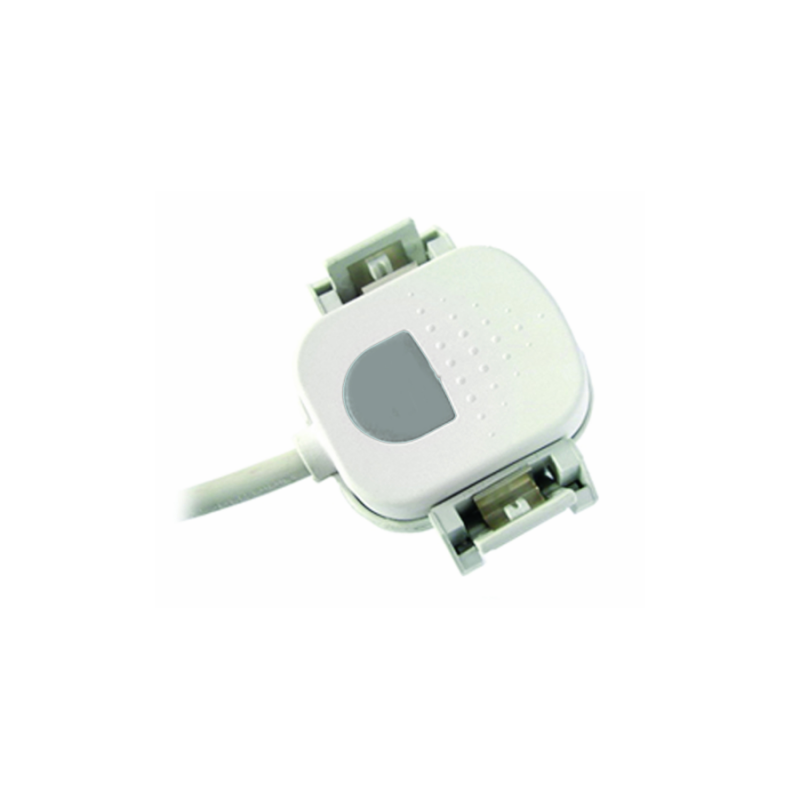

SM10AC Plug

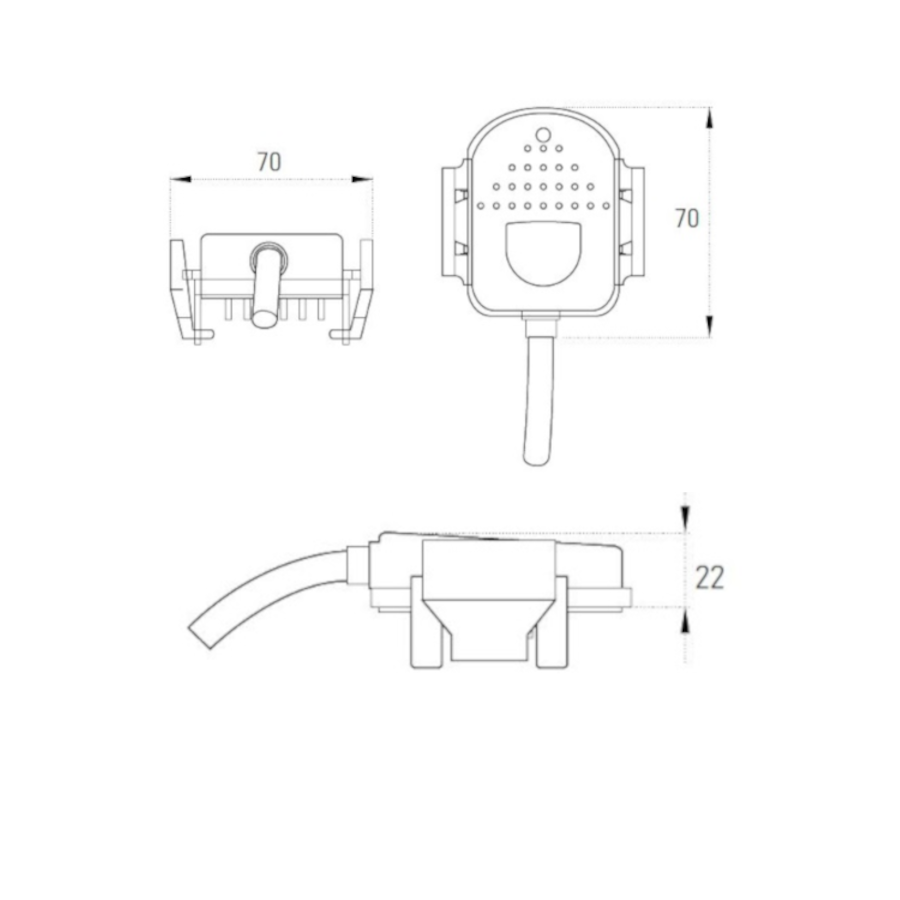

Dimension Weight Technical Info Cable lengh Cable section Code
W (B) H [Kg/pcs] In (A) Conductors Technical ID Precabling mm mm² max
70 22 0,165 10A 1P+N+T Blu N + L3 + PE 800 3 x 1,0 SM 10AC BN
70 22 0,165 10A 1P+N+T Giallo N + L2 + PE 800 3 x 1,0 SM 10AC GN
70 22 0,165 10A 1P+N+T Rosso N + L1 + PE 800 3 x 1,0 SM 10AC RN
70 22 0,165 10A 1P+N+T Verde L4 + L5 + PE 800 3 x 1,0 SM 10AC VN
In accordance to:

CEI EN 61439-6 / IEC 61439-6

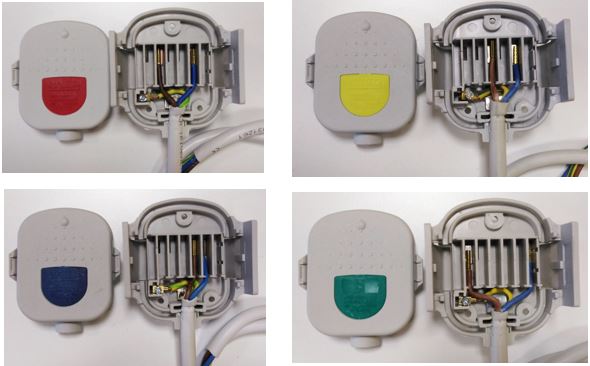

Practical plugs with the possibility of changing the position of the contacts

SM10AC Plug
