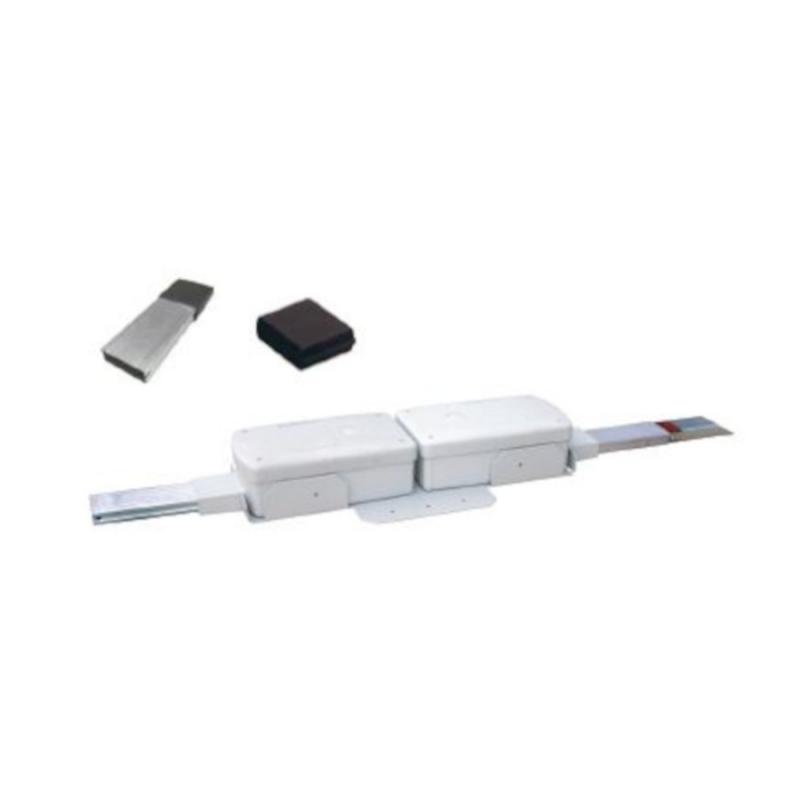

4/6 - pole 40A intermediate feed unit

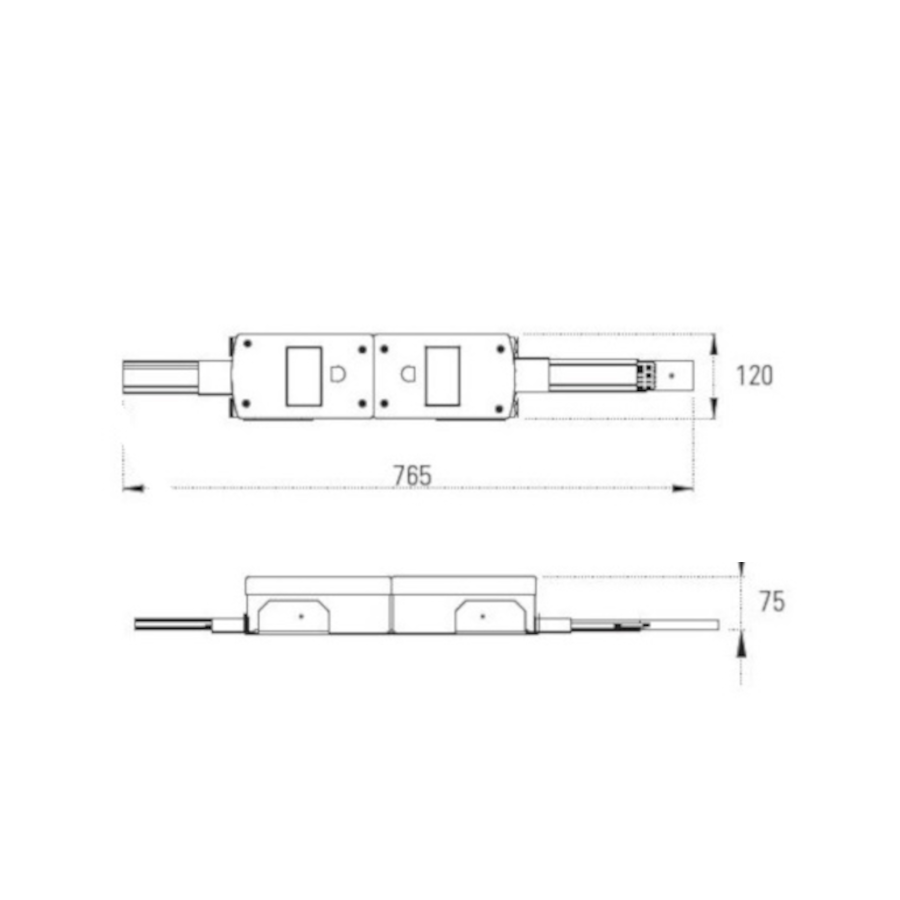

Dimension Weight Technical Info Terminal block Compatibility Code
W (B) H [Kg/pcs] In (A) No.Poli mm² mm2
765 75 2,624 40A 5P+N+PE 6 + 6 x 16 BA40A305S - BA40A3065S AC 40A6

Header closure included

In accordance to:

CEI EN 61439-6 / IEC 61439-6

The manufacturer pre-identifies the power supply terminals.
If the arrangement of the contacts is modified during the assembly,
the installer has to replace the original layout with a new one, reflecting the new solution.

4/6 - pole 40A intermediate feed unit
