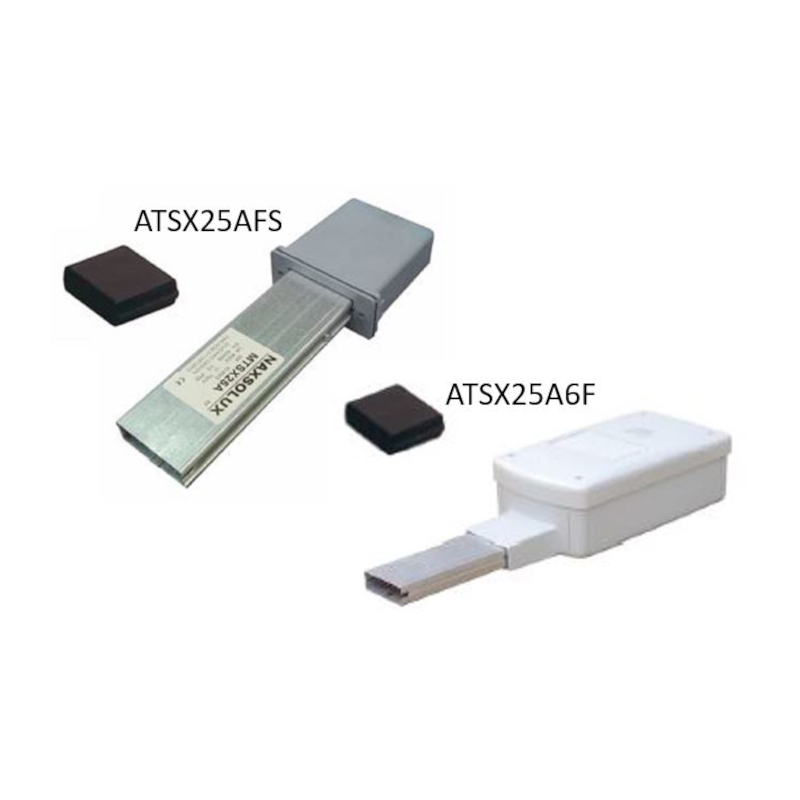

2/4/6 - pole 25A left power supply

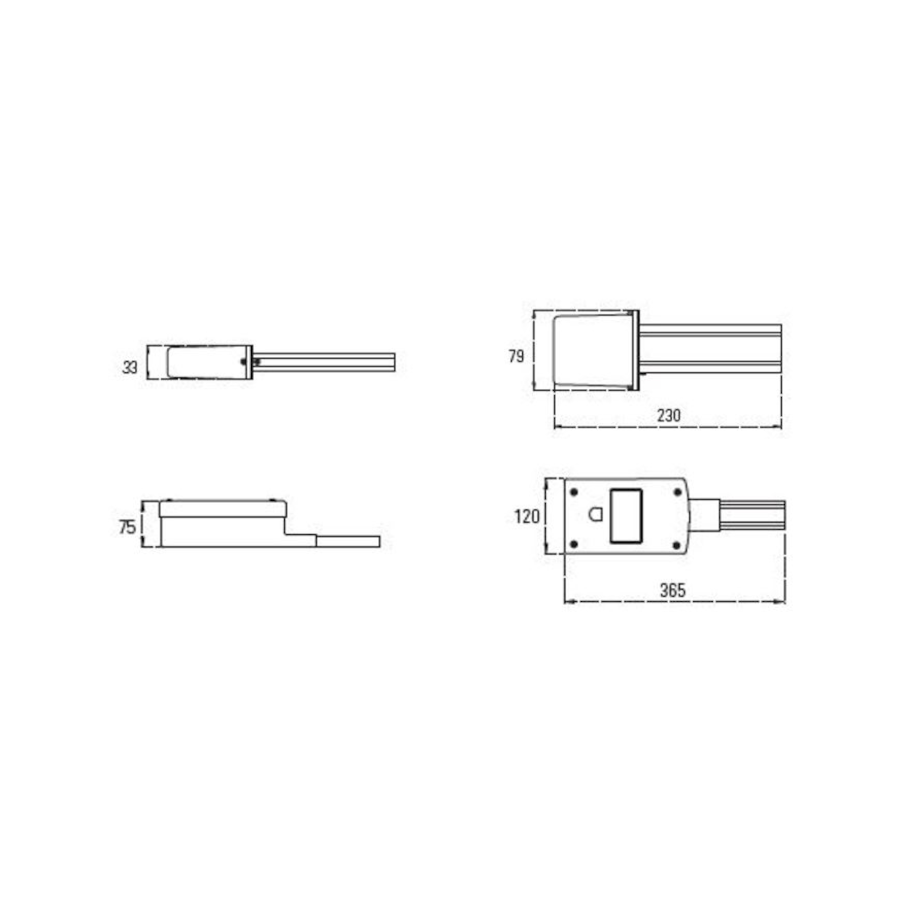

Dimension Weight Technical Info Terminal block Compatibility Code
W (B) H [Kg/pcs] In (A) No.Poli mm² mm2
365 75 0,583 25A 5P+N+PE 6x6 BA25A3065S ATS X25A 6F
230 33 0,220 25A 3P+N+PE 4x6 BA25A3052S - BA25A305S ATS X25A FS

Header closure included

In accordance to:

CEI EN 61439-6 / IEC 61439-6

1 - Head feeder assembly
2 - End cup assembly

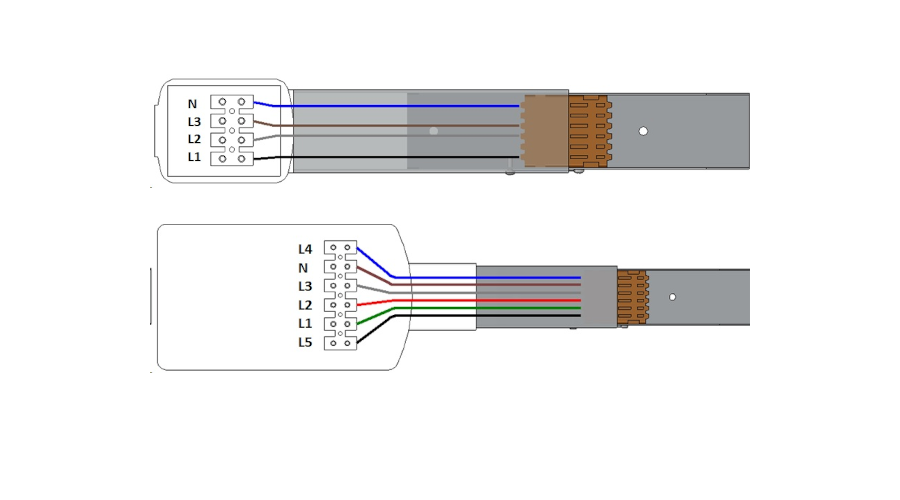

The manufacturer pre-identifies the power supply terminals.
If the arrangement of the contacts is modified during the assembly,
the installer has to replace the original layout with a new one, reflecting the new solution.

2/4/6 - pole 25A left power supply
