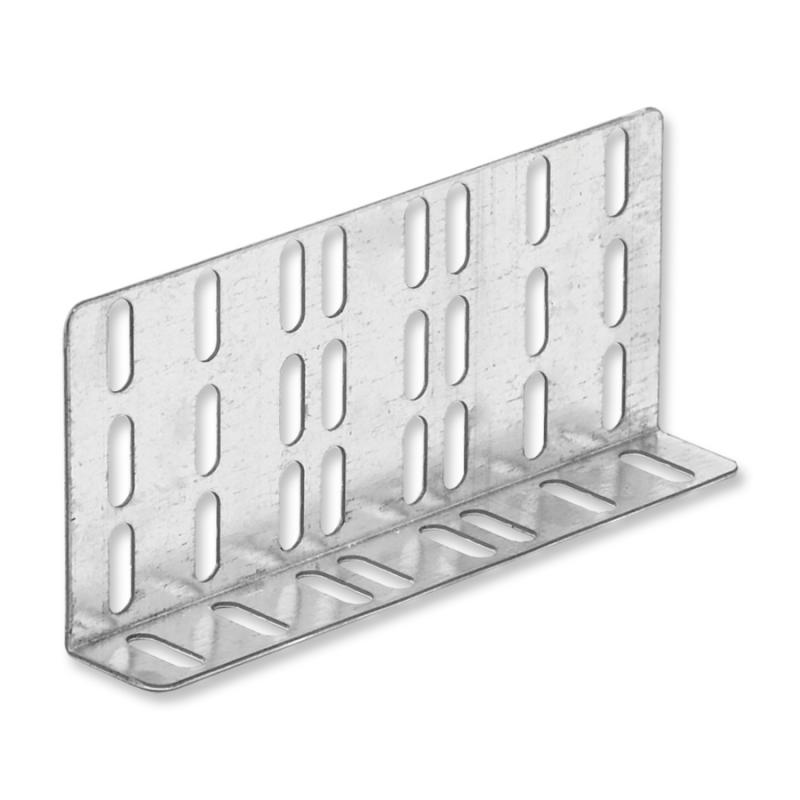

Outside/Inside angle plate - S3 212

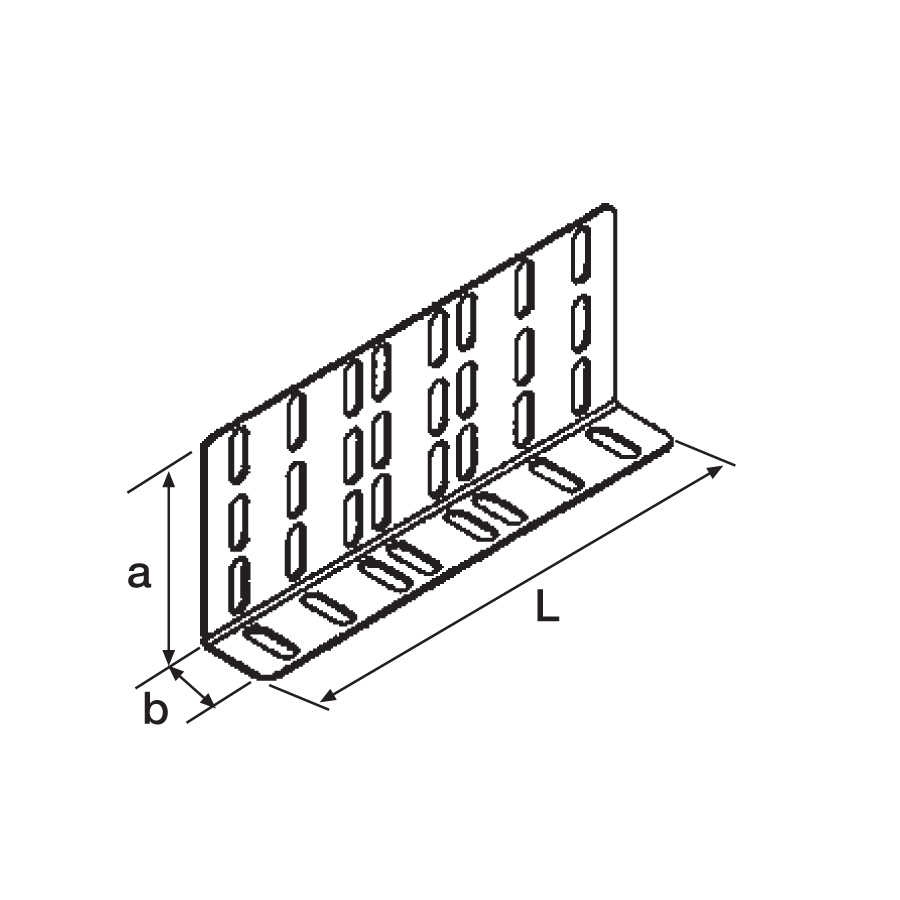

Dimension brush Thickness Weight Technical Info Code
H [mm] [Kg] a w (b) L
150 1,50 0,25 126 28,5 180 S3 212 0015

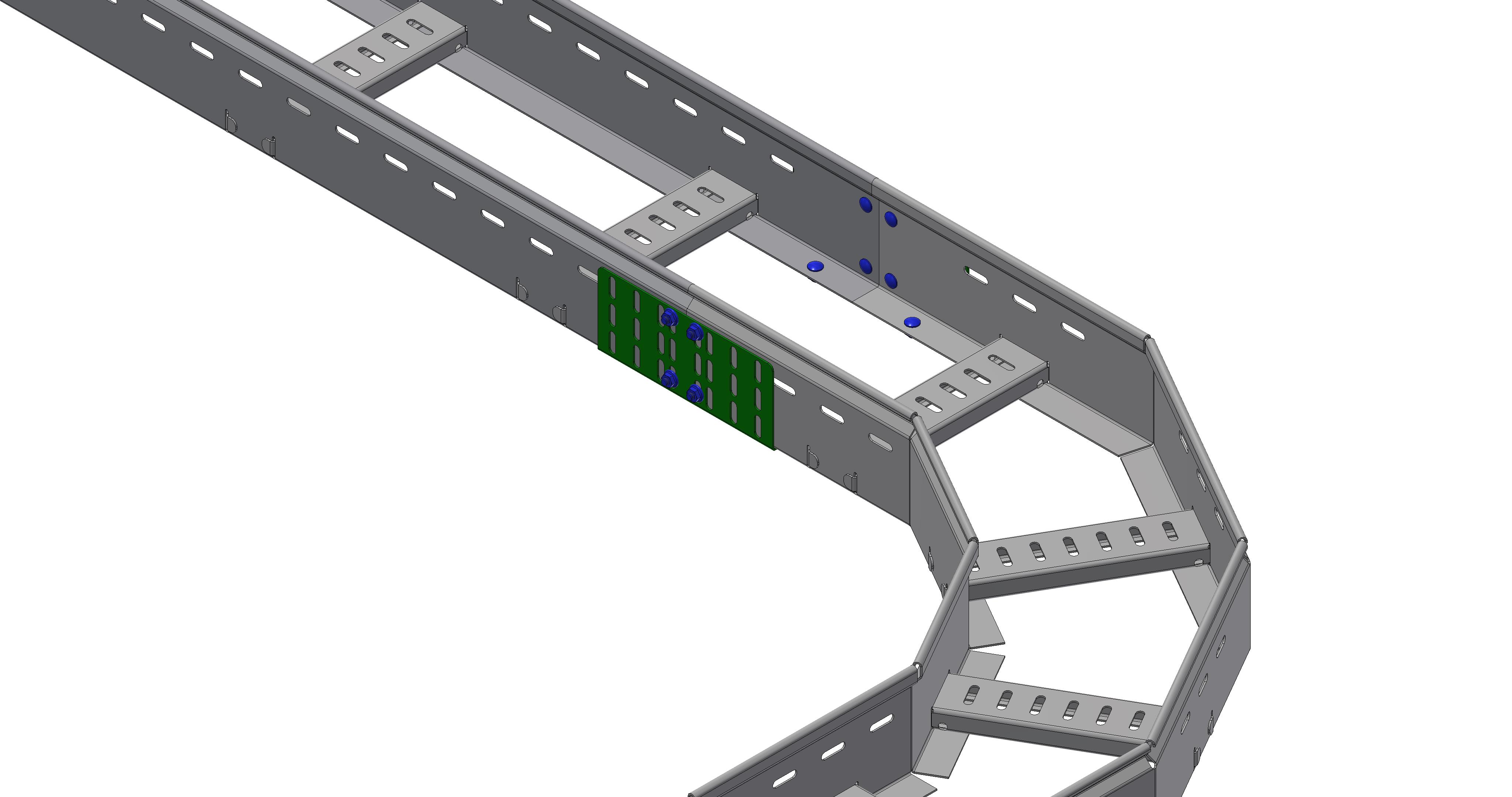

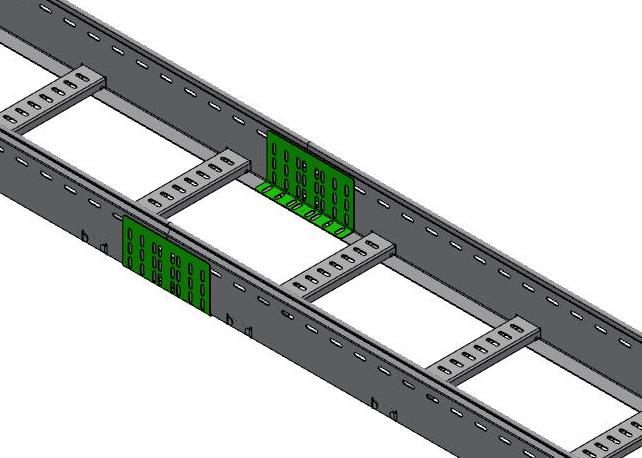

For cable ladder:
- H. 75: T0 212 0007 joint to be used
- H.100-120: T0 212 0010 joint to be used

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
40 Stainless steel AISI 304 - UNI EN 10088
Certified System

EN 61537-1 ed.2007- (Rif: Norm limitation)
IMQ

n. 6 M6x10 / M6x12 T0 620 0610 / T0 620 0612 for each joint
n. 6 M6 T0 621 0600

Not included

Outside/Inside angle plate - S3 212
