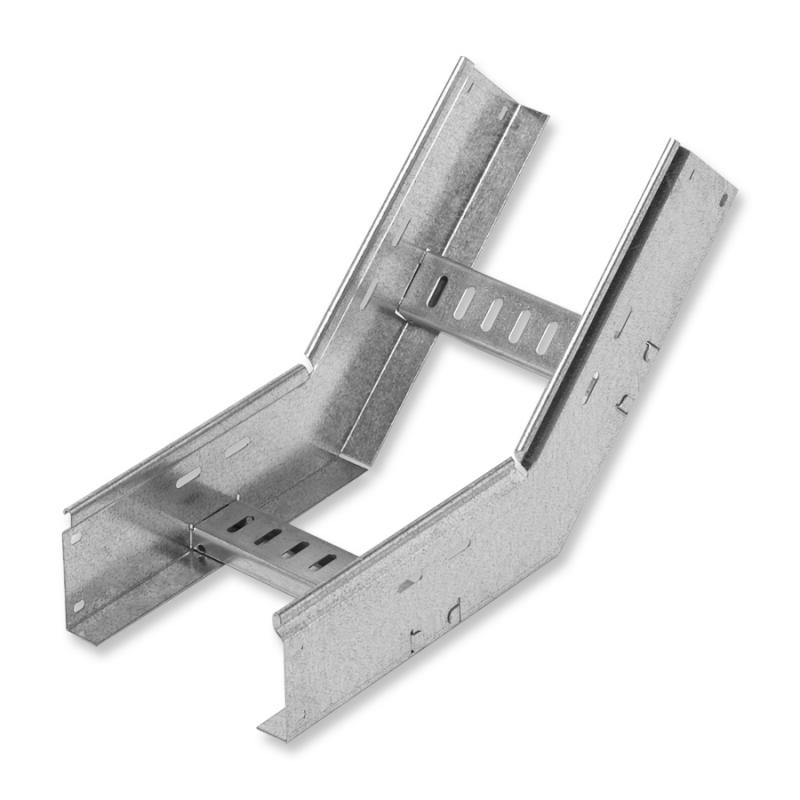

45° Inside Elbow
Dimension brush Thickness Weight Technical Info Code

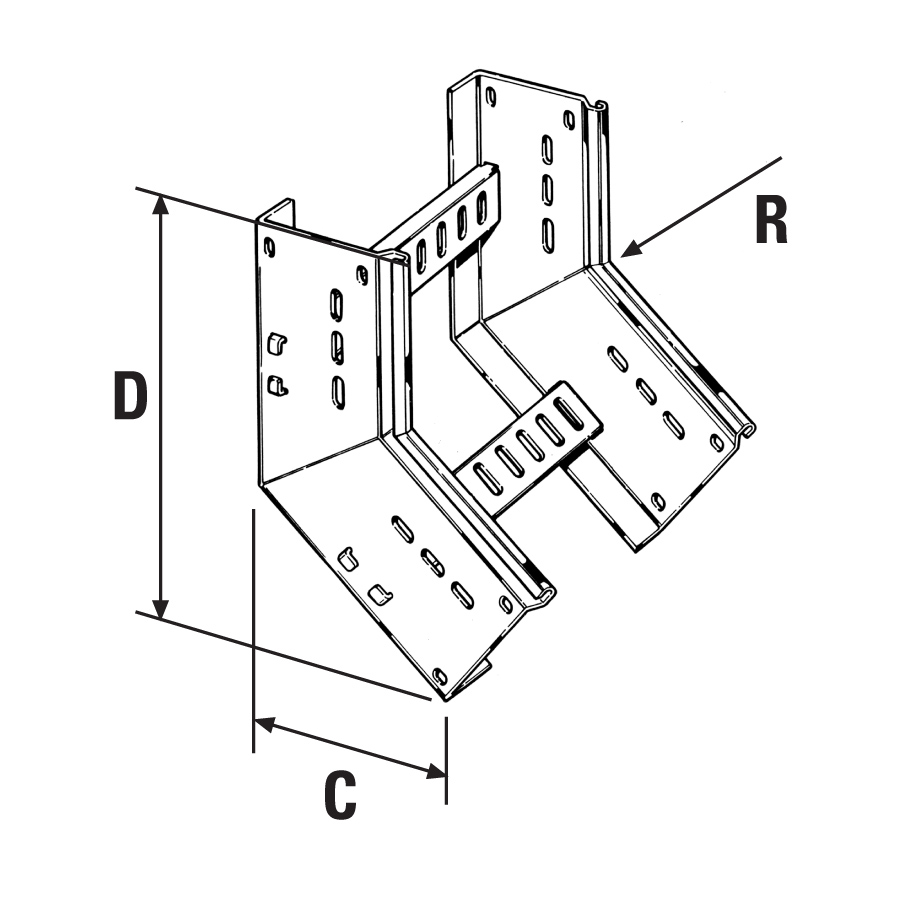

W (B) [mm] [Kg] R c d
100 1,50 1,70 300 269 521 S3 093 0710
200 1,50 1,86 300 269 521 S3 093 0720
300 1,50 2,06 300 269 521 S3 093 0730
400 1,50 2,33 300 269 521 S3 093 0740
500 1,50 2,48 300 269 521 S3 093 0750
600 1,50 2,67 300 269 521 S3 093 0760
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
40 Stainless steel AISI 304 - UNI EN 10088
Certified System

EN 61537-1 ed.2007- (Rif: Norm limitation)
IMQ

45° Inside Elbow
