Zamet - ZS - S3 003 - Cable Ladder riveted rungs

Cable Ladder riveted rungs

Also called: LADDER

H 75

H 100

H 120

H 150

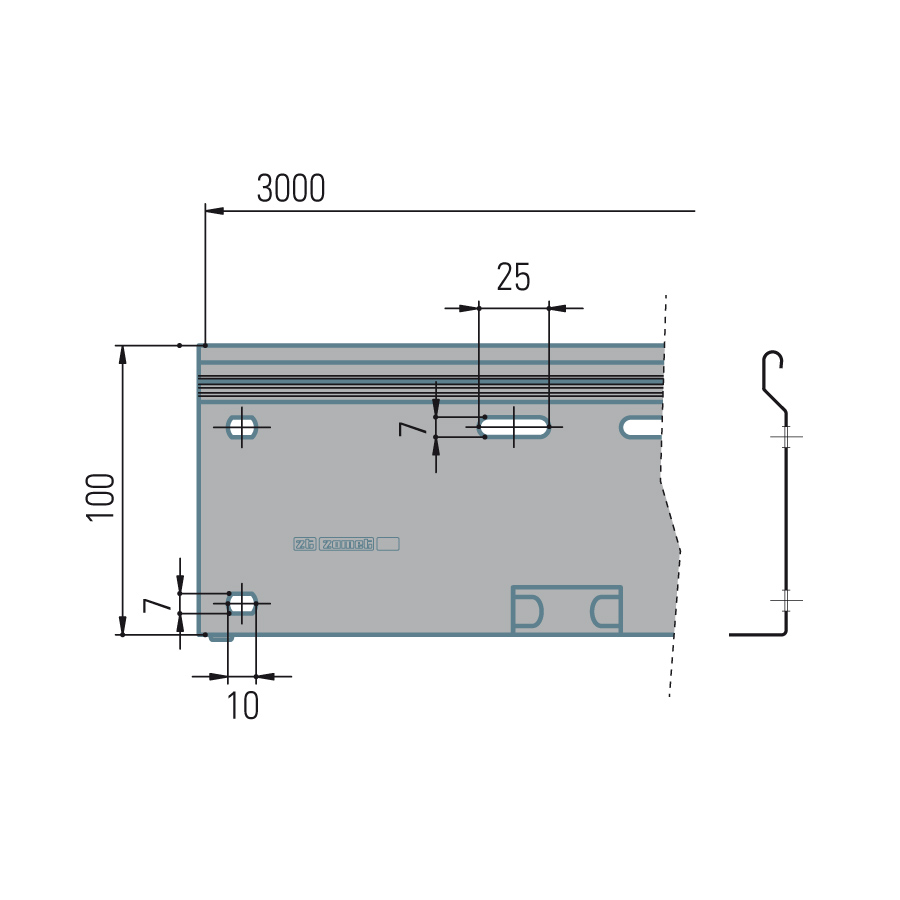

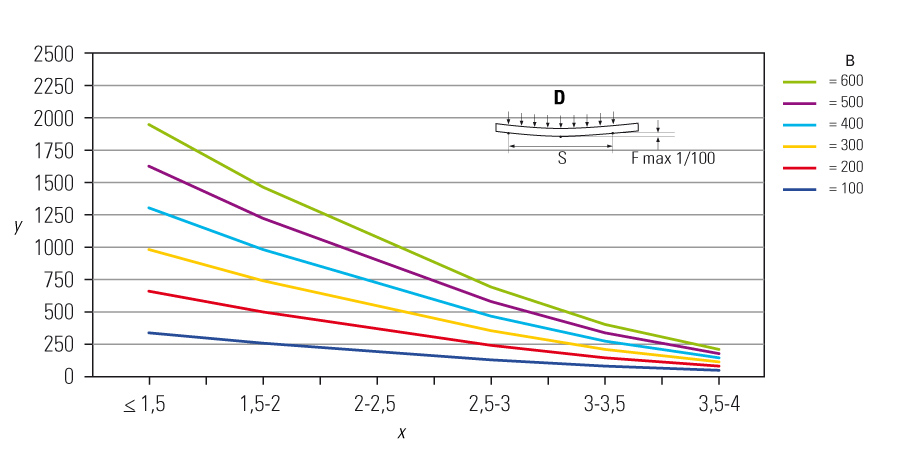

Dimension				Thickness	SWL (N/m) as function of the span (S) [m] - EN 61537						Weight	Length *	Code

W (B)				[mm]	S≤1,5	1,5-2	2-2,5	2,5-3	3-3,5	3,5-4	[Kg/m]	[mm]

100	01	03	40	1,50	326	245	179	114	65	32	3,49	3000	S3 003 1010
200	01	03	40	1,50	653	490	359	228	130	65	3,75	3000	S3 003 1020
300	01	03	40	1,50	980	735	539	343	196	98	4,09	3000	S3 003 1030
400	01	03	40	1,50	1307	980	719	457	261	130	4,54	3000	S3 003 1040
500	01	03	40	1,50	1634	1225	898	572	326	163	4,79	3000	S3 003 1050
600	01	03	40	1,50	1961	1470	1078	686	392	196	5,11	3000	S3 003 1060

**SWL: Norma EN 61537-1 ed 2007
10.4 - Test for SWL (safe working load) of cable tray lengths and cable ladder lengths mounted in the horizontal plane running horizontally on a single span installation.
The practical mod-span deflection at the SWL shall not exceed 1/100th of the span.
The transverse deflection at the SWL shall not exceed 1/20th of the width of the samples.

*Length:
- Bars up to 6000 mm treatment 40 - 41 (Aisi 316L on request)
- Bars up to 6000 mm treatment 03 (riveted and welded crossbars)
