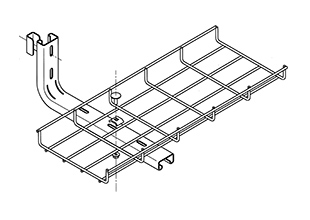

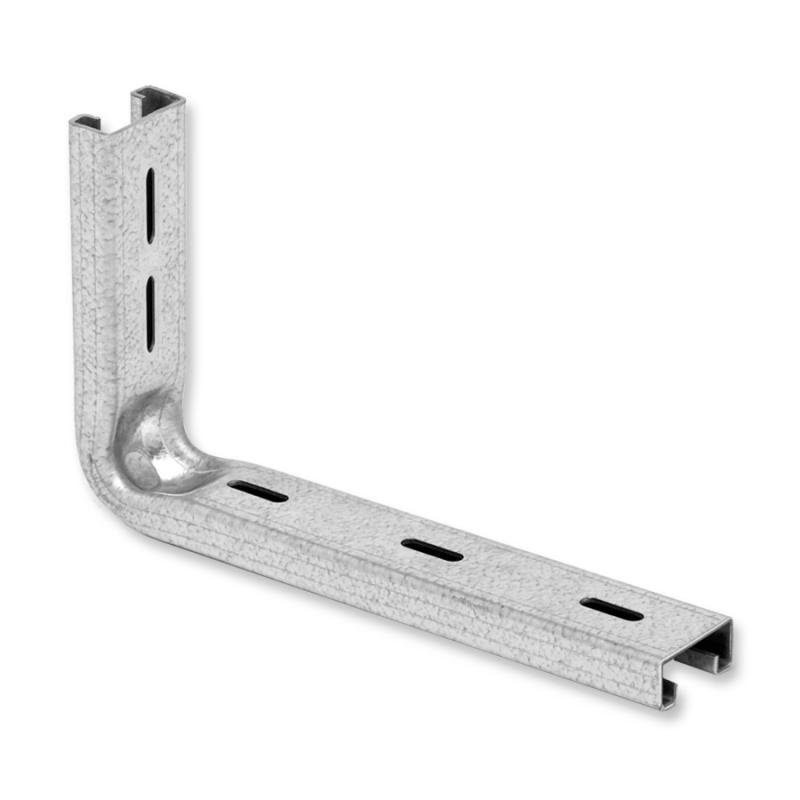

Light bracket - R0 155

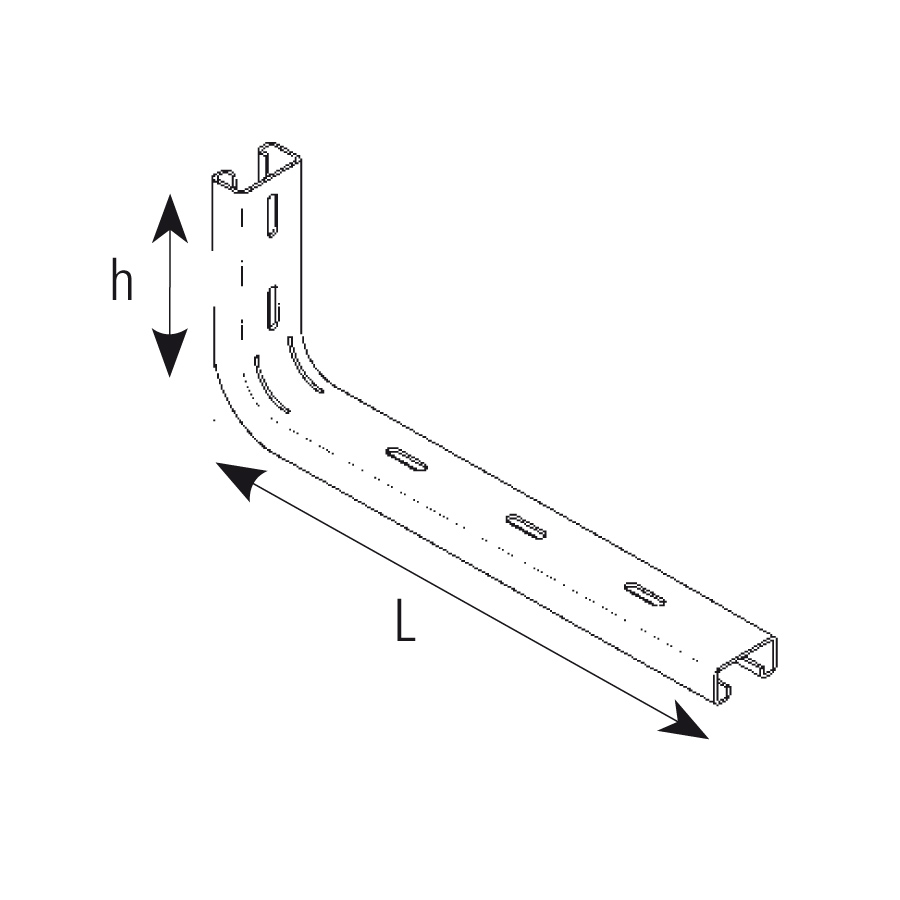

Dimension brush Thickness Weight Technical Info Code
W (B) [mm] [Kg] L h
400 2,00 0,95 422 222 R0 155 0040
500 2,00 1,10 522 222 R0 155 0050

R0 145: from B.150 and up
ZT/ZF: B.600

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
40 Stainless steel AISI 304 - UNI EN 10088
n. 1 M6x20 T0 620 0620
n. 1 M6 T0 621 0600
n. 1 R0 116 0000

Not included

Light bracket - R0 155
