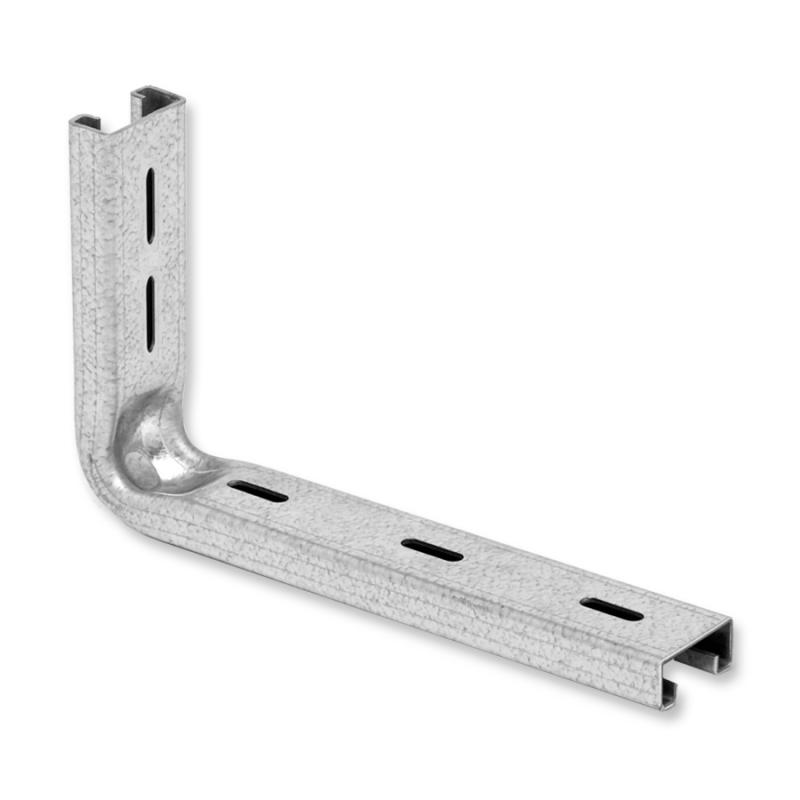

Light bracket - R0 145

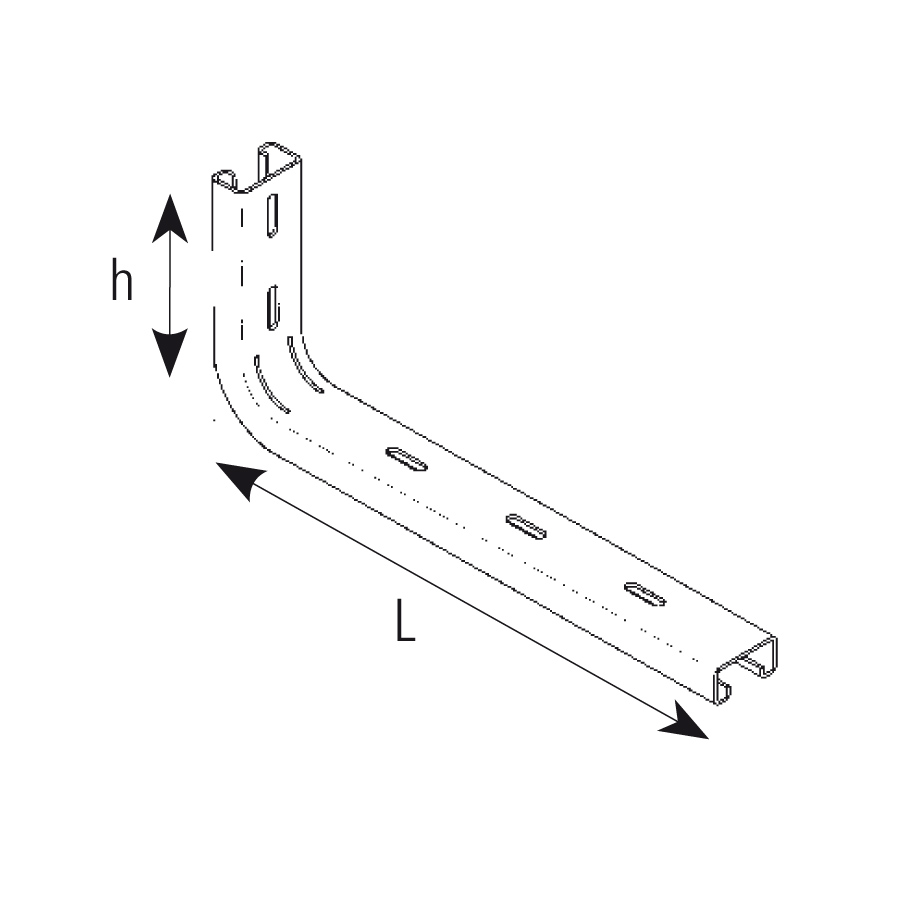

Dimension brush Thickness Weight Technical Info Code
W (B) [mm] [Kg] L h
150 2,00 0,57 172 222 R0 145 0015
200 2,00 0,64 222 222 R0 145 0020
300 2,00 0,80 322 222 R0 145 0030

Code R0 155: from B.400 and up
For B.600 - ZT/ZF serie

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
40 Stainless steel AISI 304 - UNI EN 10088
n. 1 M6x10 T0 620 0620
n. 1 M6 T0 621 0600
n. 1 R0 116 0000

Not included

Light bracket - R0 145
