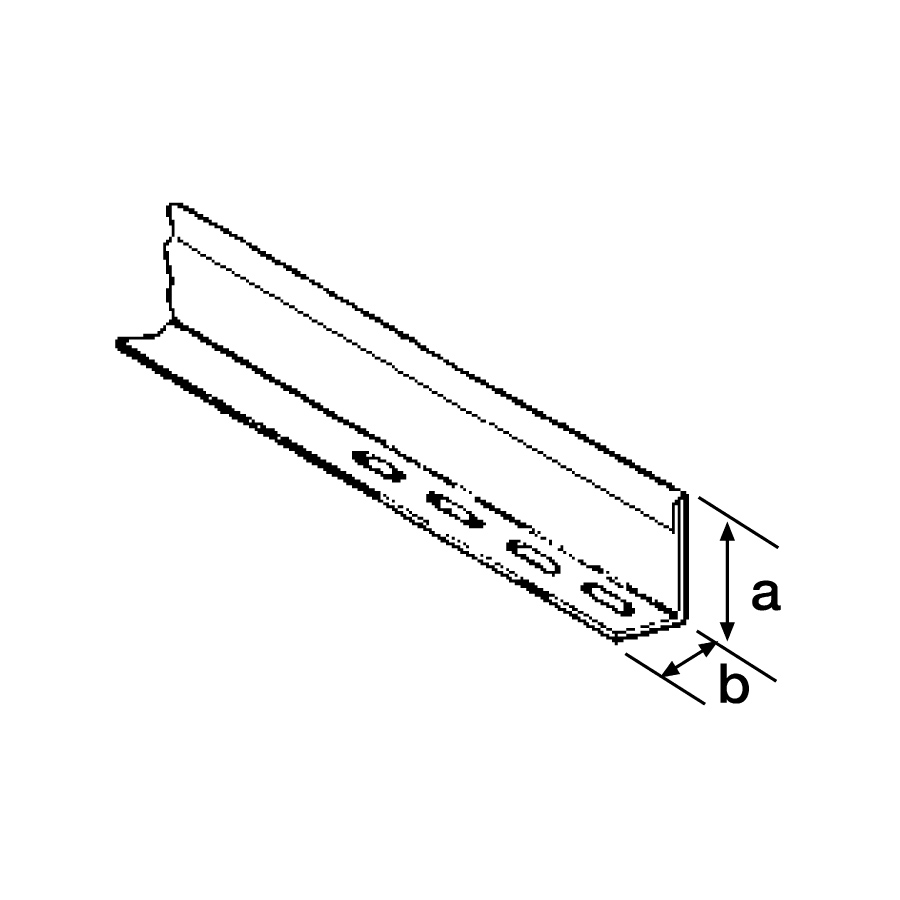

Separator with bent top edge per H: 30 - 60
Dimension brush Thickness Weight Technical Info Code
H [mm] [Kg/m] a w (b)
30 0,80 0,33 25 25 R0 034 0003
60 0,80 0,52 53 25 R0 034 0053

For basket tray H.100 - use T0 034 0010

Assembly:
Joining anchor clamp R0 116 0000 01 + M6x20 to be used - Not included

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
03 Hot dip galvanizing - UNI EN ISO 1461
40 Stainless steel AISI 304 - UNI EN 10088
Separator with bent top edge per H: 30 - 60
