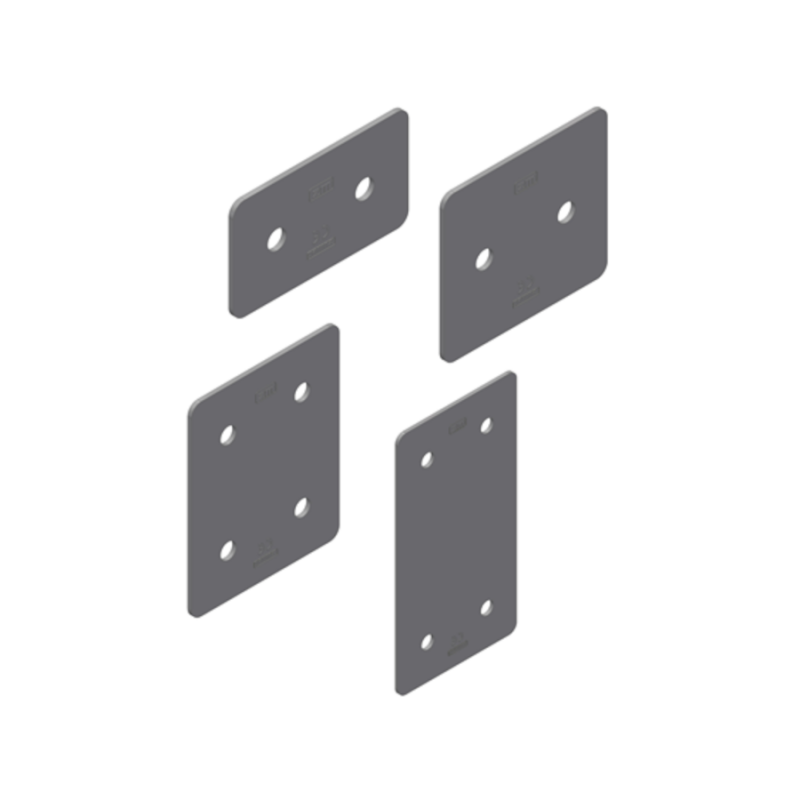

Joint plate

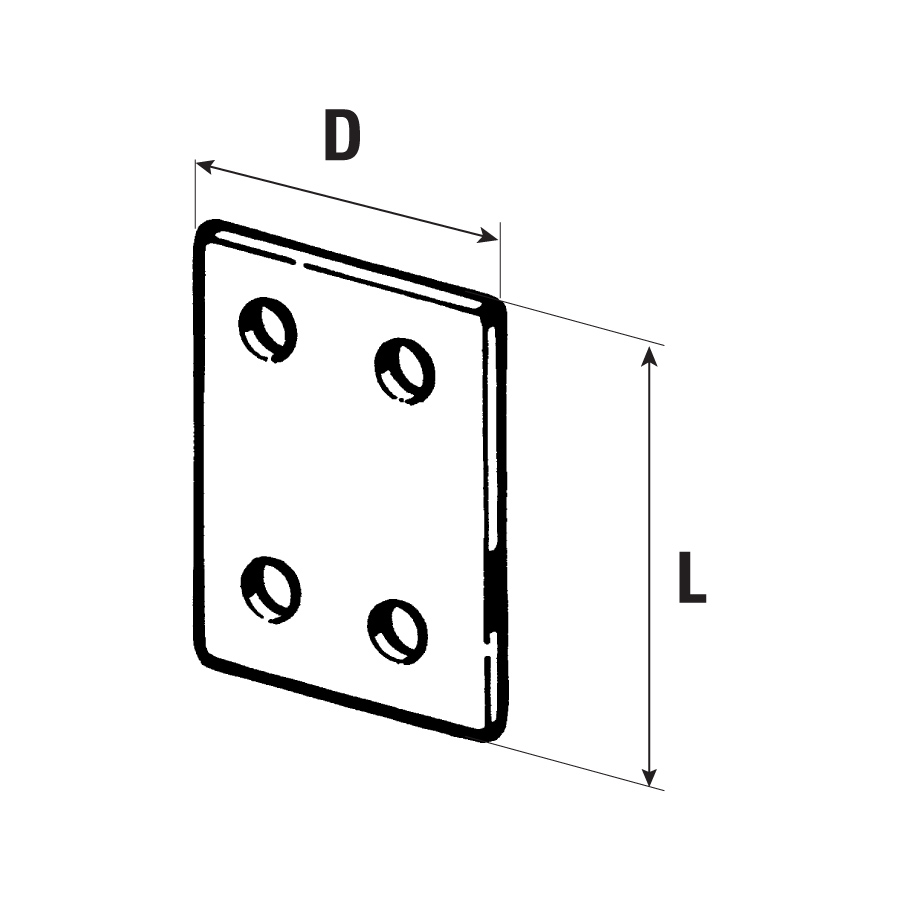

Dimension brush Thickness Weight Technical Info Code
H [mm] [Kg] L d
50 2,00 0.05 44 76 M0 440 0005
75 2,00 0.08 68 76 M0 440 0007
100 2,00 0.11 95 76 M0 440 0010
150 2,00 0.17 145 76 M0 440 0015

H. 50 -75
Assembly with n°2 M0 560 + T0 621
for components without male clutch

H.100 -150
Assembly with n°4 M0 560 + T0 621
for components without male clutch

List of Coatings
brush
20 Sendzimir galvanized 20/10 trampling
Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark
