Zamet - ZM - M0 420 - End closure with threaded inserts

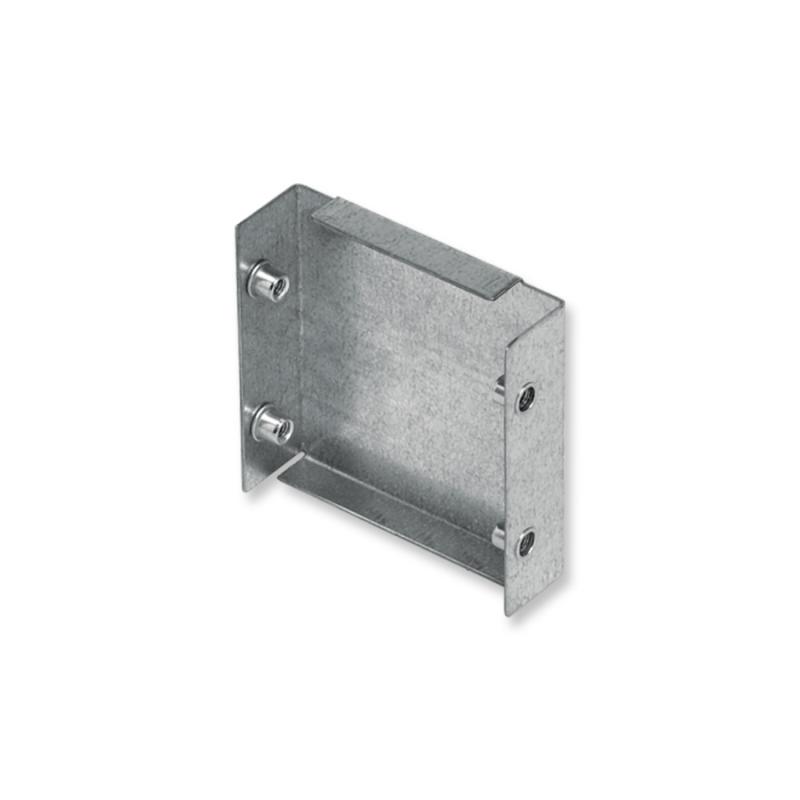

End closure with threaded inserts

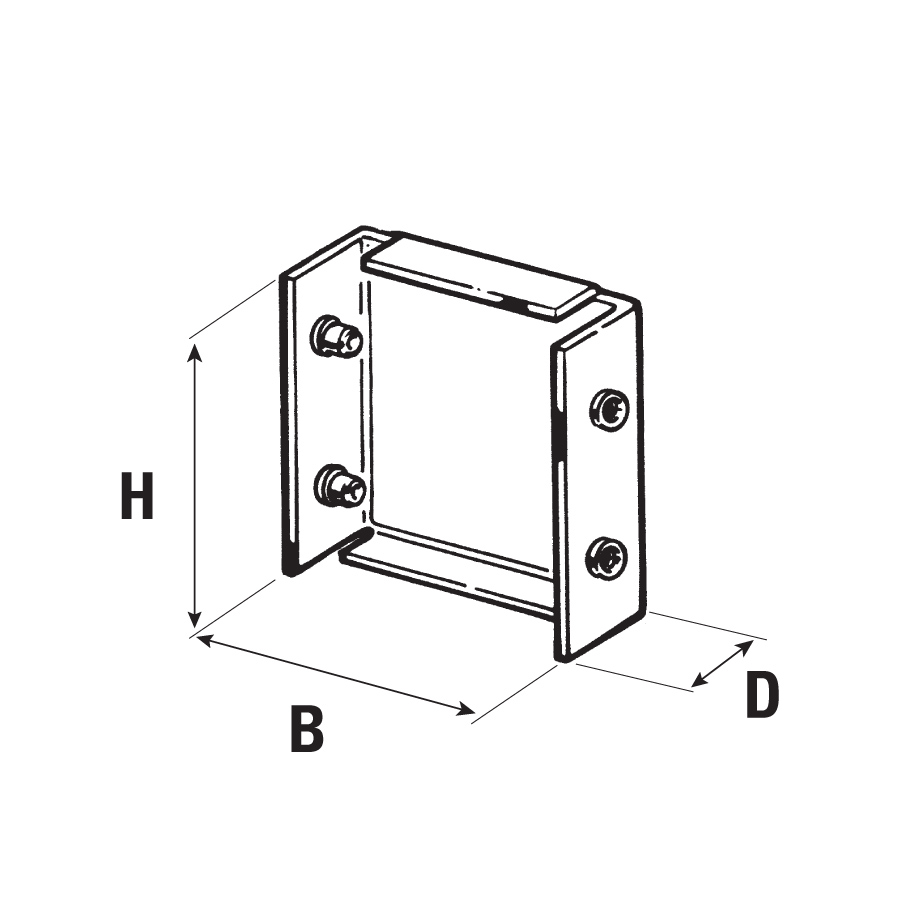

Dimension			Thickness	Weight	Technical Info		Code

H	W (B)		[mm]	[Kg]	d	No.of Inserts Ø6

50	50	01	1,20	0,06	29	2	M0 420 0505
75	75	01	1,20	0,10	29	2	M0 420 0707
100	100	01	1,20	0,17	29	4	M0 420 1010
100	150	01	1,20	0,23	29	4	M0 420 1015
100	200	01	1,20	0,29	29	4	M0 420 1020
100	300	01	1,20	0,45	29	5	M0 420 1030
100	400	01	1,20	0,58	29	5	M0 420 1040
100	500	01	1,20	0,72	29	5	M0 420 1050
100	600	01	1,20	0,85	29	5	M0 420 1060
150	300	01	1,20	0,62	29	5	M0 420 1530
150	400	01	1,20	0,80	29	5	M0 420 1540

List of Coatings

Galvanization (Sendzimir method) - UNI EN 10346

Certified System

UL - file E471266
Attention: for ZT and ZM material sold/assembled in U.S.A. and Canada, please require UL mark
