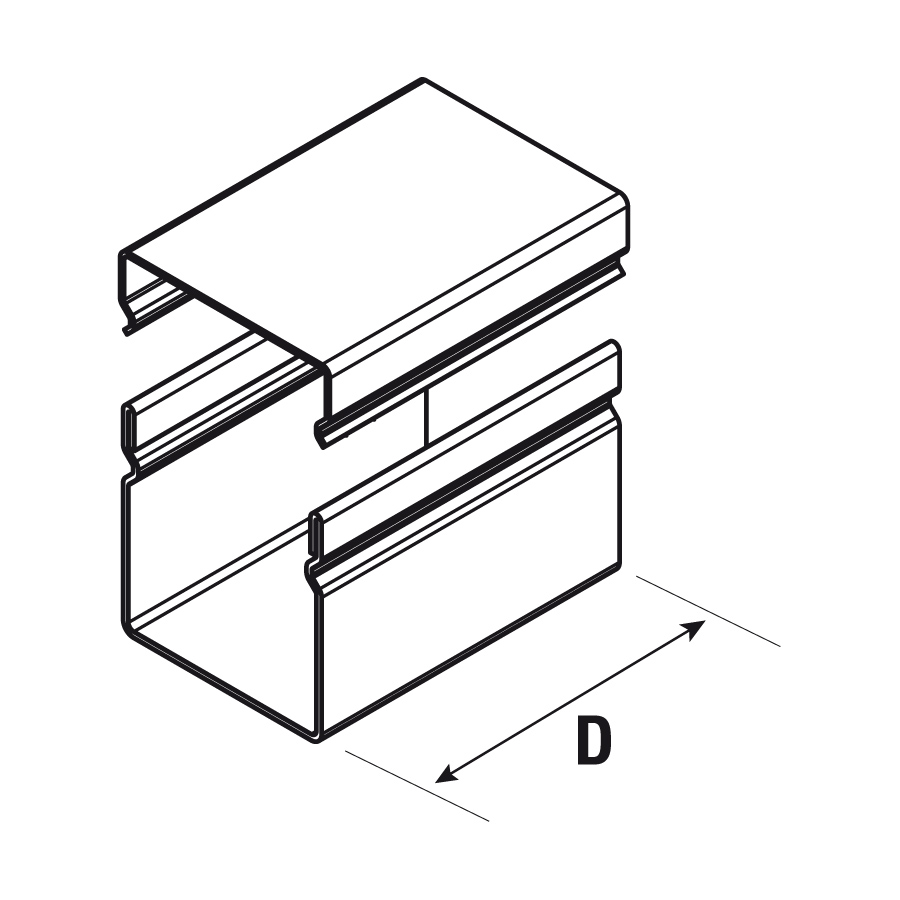

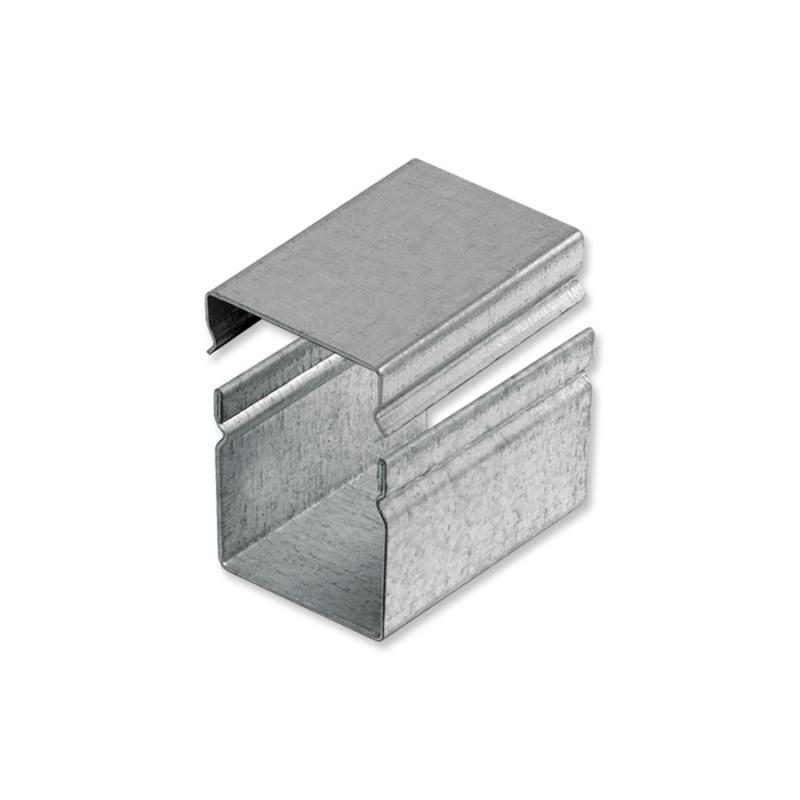

Outside Joint
Dimension brush Thickness Weight Technical Info Code
H W (B) [mm] [Kg] d
25 25 0,80 0,04 45 C0 400 2525
25 40 0,80 0,05 45 C0 400 2540
30 30 0,80 0,04 45 C0 400 3030
40 40 0,80 0,05 45 C0 400 4040
List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
40 Stainless steel AISI 304 - UNI EN 10088

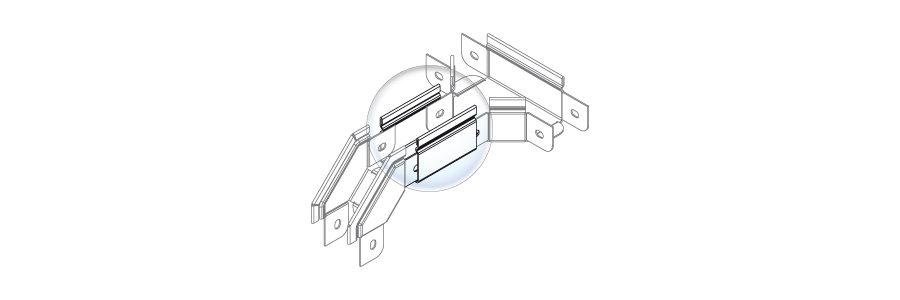

Joint between elbows

Pursuing the click-in logic, and in order to connect elbow to elbow, the use of this joint is necessary to quickly set up the run.

Outside Joint
