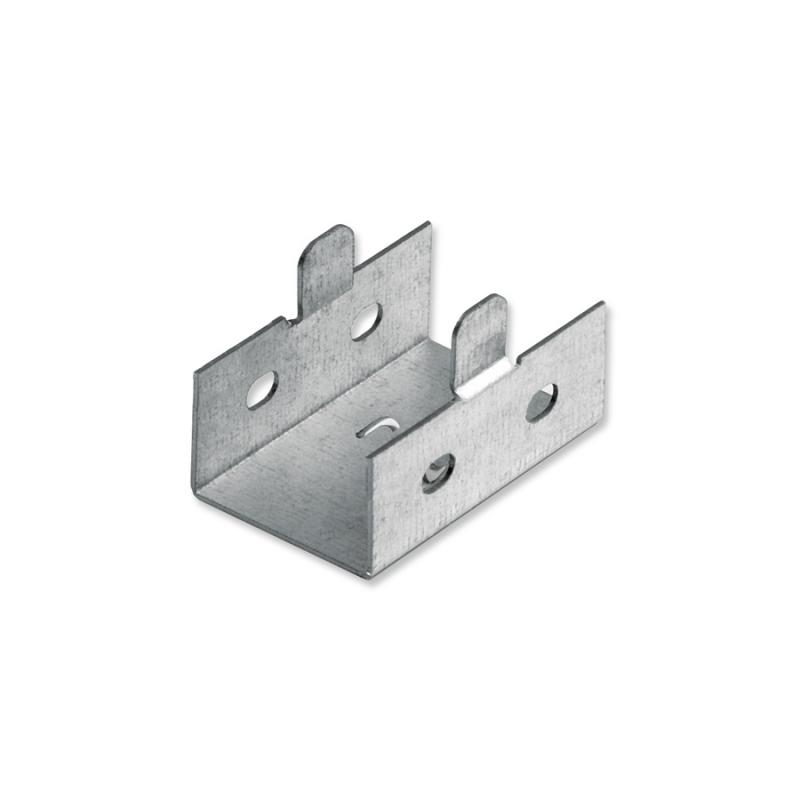

Inside “U” Joint for Trunkings

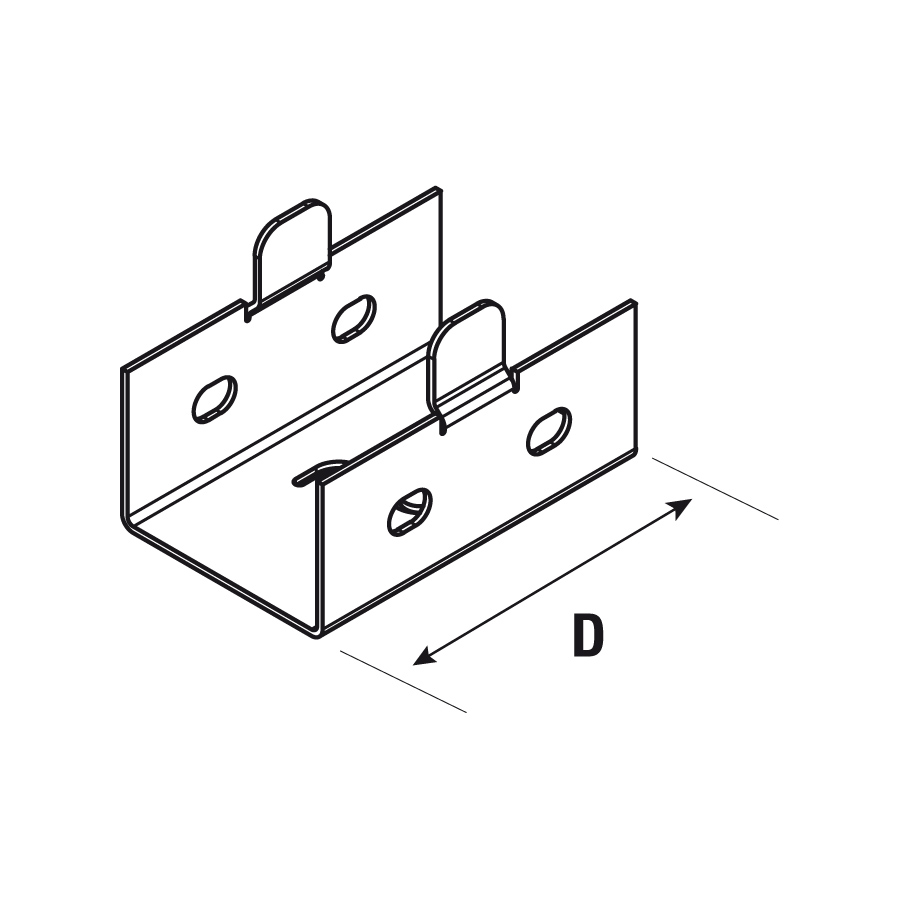

Dimension brush Thickness Weight Technical Info Code
H W (B) [mm] [Kg] d
25 25 0,80 0,01 45 C0 390 2525
25 40 0,80 0,02 45 C0 390 2540
30 30 0,80 0,02 45 C0 390 3030
40 40 0,80 0,03 45 C0 390 4040

Dimensione 60x60 upon request

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
40 Stainless steel AISI 304 - UNI EN 10088

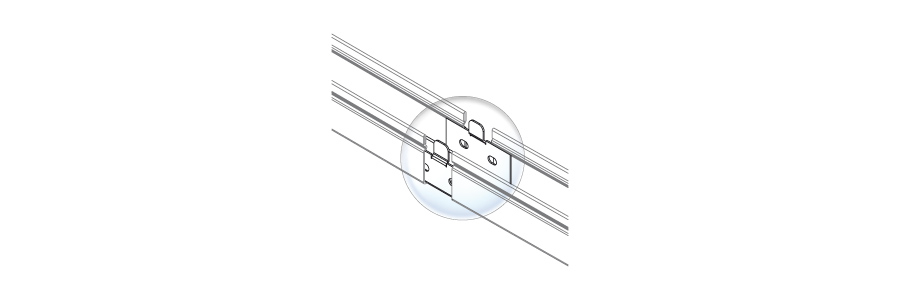

Joint between trunkings

This element allows the quick connection of straight elements. It is a click-in system.

Inside “U” Joint for Trunkings
