Tap off with inspectable cover and DIN rail - 32A
Weight Technical Info Code
[Kg/pcs] In (A) DIN guide Terminal block No.Poles
0.95 32A 4 moduli 10mm²max. 3P+N+PE CAT 32D

To request boxes with higher ratings or for special applications, contact ZAMET to determine the feasibility, suitability and characteristics of the same.
The taps off, with fuse holders, are equipped with three-pole (through neutral) fuse holders.
The fuses are NOT provided.

In accordance to:

CEI EN 61439-6 / IEC 61439-6

Modular switch/fuse holder assembly

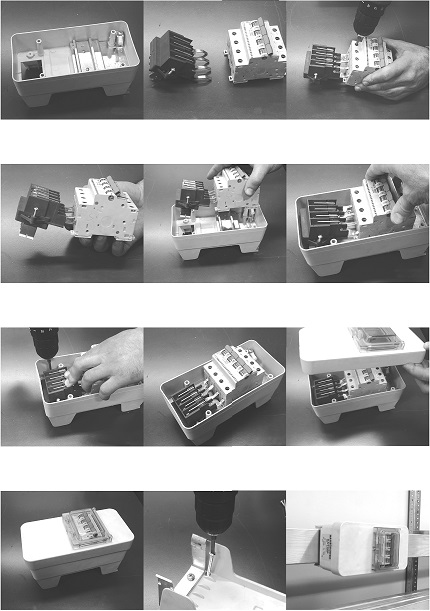

Exemple of installation of CAT-type tap off

Tap off with inspectable cover and DIN rail - 32A
