Tap off with closed cover and fuse holder - 32A
Weight Technical Info Code
[Kg/pcs] In (A) Terminal block Fuse holder No.Poles
1 32A 10mm²max. 10 x 38 3P+N+PE CAT 32FC

To request boxes with higher ratings or for special applications, contact ZAMET to determine the feasibility, suitability and characteristics of the same.
The taps off, with fuse holders, are equipped with three-pole (through neutral) fuse holders.
The fuses are NOT provided.

In accordance to:

CEI EN 61439-6 / IEC 61439-6

Modular switch/fuse holder assembly

Exemple of installation of CAT-type tap off

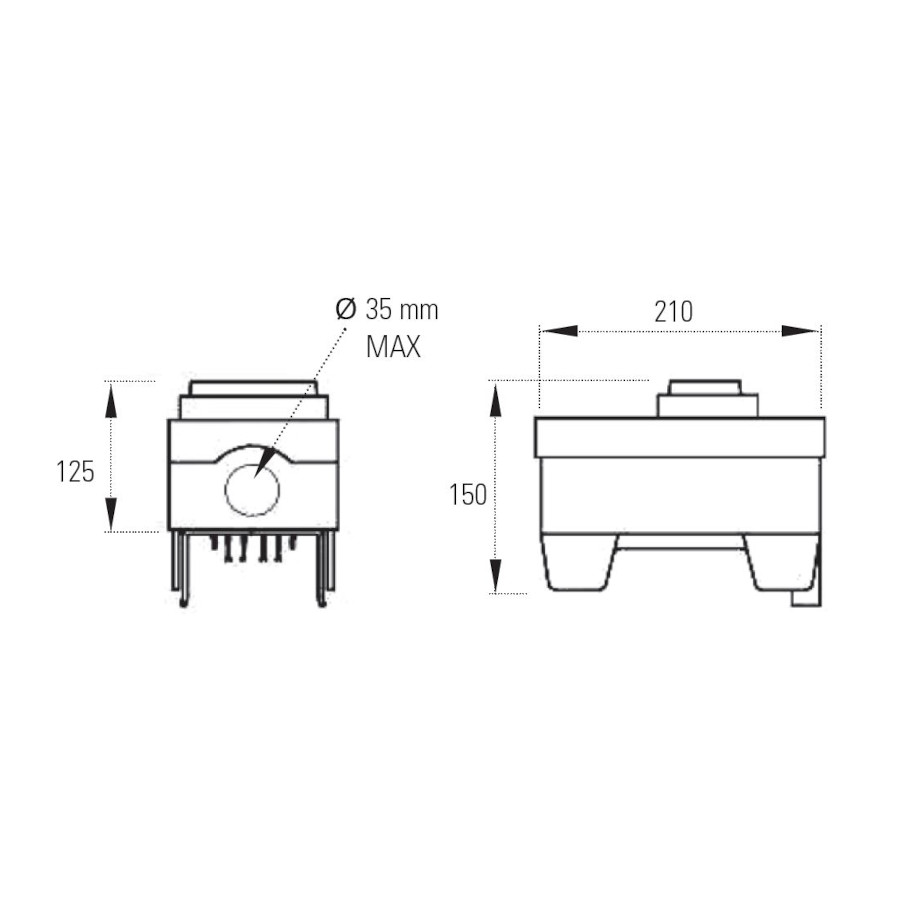

Tap off with closed cover and fuse holder - 32A
