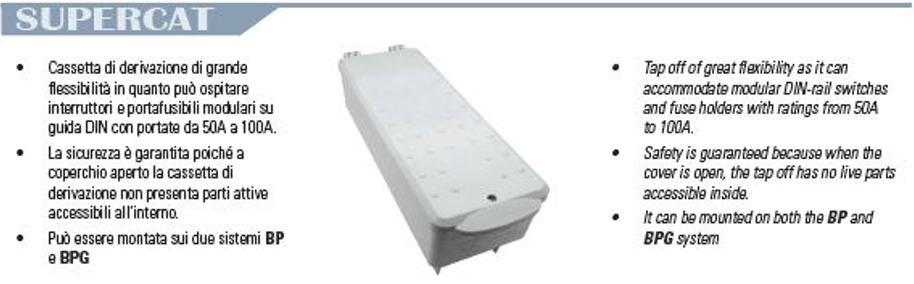

Tap off with closed cover and fuse holder - 100A
Weight Technical Info Code
[Kg/pcs] In (A) Terminal block Fuse holder No.Poles
2.85 100A 35mm²max. 22 x 58 3P+N+PE SU PER CAT100F

To request boxes with higher ratings or for special applications, contact ZAMET to determine the feasibility, suitability and characteristics of the same.
The taps off, with fuse holders, are equipped with three-pole (through neutral) fuse holders.
The fuses are NOT provided.

In accordance to:

CEI EN 61439-6 / IEC 61439-6

Example of installation of SUPERCAT-type tap off

Tap off with closed cover and fuse holder - 100A
