Tap off with closed cover and DIN rail - 100A
Weight Technical Info Code
[Kg/pcs] In (A) DIN guide Terminal block No.Poles
2.4 100A 8 moduli 35mm²max. 3P+N+PE SUP ERCA T100DC8

To request boxes with higher ratings or for special applications, contact ZAMET to determine the feasibility, suitability and characteristics of the same.
The taps off, with fuse holders, are equipped with three-pole (through neutral) fuse holders.
The fuses are NOT provided.

In accordance to:

CEI EN 61439-6 / IEC 61439-6

Example of installation of SUPERCAT-type tap off

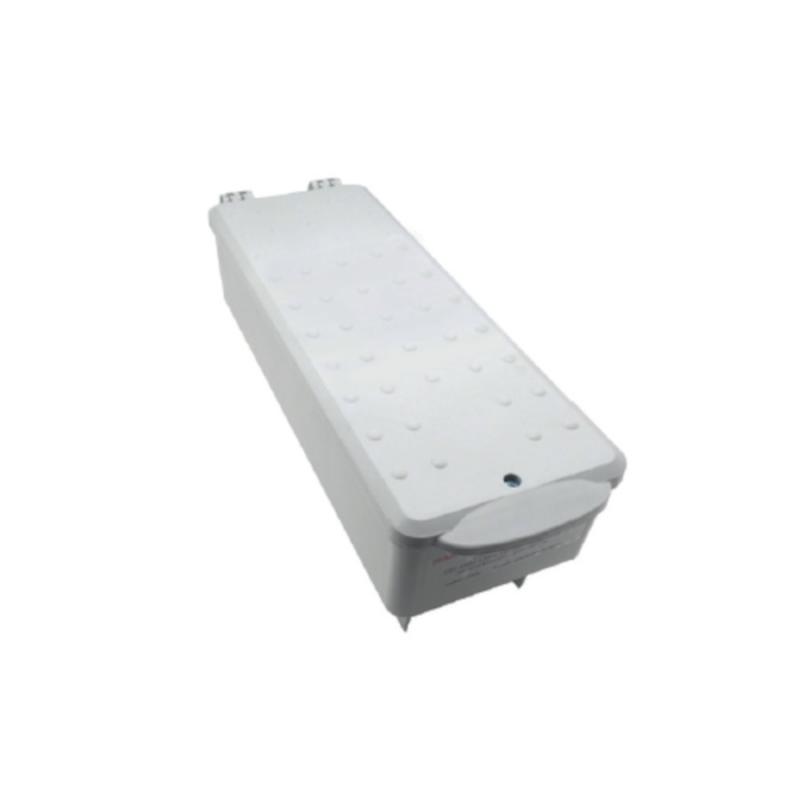

Tap off with closed cover and DIN rail - 100A
