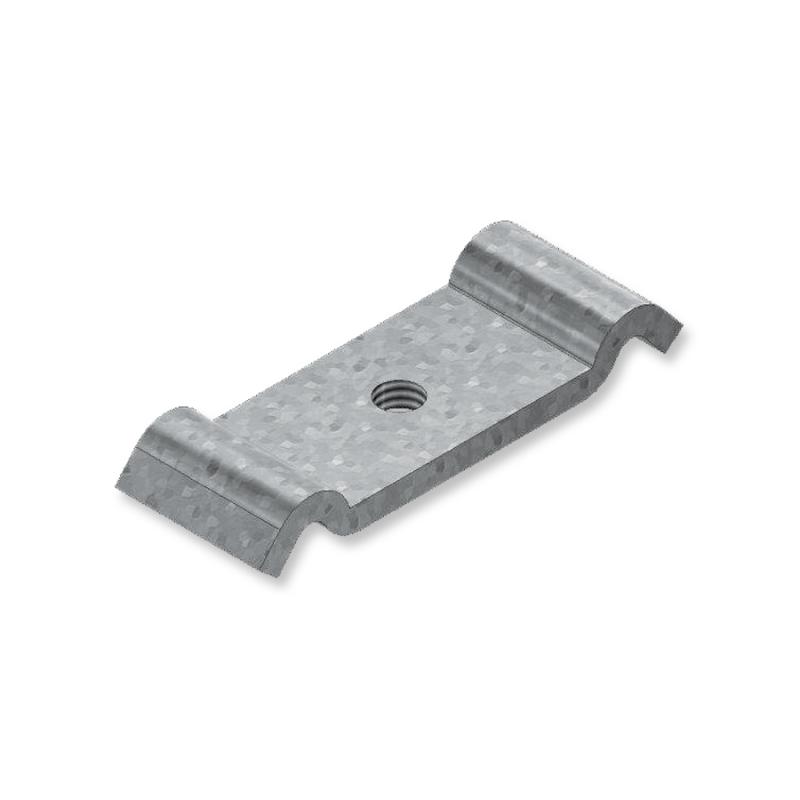

Anchor clamp for separator

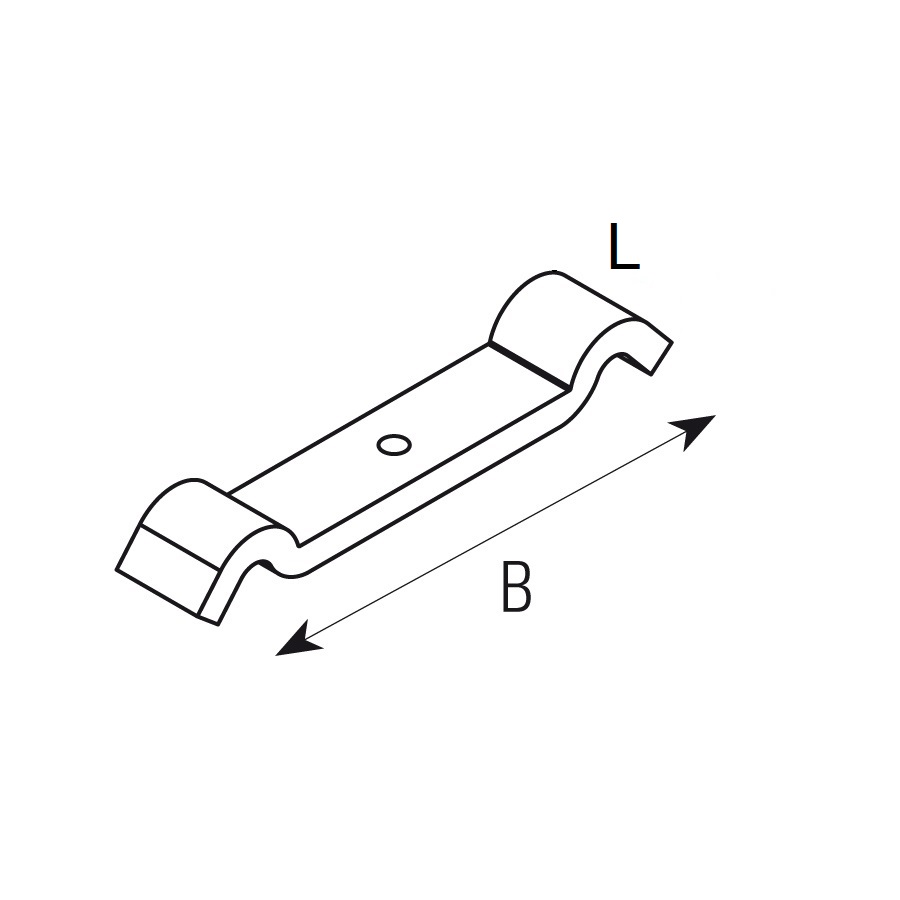

Dimension brush Thickness Weight Hole Ø Wheelbase Code
W (B) L [mm] [Kg] [mm] [mm]
53 18 3,00 0,02 6 ** 40 H0 114 0000
53 18 3,00 0,02 7 *** 40 H0 114 0001
43 18 3,00 0,02 7 *** 30 H0 114 3030

* Basket tray mesh spacing
** Threaded hole
*** Non threaded hole

List of Coatings
brush
01 Galvanization (Sendzimir method) - UNI EN 10346
73 Stainless steel AISI 430 - UNI EN 10088

For H0 114 0000: n°1 M6x12 M0 560 0612 threaded - Not included

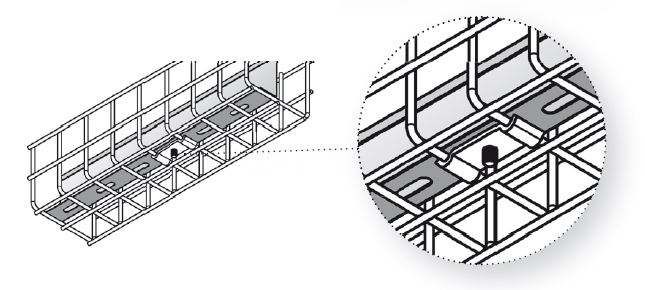

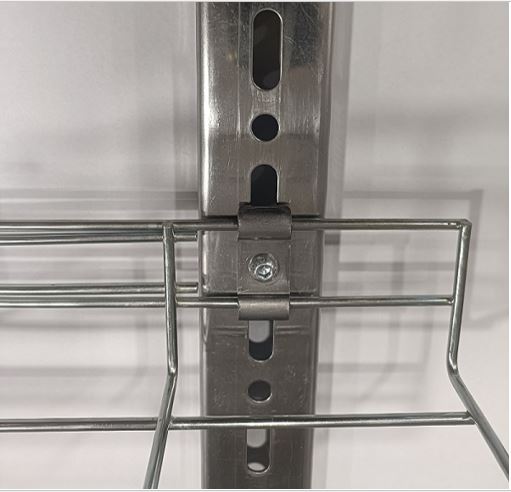

H0 114 3030: for basket tray H.60 and H.100 ZR System - Lateral fixing

Anchor clamp for separator
