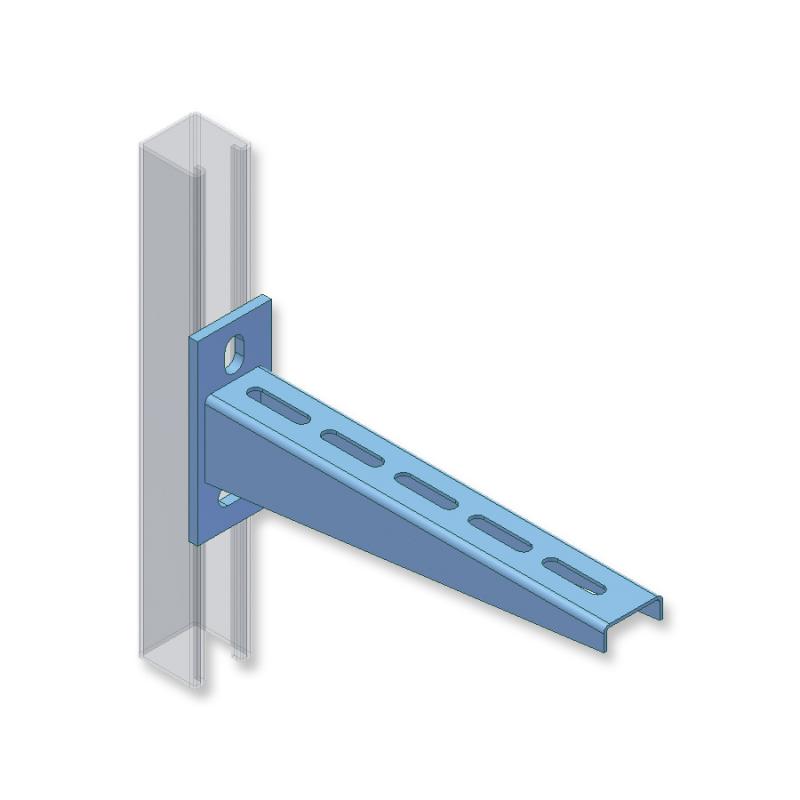

Slotted bracket

For highway and railway applications use:
- Aisi 304 - 316L stainless steel (treatment indicated as 40 - 41)

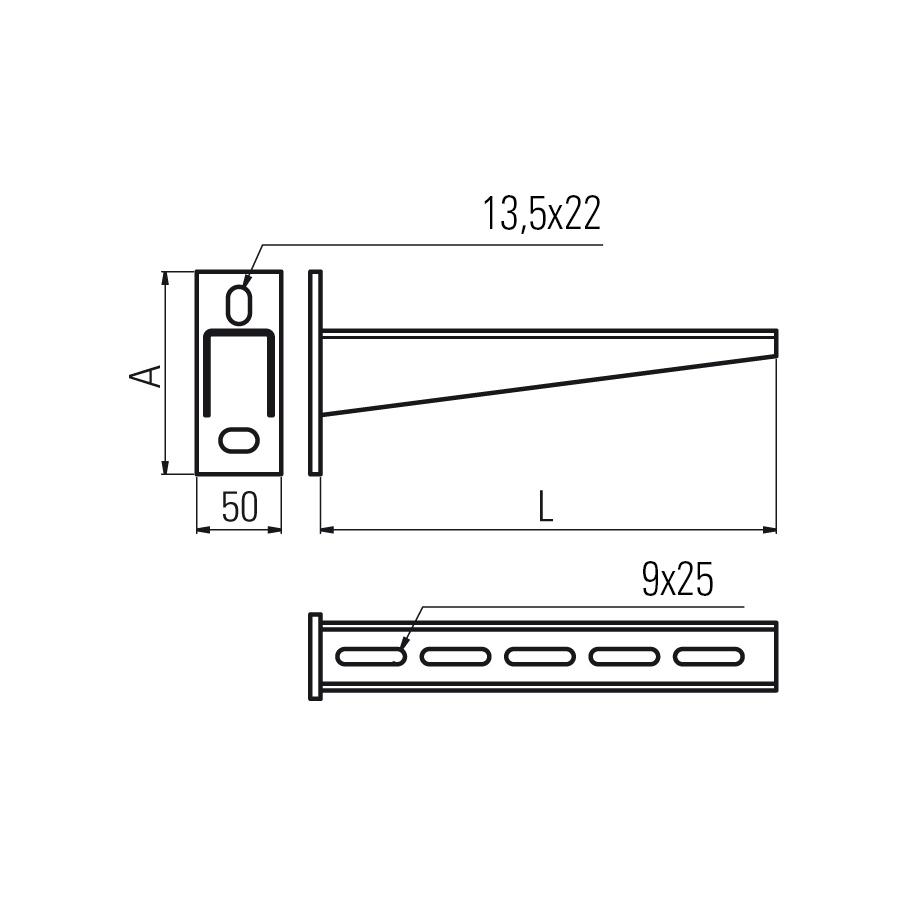

Dimension brush Thickness Technical Info Capacity Weight (25) Plate th Code
W cable tray L (*) [mm] A (*) Bracket base slot spacing [Kg] [Kg] [mm]
100 120 1,50 120 93,25 600 0,33 6 F0 756 0012
150 170 1,50 120 93,25 500 0,40 6 F0 756 0015
200 220 1,50 120 93,25 450 0,54 6 F0 756 0020
300 320 1,50 120 93,25 350 0,75 6 F0 756 0030
400 420 1,50 160 93,25 300 0,97 6 F0 756 0040
500 520 1,80 160 93,25 300 1,50 8 F0 756 0050
600 620 1,80 160 93,25 250 1.60 8 F0 756 0060

L (*) - A (*): approximate dimensions

Bolts recommended for assembly on section bars:
- M10 o M12 (F0 806 + T0 623 + T0 650)
- M10 o M12 (F0 816 + T0 624)

List of Coatings
brush
03 Hot dip galvanizing - UNI EN ISO 1461
25 Electrogalvanization - DIN 50962
40 Stainless steel AISI 304 - UNI EN 10088
41 Stainless steel AISI 316L - UNI EN 10088

Safety coefficient for brackets: 2,5

Slotted bracket
